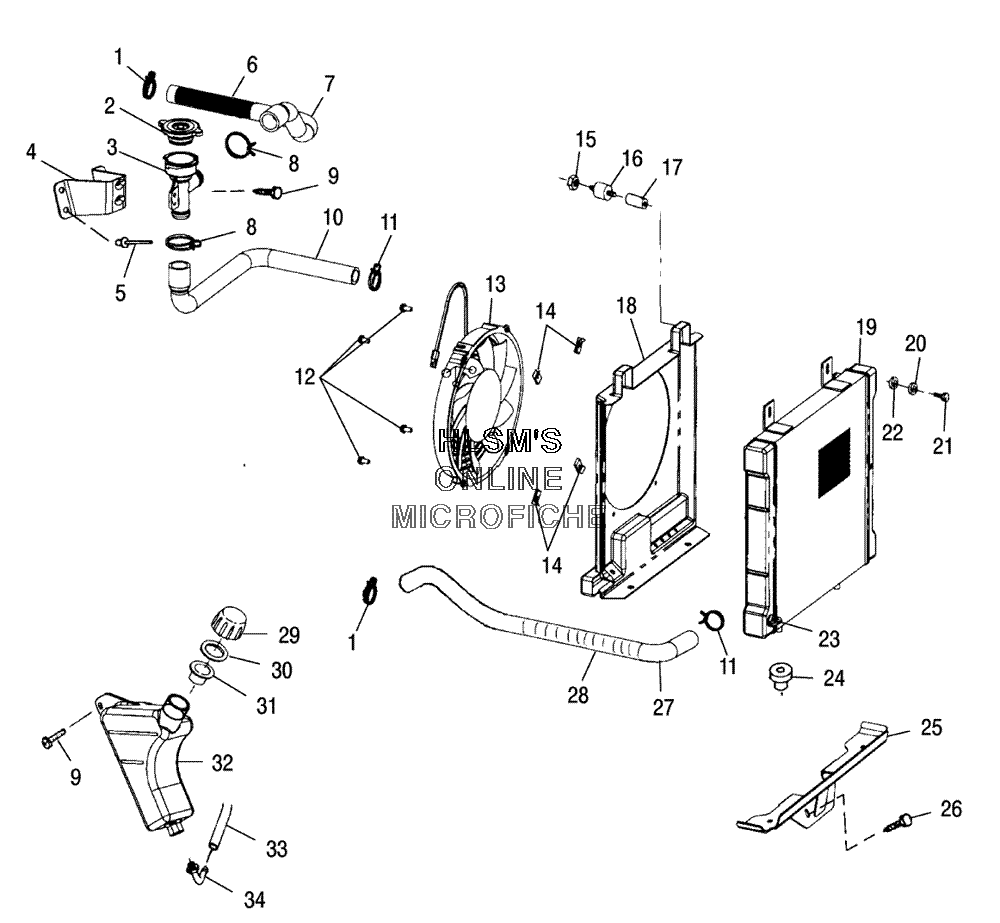

COOLING SYSTEM для Polaris SPORTSMAN 6X6 (A05CL50AA) - 2005 года выпуска
-
№АртикулНазвание
-
17080614 CLAMP, HOSECLAMP, HOSE
-
21240044 CAP PRESSURE, 13 PSICAP PRESSURE, 13 PSI
-
35433364 FILLER REMOTE COOLANTFILLER REMOTE COOLANT
-
45243505 BRACKET REMOTE COOLANT FILL PLATEDBRACKET REMOTE COOLANT FILL PLATED
-
57661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
65433948 FLEXGUARD PLASTIC GUARDFLEXGUARD PLASTIC GUARD
-
75411811 HOSE, ENGINE (UPPER)HOSE, ENGINE (UPPER)
-
87080827 CLAMP ROTO SPRING (1")CLAMP ROTO SPRING (1")
-
97512084 SCREWSCREW
-
105411632 HOSE, FILLER NECKHOSE, FILLER NECK
-
117080826 CLAMP ROTO CLIPCLAMP ROTO CLIP
-
127517659 SCREWSCREW
-
132410430 FAN AND MOTOR ASSY, SPALFAN AND MOTOR ASSY, SPAL
-
147670111 CLIP UCLIP U
-
157547069 NUTSERT, HEXAGONNUTSERT, HEXAGON
-
163110032 MOUNT, RUBBERMOUNT, RUBBER
-
175020572 SPACER, MOUNTSPACER, MOUNT
-
185433059 SHROUD FANSHROUD FAN
-
191240178 RADIATORRADIATOR
-
207552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
217512240 BOLTBOLT
-
227558301 WASHER, FLATWASHER, FLAT
-
237052296 VALVE PLASTIC DRAINVALVE PLASTIC DRAIN
-
235411633 VALVE PLASTIC DRAINVALVE PLASTIC DRAIN
-
245410584 BUSHING MOUNT, RADIATOR (LOWER)BUSHING MOUNT, RADIATOR (LOWER)
-
255243503-067 BRACKET, RADIATOR (LOWER/BLACK)BRACKET, RADIATOR (LOWER/BLACK)
-
267512232 BOLTBOLT
-
275411694 HOSE, ENGINE (LOWER)HOSE, ENGINE (LOWER)
-
285521511 GUARD HOSE (12")GUARD HOSE (12")
-
295430743 CAP, OVERFLOWCAP, OVERFLOW
-
305810279 GASKETGASKET
-
315433774 CAP, PLUG9X FLEX TEMP (GREEN)CAP, PLUG9X FLEX TEMP (GREEN)
-
325433410 TANK, SURGETANK, SURGE
-
338450003-1525 LINE, FUEL (1/4 ID) (1525 CM)LINE, FUEL (1/4 ID) (1525 CM)
-
347052065 FITTING, 90DEGFITTING, 90DEG
