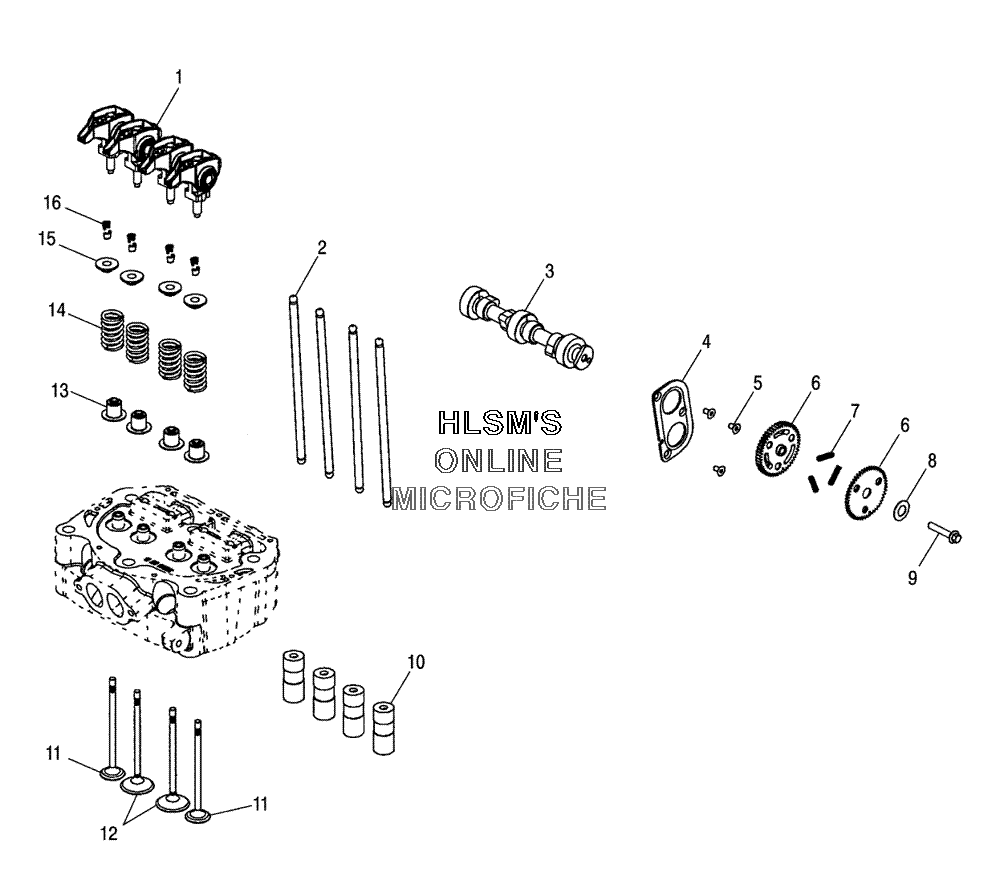

CAMSHAFT W/ VALVE ASSY. для Polaris SPORTSMAN MV7 (A05MH68AP) - 2005 года выпуска
-
№АртикулНазвание
-
11202169 ROCKER ARM ASSYROCKER ARM ASSY
-
25132402 PUSHRODPUSHROD
-
32202693 CAMSHAFT KIT (INCL. 10)CAMSHAFT KIT (INCL. 10)
-
45244286 PLATE THRUSTPLATE THRUST
-
57517598 SCREWSCREW
-
61202735 GEAR, SET KIT (INCL. 7)GEAR, SET KIT (INCL. 7)
-
77041999 SPRNG COMPRESSIONSPRNG COMPRESSION
-
87556183 WASHER SPRINGWASHER SPRING
-
97517865 SCREW HEXAGONSCREW HEXAGON
-
105134152 LIFTER VALVE HYDRAULICLIFTER VALVE HYDRAULIC
-
115133363 VALVE EXHAUST HI TEMP (35MM)VALVE EXHAUST HI TEMP (35MM)
-
125132696 VALVE INTAKE (35MM)VALVE INTAKE (35MM)
-
135411895 SEAL VALVE GUIDESEAL VALVE GUIDE
-
147041565 SPRING VALVESPRING VALVE
-
155131413 RETAINER SPRINGRETAINER SPRING
-
165910042 RETAINER, LOCK VALVE STEMRETAINER, LOCK VALVE STEM
