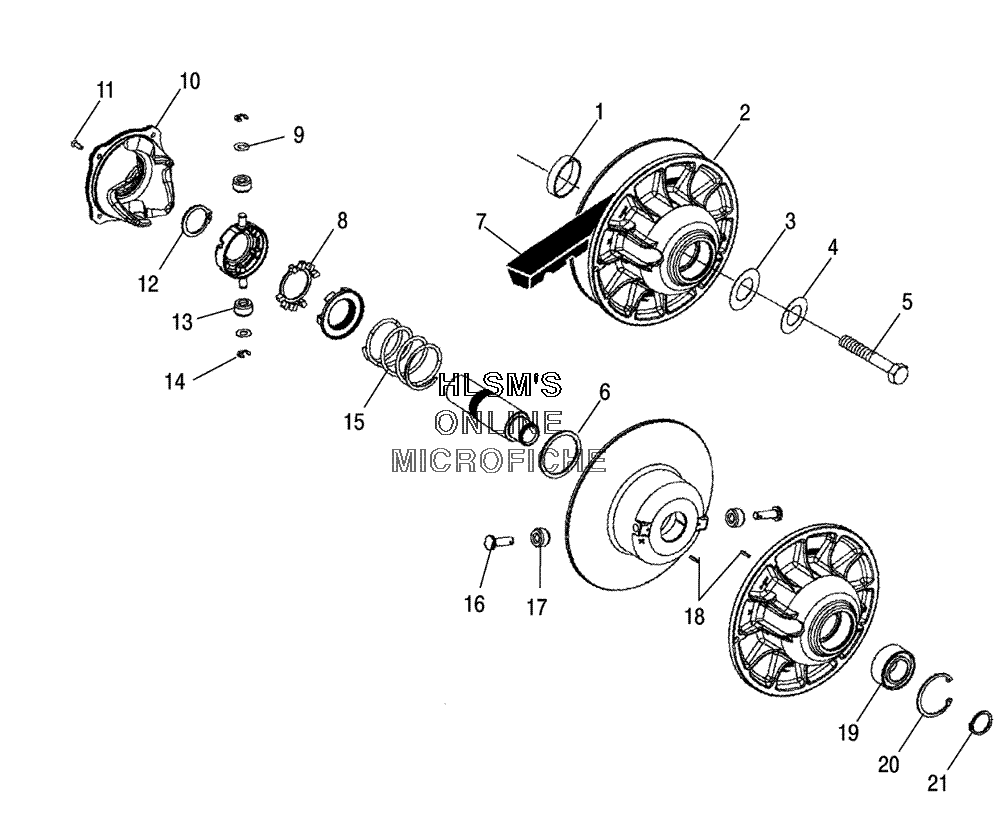

CLUTCH - DRIVEN для Polaris SPORTSMAN MV7 (A05MH68AP) - 2005 года выпуска
-
№АртикулНазвание
-
17556120 BUSHINGBUSHING
-
21322419 CLUTCH, DRIVEN EBS DAMPED ASSY (INCL. 3-5, 15, 19) (IF BUILT BEFORE 2/08/05)CLUTCH, DRIVEN EBS DAMPED ASSY (INCL. 3-5, 15, 19) (IF BUILT BEFORE 2/08/05)
-
21322551 CLUTCH, DRIVEN EBS DAMPED ASSY (INCL. 3-5, 15, 19) (IF BUILT AFTER 2/08/05)CLUTCH, DRIVEN EBS DAMPED ASSY (INCL. 3-5, 15, 19) (IF BUILT AFTER 2/08/05)
-
35248227 WASHER DOMED SMALLWASHER DOMED SMALL
-
47552901 WASHER SPRING LOCKWASHER SPRING LOCK
-
57515382 BOLTBOLT
-
63234200 WASHER THRUSTWASHER THRUST
-
73211091 BELT DRIVEBELT DRIVE
-
83234206 DAMPENER, SPIDERDAMPENER, SPIDER
-
87710564 RETAINER SPRING (INNER)RETAINER SPRING (INNER)
-
93234196 WASHER THRUSTWASHER THRUST
-
97556226 WASHER THRUSTWASHER THRUST
-
103234208 CAM ASSYCAM ASSY
-
113234192 SCREW, CAP TORXSCREW, CAP TORX
-
123234194 RET. RING EXTENSIONRET. RING EXTENSION
-
127710522 RET.RING EXTENSIONRET.RING EXTENSION
-
133234207 ROLLER CLUTCHROLLER CLUTCH
-
143234195 RET E-RINGRET E-RING
-
147710523 RET.E-RINGRET.E-RING
-
153234199 SPRING, COMPRESSION (WHITE/YELLOW)SPRING, COMPRESSION (WHITE/YELLOW)
-
163234201 PIN ROLLERPIN ROLLER
-
173234197 ROLLER CLUTCHROLLER CLUTCH
-
183234202 PIN SPRING SLOTTEDPIN SPRING SLOTTED
-
193234205 RING RETAININGRING RETAINING
-
203234204 RING RETAINING BSC INTERNALRING RETAINING BSC INTERNAL
-
213234203 BEARING, BALL ANGULAR CONTACTBEARING, BALL ANGULAR CONTACT
