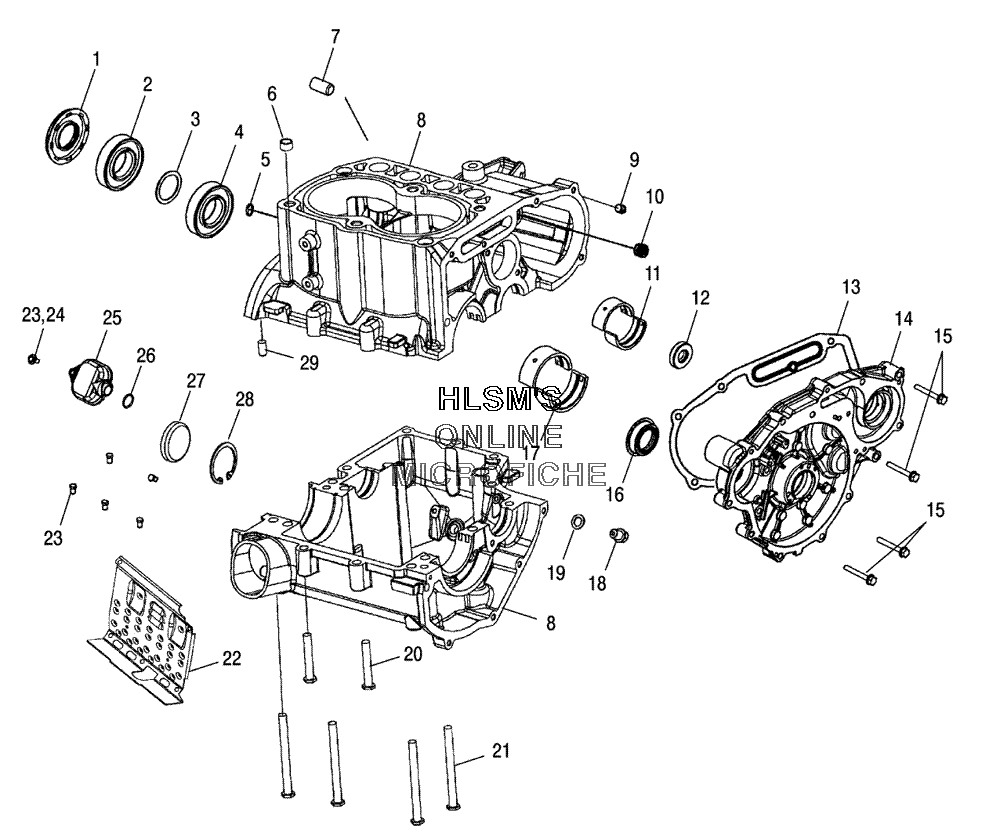

CRANKCASE для Polaris SPORTSMAN MV7 (A05MH68AP) - 2005 года выпуска
-
№АртикулНазвание
-
15412114 SEAL FLANGESEAL FLANGE
-
23514361 BEARING BALLBEARING BALL
-
37556194 BUSHINGBUSHING
-
43514318 BEARING BALLBEARING BALL
-
57051530 PLUG EXPANSION (19MM)PLUG EXPANSION (19MM)
-
67661175 DOWEL HOLDOWEL HOL
-
77518007 PLUG HEXAGON SOCKETPLUG HEXAGON SOCKET
-
81202894 CRANKCASE, KIT (INCL.18-26)CRANKCASE, KIT (INCL.18-26)
-
97051531 PLUG, EXPANSION (9MM)PLUG, EXPANSION (9MM)
-
107052288 GUIDEGUIDE
-
115132753 BEARING JOURNAL BAL SHAFTBEARING JOURNAL BAL SHAFT
-
125412455 SEAL OILSEAL OIL
-
135812511 GASKET COVER, MAGGASKET COVER, MAG
-
141200002 COVER ENGINE MAG KITCOVER ENGINE MAG KIT
-
157517950 SCREW HEXAGONSCREW HEXAGON
-
165412677 SEAL FLANGEDSEAL FLANGED
-
173585704 BEARING, MAIN JOURNALBEARING, MAIN JOURNAL
-
187052306 PLUG SOCKETPLUG SOCKET
-
195812232 WASHER COPPERWASHER COPPER
-
207517793 SCREW HEXAGONSCREW HEXAGON
-
217517792 SCREW HEXAGONSCREW HEXAGON
-
225211785 PLATE BAFFLE CRANKCASEPLATE BAFFLE CRANKCASE
-
237518045 SCREW HEXAGONSCREW HEXAGON
-
247516603 BOLTBOLT
-
251202663 OIL PICKUP ASSYOIL PICKUP ASSY
-
265812016 SEAL O-RINGSEAL O-RING
-
273060004 PLUG EXPANSION (48MM)PLUG EXPANSION (48MM)
-
287710512 RING RETAININGRING RETAINING
-
297663001 PIN, DOWELPIN, DOWEL
