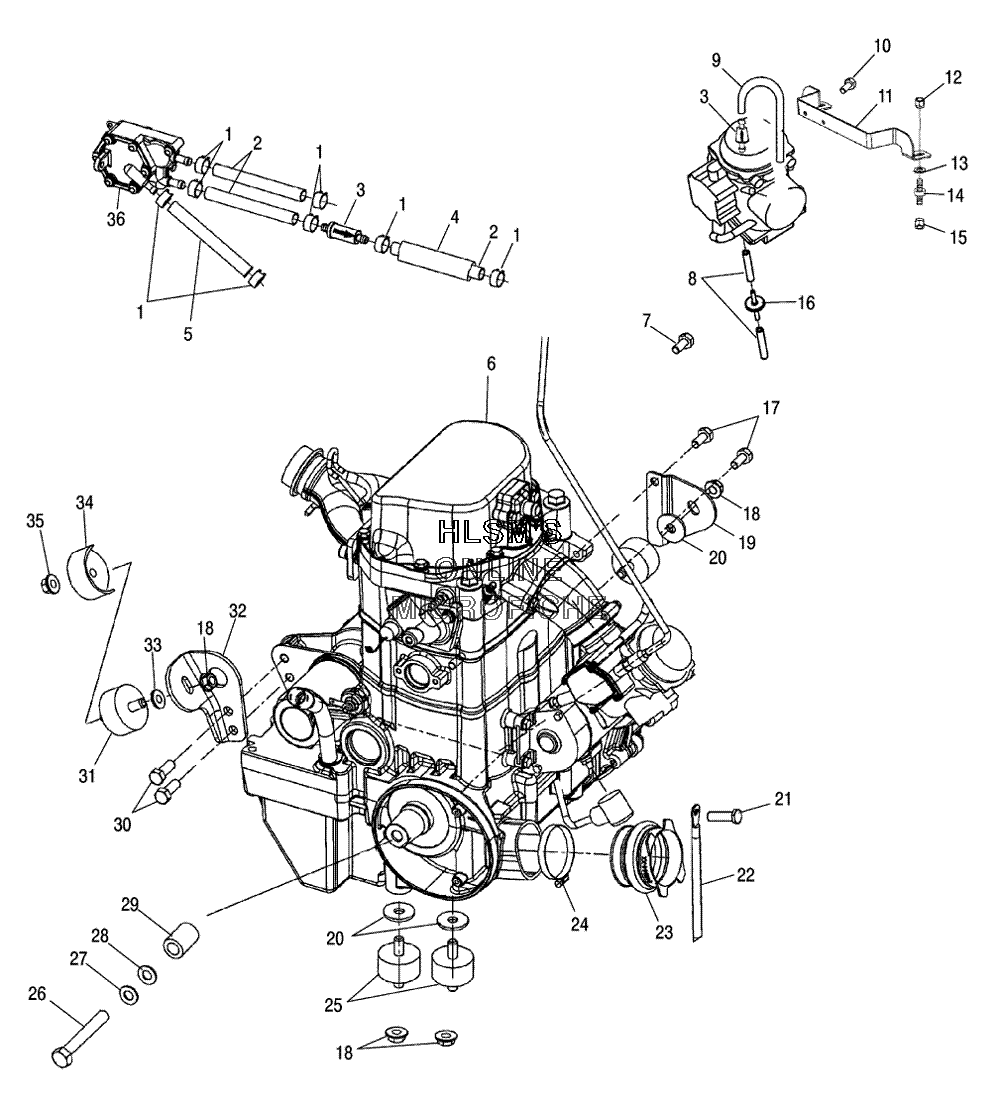

MOUNTING - ENGINE для Polaris SPORTSMAN MV7 (A05MH68AP) - 2005 года выпуска
-
№АртикулНазвание
-
17080003 CLAMP HOSECLAMP HOSE
-
28450103 LINE, FUEL 1/4" DP SAELINE, FUEL 1/4" DP SAE
-
32530009 FILTER SMALL IN LINEFILTER SMALL IN LINE
-
48450105-33 SHEATH, FOILSHEATH, FOIL
-
58450040-600 LINE FUEL (1/4 ID, 600 CM)LINE FUEL (1/4 ID, 600 CM)
-
62202698 SHORT BLOCK 700 ATV KIT (SEE NOTE)SHORT BLOCK 700 ATV KIT (SEE NOTE)
-
77517386 SCREWSCREW
-
88360009-600 LINE FUEL (1/8 ID, 600 CM)LINE FUEL (1/8 ID, 600 CM)
-
95412287 HOSE FORMED, VENTHOSE FORMED, VENT
-
107517867 SCREWSCREW
-
115247141 BRACKET CARB MOUNT PLATEDBRACKET CARB MOUNT PLATED
-
127542105 NUT HEXAGONNUT HEXAGON
-
137558203 WASHERWASHER
-
143110050 MOUNT CARBURETORMOUNT CARBURETOR
-
157542143 INSERTINSERT
-
167051011 VALVE CHECKVALVE CHECK
-
177516734 SCREWSCREW
-
187547263 NUT NYLOKNUT NYLOK
-
195247368 BRACKET MOUNT ENGINE TOP PLATEDBRACKET MOUNT ENGINE TOP PLATED
-
207555815 WASHER FLATWASHER FLAT
-
217517868 BOLT HEXAGON HEAD SEMSBOLT HEXAGON HEAD SEMS
-
224011139 CABLE (BLACK) (BATTERY/FRAME)CABLE (BLACK) (BATTERY/FRAME)
-
235411944 BOOT CLUTCH INTAKE (IF BUILT BEFORE 11/15/04)BOOT CLUTCH INTAKE (IF BUILT BEFORE 11/15/04)
-
235412634 BOOT CLUTCH INTAKE (IF BUILT AFTER 11/15/04)BOOT CLUTCH INTAKE (IF BUILT AFTER 11/15/04)
-
247080451 CLAMP HOSECLAMP HOSE
-
253021119 MOUNT, RUBBER (REAR)MOUNT, RUBBER (REAR)
-
267518197 BOLTBOLT
-
277575202 WASHER LOCKWASHER LOCK
-
285210748 WASHERWASHER
-
295430261 BUSHINGBUSHING
-
307518364 BOLT HEXAGON FLANGEBOLT HEXAGON FLANGE
-
313110044 MOUNT, RUBBER TOPMOUNT, RUBBER TOP
-
325244771-067 MOUNT ENGINE (LOWER/FRONT/BLACK)MOUNT ENGINE (LOWER/FRONT/BLACK)
-
337555823 WASHERWASHER
-
345245043 BRACKET TORQUE STOP PLATEDBRACKET TORQUE STOP PLATED
-
357547108 NUTNUT
-
362520227 FUEL PUMP, ASSYFUEL PUMP, ASSY
