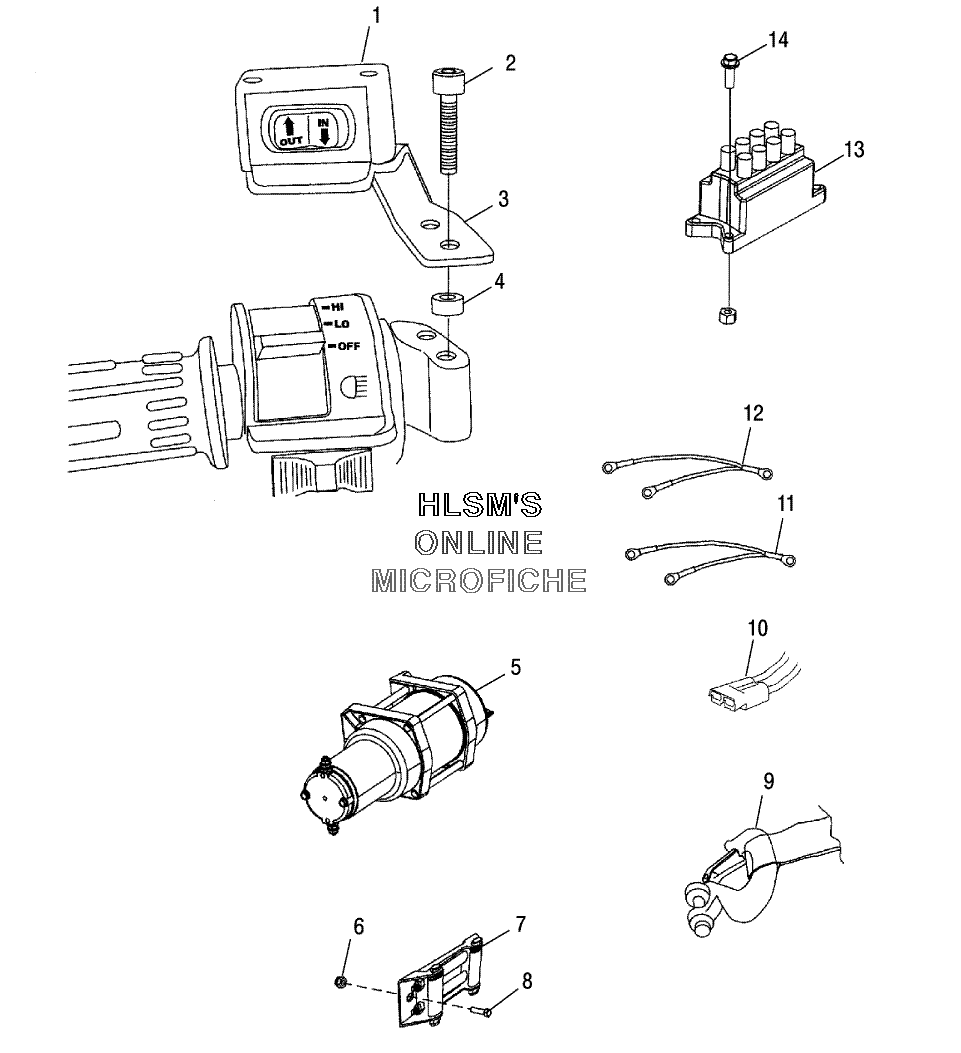

WINCH ASSY для Polaris SPORTSMAN MV7 (A05MH68AP) - 2005 года выпуска
-
№АртикулНазвание
-
14011154 SWITCH HANDLEBAR WINCHSWITCH HANDLEBAR WINCH
-
27518304 SCREW HEXAGON SOCSCREW HEXAGON SOC
-
35247139 MOUNTING BRACKETMOUNTING BRACKET
-
45133010 SPACERSPACER
-
52871465 CABLE WINCH (50 FT)CABLE WINCH (50 FT)
-
67542451 NUT NYLOKNUT NYLOK
-
72871462 ROLLER FAIRLEAD (FOR WARN WINCH)ROLLER FAIRLEAD (FOR WARN WINCH)
-
87515494 BOLT (BLACK)BOLT (BLACK)
-
92202253 HOOK WINCH SPRING SNAPHOOK WINCH SPRING SNAP
-
104011168 HARNESS MULTI MOUNT (BLUE/YELLOW)HARNESS MULTI MOUNT (BLUE/YELLOW)
-
114011167 CABLE POWER (RED)CABLE POWER (RED)
-
124011166 CABLE GROUND (BLACK)CABLE GROUND (BLACK)
-
132202254 CONTACTOR, REPLCEMENT FOR 2.5 CICONTACTOR, REPLCEMENT FOR 2.5 CI
-
147517312 SCREWSCREW
