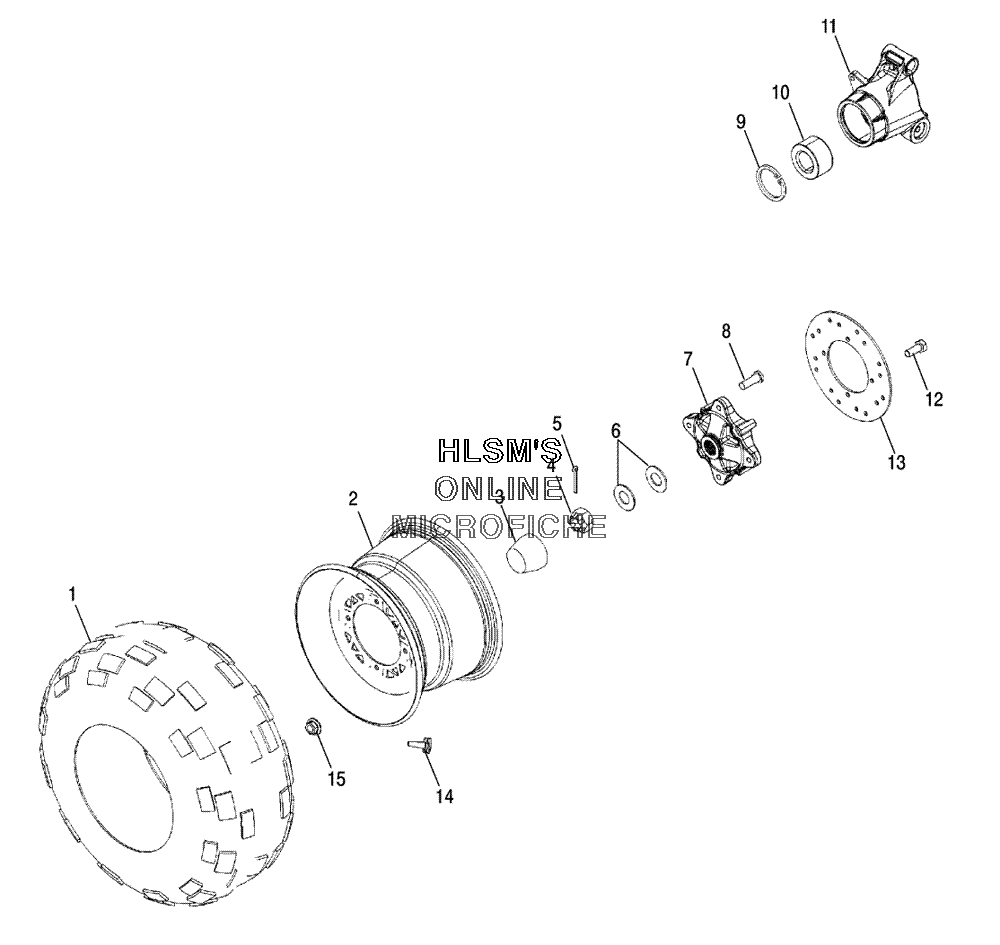

WHEEL - REAR для Polaris SPORTSMAN MV7 (A05MH68AP) - 2005 года выпуска
-
№АртикулНазвание
-
12873443 TIRE, MUD RUNNER RUN FLATTIRE, MUD RUNNER RUN FLAT
-
21520797-463 WELD RIM, 12X8 10GA (REAR/BLACK)WELD RIM, 12X8 10GA (REAR/BLACK)
-
35411164 COVER DUST HUBCOVER DUST HUB
-
47543005 NUT CASTLENUT CASTLE
-
57661404 PIN COTTERPIN COTTER
-
67555796 WASHER CONEWASHER CONE
-
75134311 HUB WHEEL MACH (REAR)HUB WHEEL MACH (REAR)
-
87515513 STUDSTUD
-
97710440 RING RETAININGRING RETAINING
-
103585502 BEARINGBEARING
-
127512325 BOLTBOLT
-
135244635 DISC, BRAKE (REAR)DISC, BRAKE (REAR)
-
141525017 VALVE RIMVALVE RIM
-
157547237 NUT, FLANGE TWO PIECENUT, FLANGE TWO PIECE
