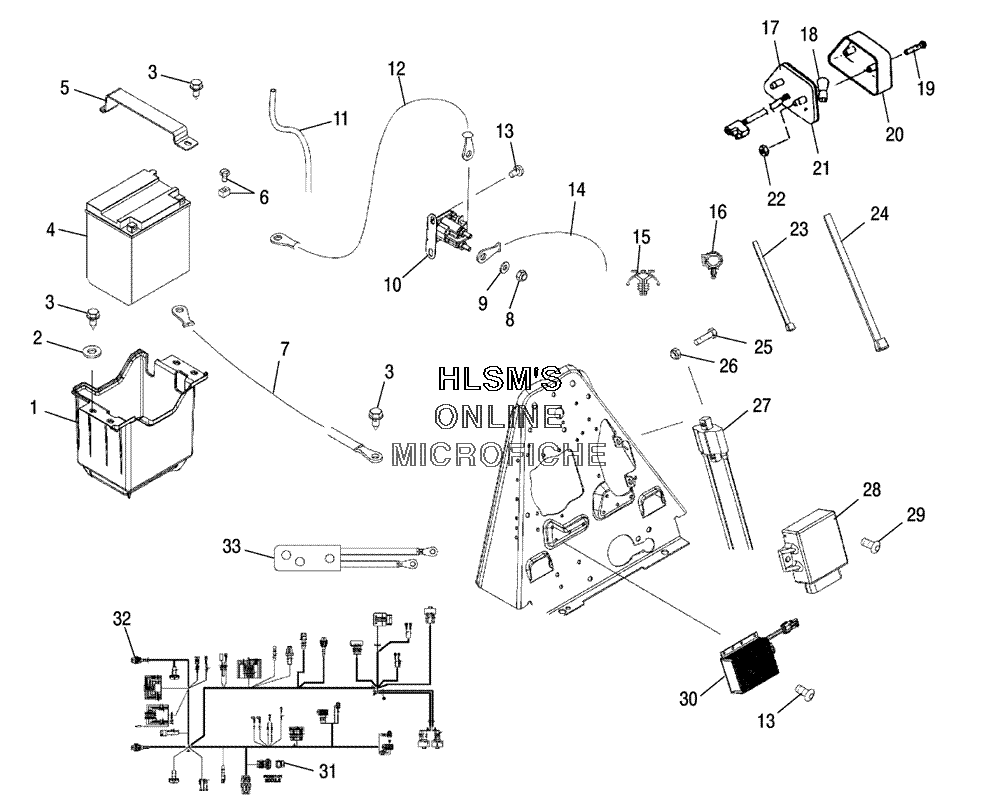

ELECTRICAL COMPONENTS для Polaris SPORTSMAN MV7 (A05MH68AP) - 2005 года выпуска
-
№АртикулНазвание
-
15435696 BOX BATTERYBOX BATTERY
-
27555859 WASHER FLATWASHER FLAT
-
37512232 BOLTBOLT
-
44010630 BATTERY 30 AMP, TOP MOUNTBATTERY 30 AMP, TOP MOUNT
-
55247376 STRAP BATTERY, HOLD DOWN (30 AMP)STRAP BATTERY, HOLD DOWN (30 AMP)
-
62202099 BATTERY BOLT KIT (30AH)BATTERY BOLT KIT (30AH)
-
74011139 CABLE (BLACK) (BATTERY/FRAME)CABLE (BLACK) (BATTERY/FRAME)
-
87547283 NUT HEXAGON JAMNUT HEXAGON JAM
-
97552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
104011072 SWITCH MAGNETICSWITCH MAGNETIC
-
104011251 SWITCH MAGNETIC (IF BUILT AFTER 1/10/05)SWITCH MAGNETIC (IF BUILT AFTER 1/10/05)
-
115432077 TUBE, VENTTUBE, VENT
-
124010471 CABLE, BATTERY/SOLENOID (RED)CABLE, BATTERY/SOLENOID (RED)
-
137512024 SCREWSCREW
-
144010376 CABLE, SOLENOID/STATER (.25")CABLE, SOLENOID/STATER (.25")
-
157080965 MOUNT CABLE TIEMOUNT CABLE TIE
-
164020139 CLIP ROSEBUDCLIP ROSEBUD
-
174032045 GASKETGASKET
-
184030043 BULBBULB
-
194032029 SCREWSCREW
-
204032046 LENS TAILLIGHTLENS TAILLIGHT
-
214032064 BACKING TAILLIGHTBACKING TAILLIGHT
-
227670054 NUT PUSH ONNUT PUSH ON
-
237080138 CABLE TIECABLE TIE
-
247080492 CABLE TIE (11 INCH)CABLE TIE (11 INCH)
-
257512007 BOLTBOLT
-
267541925 NUT NYLOKNUT NYLOK
-
274010898 COIL IGNITION KOKCOIL IGNITION KOK
-
284011017 CONTROLLER IGNITIONCONTROLLER IGNITION
-
297512084 SCREWSCREW
-
304011044 CONTROLLER MODULE FAN REGCONTROLLER MODULE FAN REG
-
314010924 MODULE RESISTORMODULE RESISTOR
-
322410556 HARNESS MAIN, SPORTSMAN 700 CMVHARNESS MAIN, SPORTSMAN 700 CMV
-
332410535 HARNESS WINCH, PREWIREHARNESS WINCH, PREWIRE
-
332410320 TAILLIGHT, ASSY 12V (INCL. 17-22)TAILLIGHT, ASSY 12V (INCL. 17-22)
