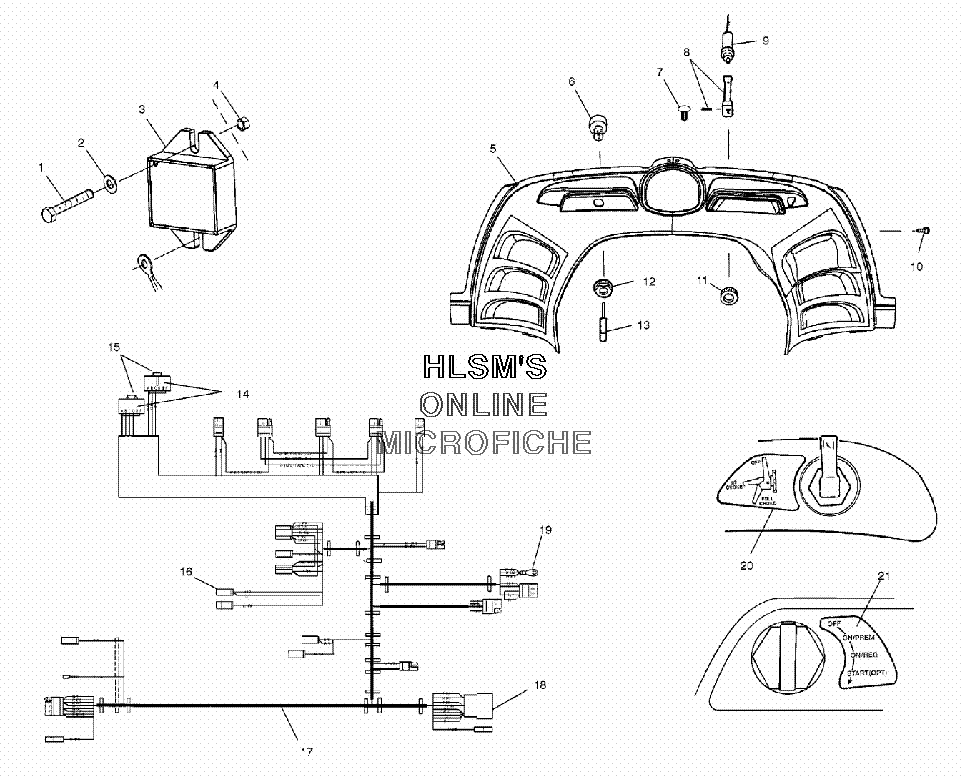

CONSOLE для Polaris 700 RMK F/O 144 BUILT BEFORE 3/1/01 (S02NK7CS) - 2002 года выпуска
-
№АртикулНазвание
-
17512031 BOLTBOLT
-
27555746 BURR, RIVETBURR, RIVET
-
34010301 REGULATOR, AC (14.3 V)REGULATOR, AC (14.3 V)
-
47541925 NUTNUT
-
55434134 CONSOLE EDGE, RMK, SRPCONSOLE EDGE, RMK, SRP
-
62201614 IGNITION SWITCH KIT, ES, FUELIGNITION SWITCH KIT, ES, FUEL
-
77670090 CLIP, PLASTIC DART, NYLONCLIP, PLASTIC DART, NYLON
-
85432943 CHOKE LEVER KIT [INCL. PIN]CHOKE LEVER KIT [INCL. PIN]
-
97080946 CABLE CHOKE, RACK, EDGE [INCL. 8, 11]CABLE CHOKE, RACK, EDGE [INCL. 8, 11]
-
107515199 SCREWSCREW
-
115432944 NUT, CHOKENUT, CHOKE
-
127547035 NUT, IGNITIONNUT, IGNITION
-
135410611 IGNITION KEYIGNITION KEY
-
144010192 SOCKET PACKARD #12047767SOCKET PACKARD #12047767
-
154010193 HOUSING CONNECTOR, PAC #12186213HOUSING CONNECTOR, PAC #12186213
-
164020092 TERMINAL, RINGTERMINAL, RING
-
172460932 HARNESS MAIN, EDGEHARNESS MAIN, EDGE
-
184020057 HOUSING W/RECEPTACLEHOUSING W/RECEPTACLE
-
194020063 HOUSINGHOUSING
-
207170061 DECAL CHOKEDECAL CHOKE
-
217079509 DECAL IGNITION, TPSDECAL IGNITION, TPS
