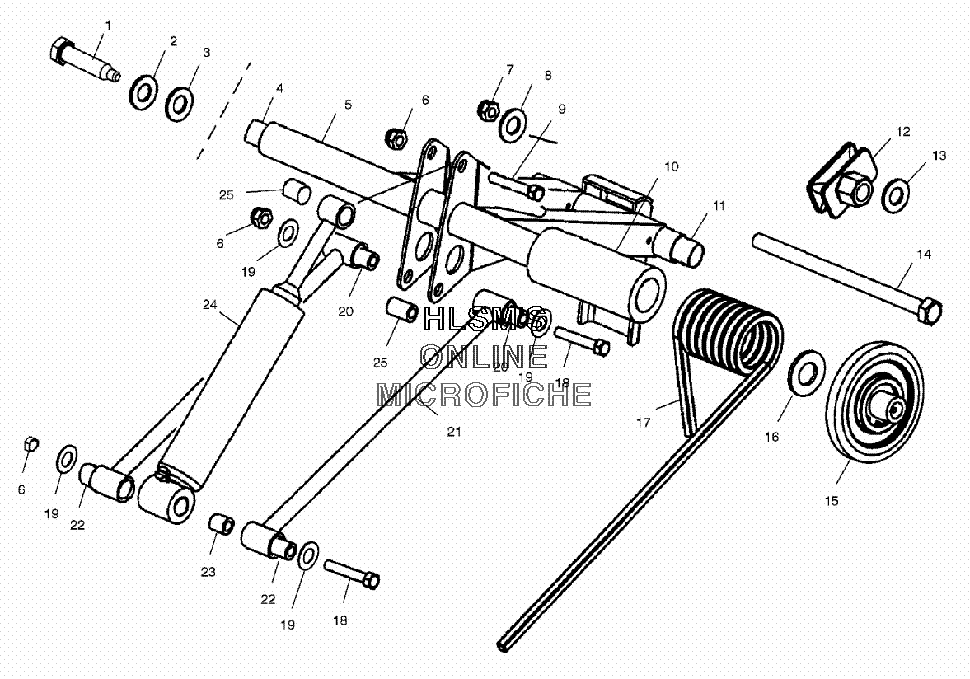

SUSPENSION - REAR TORQUE ARM ASSEMBLY для Polaris 700 RMK F/O 144 BUILT BEFORE 3/1/01 (S02NK7CS) - 2002 года выпуска
-
№АртикулНазвание
-
17517435 BOLTBOLT
-
27552603 WASHERWASHER
-
37555893 WASHERWASHER
-
45133165 SHAFT (.74X16.25)SHAFT (.74X16.25)
-
51541615-293 WELD REAR TORQUE ARM, REDWELD REAR TORQUE ARM, RED
-
51541615-216 WELD REAR TORQUE ARM, (YELLOW)WELD REAR TORQUE ARM, (YELLOW)
-
57080424 FITTING, LUBE.FITTING, LUBE.
-
67542411 NUT LOCKNUT LOCK
-
77547064 NUTNUT
-
87558402 WASHER STEELWASHER STEEL
-
97512410 BOLTBOLT
-
105434337 SLEEVE TORSION SPRING RMKSLEEVE TORSION SPRING RMK
-
115333997 SHAFT (.689X.334X5.220 ANNODIZE)SHAFT (.689X.334X5.220 ANNODIZE)
-
125432983 ROLLER, SPRING, ADJ, SQUARE, X10ROLLER, SPRING, ADJ, SQUARE, X10
-
137080394 CLIPCLIP
-
147517908 SCREW (5/16 24X6.00, HX/CP, GR5 Y)SCREW (5/16 24X6.00, HX/CP, GR5 Y)
-
151541285 WHEEL, CARRIER, W/COLLARWHEEL, CARRIER, W/COLLAR
-
167556301 MACHINERY BUSHINGMACHINERY BUSHING
-
177042068-067 SPRING TORSION .359/47 DEG. (LEFT) (BLACK)SPRING TORSION .359/47 DEG. (LEFT) (BLACK)
-
177042069-067 SPRING TORSION .359/47 DEG. (RIGHT) (BLACK)SPRING TORSION .359/47 DEG. (RIGHT) (BLACK)
-
177042079-067 SPRING TORSION, .375/47 DEG. (LEFT) (BLACK)SPRING TORSION, .375/47 DEG. (LEFT) (BLACK)
-
177042080-067 SPRING TORSION, .375/47 DEG. (RIGHT) (BLACK)SPRING TORSION, .375/47 DEG. (RIGHT) (BLACK)
-
177042081-067 SPRING TORSION, .347/47 DEG. (LEFT) (BLACK)SPRING TORSION, .347/47 DEG. (LEFT) (BLACK)
-
177042082-067 SPRING TORSION, .347/47 DEG. (RIGHT) (BLACK)SPRING TORSION, .347/47 DEG. (RIGHT) (BLACK)
-
187515496 BOLTBOLT
-
197555795 WASHER, WAVE SPRINGWASHER, WAVE SPRING
-
205133101 BUSHING (.378X.616X1.289)BUSHING (.378X.616X1.289)
-
211541631-067 WELD SHOCK ROD, 13" (BLACK)WELD SHOCK ROD, 13" (BLACK)
-
225132391 BUSHING (.378X.616X1.12)BUSHING (.378X.616X1.12)
-
235333905 SLEEVE, (.385X.560X1.24)SLEEVE, (.385X.560X1.24)
-
247042058 SHOCK RT, ARVIN, EDGE, RMK, SEL.SHOCK RT, ARVIN, EDGE, RMK, SEL.
-
255010422 BUSHINGBUSHING
