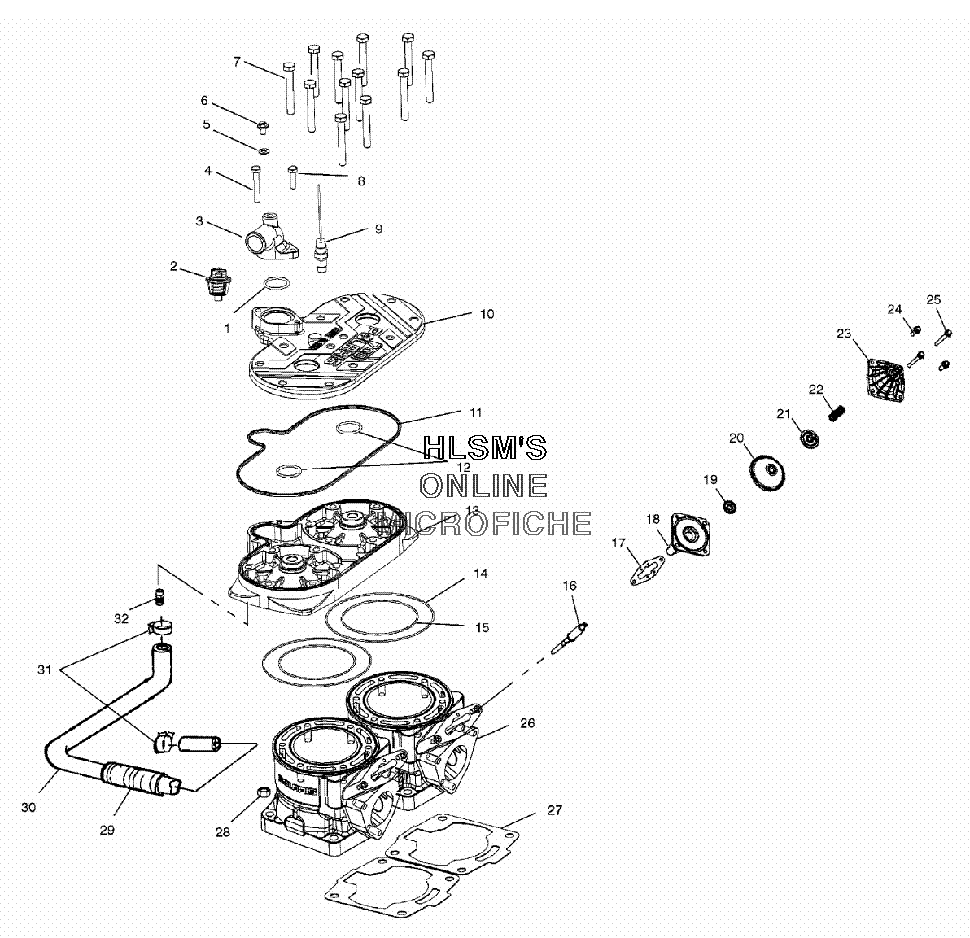

CYLINDER ASSEMBLY для Polaris 700 RMK F/O 144 BUILT BEFORE 3/1/01 (S02NK7CS) - 2002 года выпуска
-
№АртикулНазвание
-
15411521 O RING, LIPSEALO RING, LIPSEAL
-
27052258 THERMOSTAT 120 DEG.F W/O BYPASSTHERMOSTAT 120 DEG.F W/O BYPASS
-
35630992 COVER THERMOSTAT, M6 BLEED LGCOVER THERMOSTAT, M6 BLEED LG
-
47516818 SCREWSCREW
-
57555998 WASHER, FLATWASHER, FLAT
-
67517679 SCREWSCREW
-
77517534 SCREWSCREW
-
87516822 SCREWSCREW
-
94010398 SENSOR THERMISTER (ESX8477A)SENSOR THERMISTER (ESX8477A)
-
105631201-366 COVER HEAD (81MM) (700) (RED)COVER HEAD (81MM) (700) (RED)
-
115411294 SEAL, RUBBER, HEADSEAL, RUBBER, HEAD
-
125410917 O RINGO RING
-
133021210 HEAD CYLINDER, TWIN SNOW, EV (81MM)HEAD CYLINDER, TWIN SNOW, EV (81MM)
-
145410931 O-RINGO-RING
-
155410932 O-RINGO-RING
-
161202091 VALVE, GULLIOTINE (GEN 3.5) (700 EV)VALVE, GULLIOTINE (GEN 3.5) (700 EV)
-
175812350 GASKET BASE TO CYLINDER EXHAUST VALVEGASKET BASE TO CYLINDER EXHAUST VALVE
-
181202216 BASE EXHAUST VALVE ASSY DOMBASE EXHAUST VALVE ASSY DOM
-
195132950 WASHER BELLOWS, EXHAUST VALVE, DOMWASHER BELLOWS, EXHAUST VALVE, DOM
-
205412147 BELLOWS EXHAUST VALVE FABRICBELLOWS EXHAUST VALVE FABRIC
-
215631152 CAP/NUT, BELLOWS EXHAUST VALVE DOMCAP/NUT, BELLOWS EXHAUST VALVE DOM
-
227041704-02 SPRING, ORANGE (440 EV)SPRING, ORANGE (440 EV)
-
235434599 HOUSING BELLOWS EXHAUST VALVE BUSHHOUSING BELLOWS EXHAUST VALVE BUSH
-
247516820 SCREWSCREW
-
257517932 SCREWSCREW
-
263021203 CYLINDER (81MM)CYLINDER (81MM)
-
275811538 GASKET, CYLINDER BASEGASKET, CYLINDER BASE
-
287547013 NUTNUT
-
295521398-13 CONDUIT, FLEX (.75LD)CONDUIT, FLEX (.75LD)
-
305411536 HOSE, BYPASSHOSE, BYPASS
-
317081030 CLAMP BYPASS NORMA #24 15CLAMP BYPASS NORMA #24 15
-
327052222 FITTING, HOSE (1/2ID)FITTING, HOSE (1/2ID)
