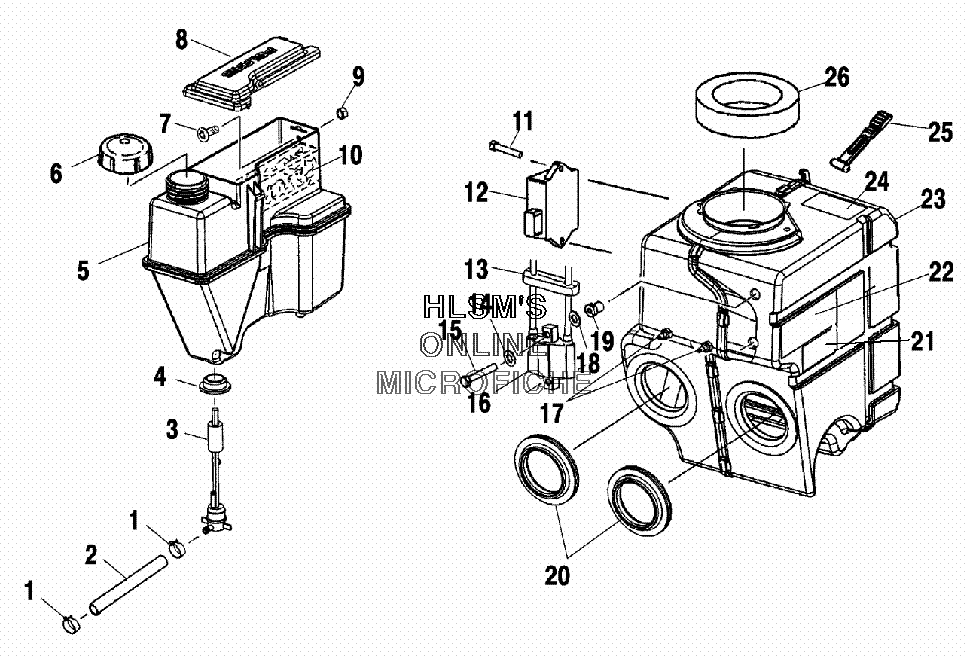

OIL TANK W/ AIR BOX ASSEMBLY для Polaris 700 RMK F/O 144 BUILT BEFORE 3/1/01 (S02NK7CS) - 2002 года выпуска
-
№АртикулНазвание
-
17080307 CLAMPCLAMP
-
28450003-1525 FUEL LINE, 1/4 ID(1525 CM.)FUEL LINE, 1/4 ID(1525 CM.)
-
34010550 FITTING OIL SENDERFITTING OIL SENDER
-
47052305 GROMMET OIL SENDERGROMMET OIL SENDER
-
51253396 ASSY OIL TANK W/SENDING UNITASSY OIL TANK W/SENDING UNIT
-
61240094 CAP OIL, VENTED/CUSTOM COLORCAP OIL, VENTED/CUSTOM COLOR
-
77512297 BOLTBOLT
-
85434089 COVER TOOL BOXCOVER TOOL BOX
-
97542122 NUT LOCKNUT LOCK
-
105812209 FOAM TOOL BOXFOAM TOOL BOX
-
117512095 SCREWSCREW
-
137080471 T CLIPT CLIP
-
147552604 WASHERWASHER
-
157517610 SCREWSCREW
-
177052127 FITTING, HOSEFITTING, HOSE
-
187555932 WASHER, NYLONWASHER, NYLON
-
197547103 NUTNUT
-
205412157 BOOT CARB, 70 DURO)BOOT CARB, 70 DURO)
-
217073426 DECAL, GREASEDECAL, GREASE
-
227073820 DECAL, ADJ.DRIVEN CLUTCHDECAL, ADJ.DRIVEN CLUTCH
-
231253399 ASSY AIR SILENCER, EDGE [INCL. DECALS]ASSY AIR SILENCER, EDGE [INCL. DECALS]
-
247075351 DECAL, CAUTION, AIRBOXDECAL, CAUTION, AIRBOX
-
255433150 STRAP, RUBBERSTRAP, RUBBER
-
265811983 FOAM, AIRBOX, CHIMNEY, EDGEFOAM, AIRBOX, CHIMNEY, EDGE
