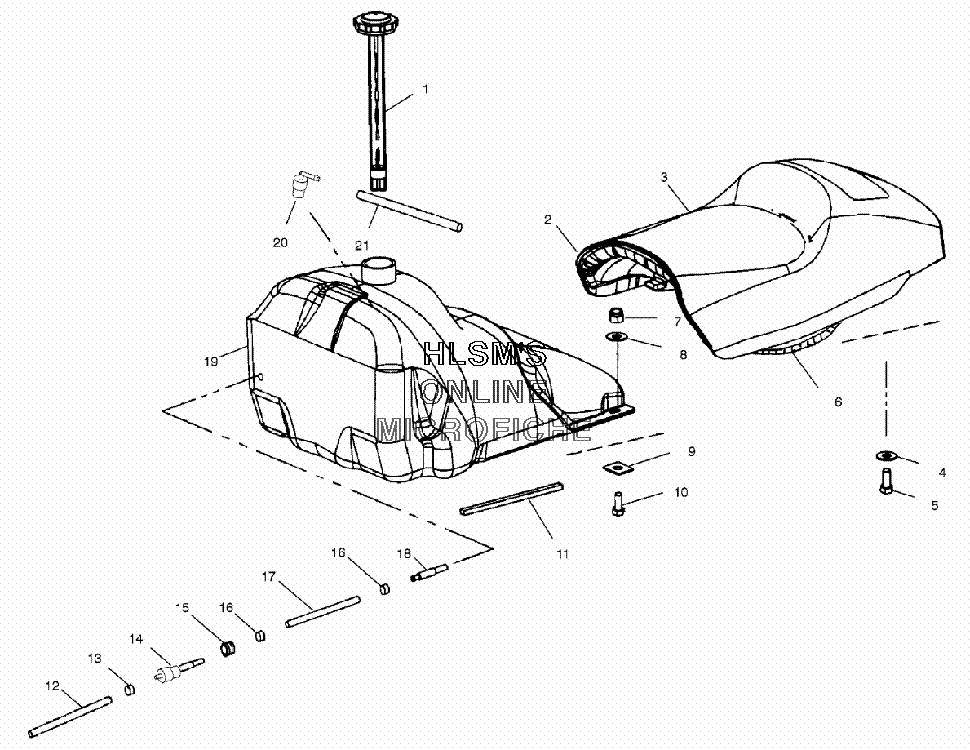

SEAT W/ GAS TANK ASSEMBLY для Polaris 700 RMK F/O 144 BUILT BEFORE 3/1/01 (S02NK7CS) - 2002 года выпуска
-
№АртикулНазвание
-
11240066 CAP, FUEL (12.5, W/GAUGE)CAP, FUEL (12.5, W/GAUGE)
-
22682778 ASSY SEAT, EDGE, RMK [BLUE] [INCL. 3, 6]ASSY SEAT, EDGE, RMK [BLUE] [INCL. 3, 6]
-
22682710 ASSY SEAT, EDGE, RMK [RED] [INCL. 3, 6]ASSY SEAT, EDGE, RMK [RED] [INCL. 3, 6]
-
22682827 ASSY SEAT, EDGE, RMK [BLACK] [INCL. 3, 6]ASSY SEAT, EDGE, RMK [BLACK] [INCL. 3, 6]
-
32682779 ASSY SEAT COVER [BLUE]ASSY SEAT COVER [BLUE]
-
32682822 ASSY SEAT COVER, EDGE, RMK [RED]ASSY SEAT COVER, EDGE, RMK [RED]
-
32682828 ASSY SEAT COVER, EDGE, RMK [BLACK]ASSY SEAT COVER, EDGE, RMK [BLACK]
-
47558301 WASHERWASHER
-
57512232 BOLTBOLT
-
62460935 HARNESS TAILLIGHT, RMK, EDGEHARNESS TAILLIGHT, RMK, EDGE
-
77542122 NUT LOCKNUT LOCK
-
87555960 WASHERWASHER
-
97670021 SPEED NUTSPEED NUT
-
107512193 BOLTBOLT
-
115810947 SEAL, FOAM, R.COOLERSEAL, FOAM, R.COOLER
-
128350017-600 FUEL, LINE, ETHER, RED, 5/16"FUEL, LINE, ETHER, RED, 5/16"
-
137080003 CLAMP, HOSECLAMP, HOSE
-
147052269 FITTING (5/16"/ 3/8 STRAIGHT)FITTING (5/16"/ 3/8 STRAIGHT)
-
155432981 GROMMETGROMMET
-
167080768 RING, COMPRESSIONRING, COMPRESSION
-
178350020-600 FUEL, LINE, ETHER, VLT, 3/8"FUEL, LINE, ETHER, VLT, 3/8"
-
187052215 PICK UP, FUEL, W/MESHPICK UP, FUEL, W/MESH
-
192520262 ASSY FUEL TANK, EDGEASSY FUEL TANK, EDGE
-
207052095 FITTING (90 DEG, 1/8,)FITTING (90 DEG, 1/8,)
-
218450061-600 FUELLINE, 3MMX7MMFUELLINE, 3MMX7MM
