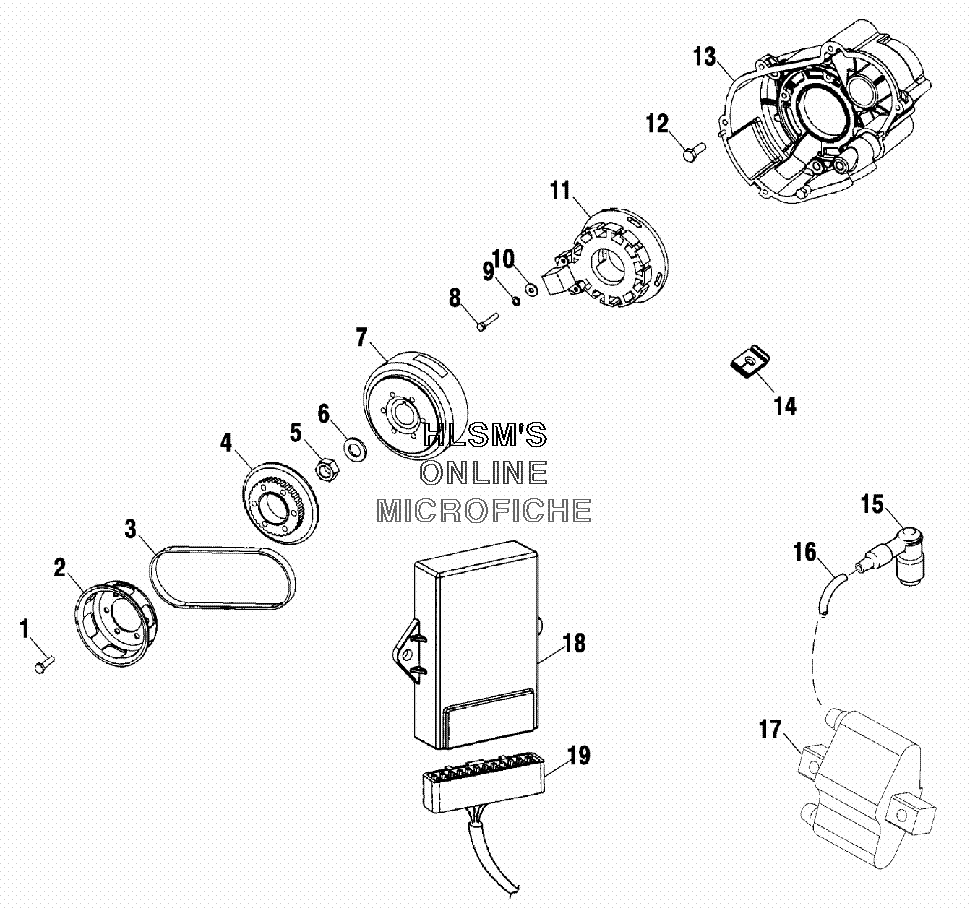

ELECTRICAL - MAGNETO ASSEMBLY W/ COIL для Polaris 700 RMK F/O 144 BUILT BEFORE 3/1/01 (S02NK7CS) - 2002 года выпуска
-
№АртикулНазвание
-
17516823 SCREWSCREW
-
23021144 PULLEY, RECOIL, 700 BASEPULLEY, RECOIL, 700 BASE
-
35411998 KIT-WATERPUMP BELTKIT-WATERPUMP BELT
-
45630824 PULLEY, WATERPUMPDRIVEPULLEY, WATERPUMPDRIVE
-
57546909 NUTNUT
-
67555907 WASHERWASHER
-
74010629 FLYWHEEL IGN SNO KOK W/O GLUEFLYWHEEL IGN SNO KOK W/O GLUE
-
87517246 SCREWSCREW
-
97555969 WASHER, LOCK,WASHER, LOCK,
-
107555970 WASHER, FLAT,WASHER, FLAT,
-
114010297 STATOR, IGNITION, SNOW, TWNSTATOR, IGNITION, SNOW, TWN
-
127516734 SCREW,SCREW,
-
131202161 HOUSING, IGN., ASSY.HOUSING, IGN., ASSY.
-
145411178 GROMMET, STATOR WIRESGROMMET, STATOR WIRES
-
154020155 CAP, SPARKPLUGCAP, SPARKPLUG
-
164010124 WIRE, IGNWIRE, IGN
-
174060229 COIL, IGNITION SNO, KOKCOIL, IGNITION SNO, KOK
-
182201926 KIT CDI S70 70 4010553 [INCL. 18, NYOGEL & DECAL]KIT CDI S70 70 4010553 [INCL. 18, NYOGEL & DECAL]
-
187077026 DECAL, SPARKPLUG REC.DECAL, SPARKPLUG REC.
-
194010549 HARNESS IGN SNO TWN KOK NEWHARNESS IGN SNO TWN KOK NEW
