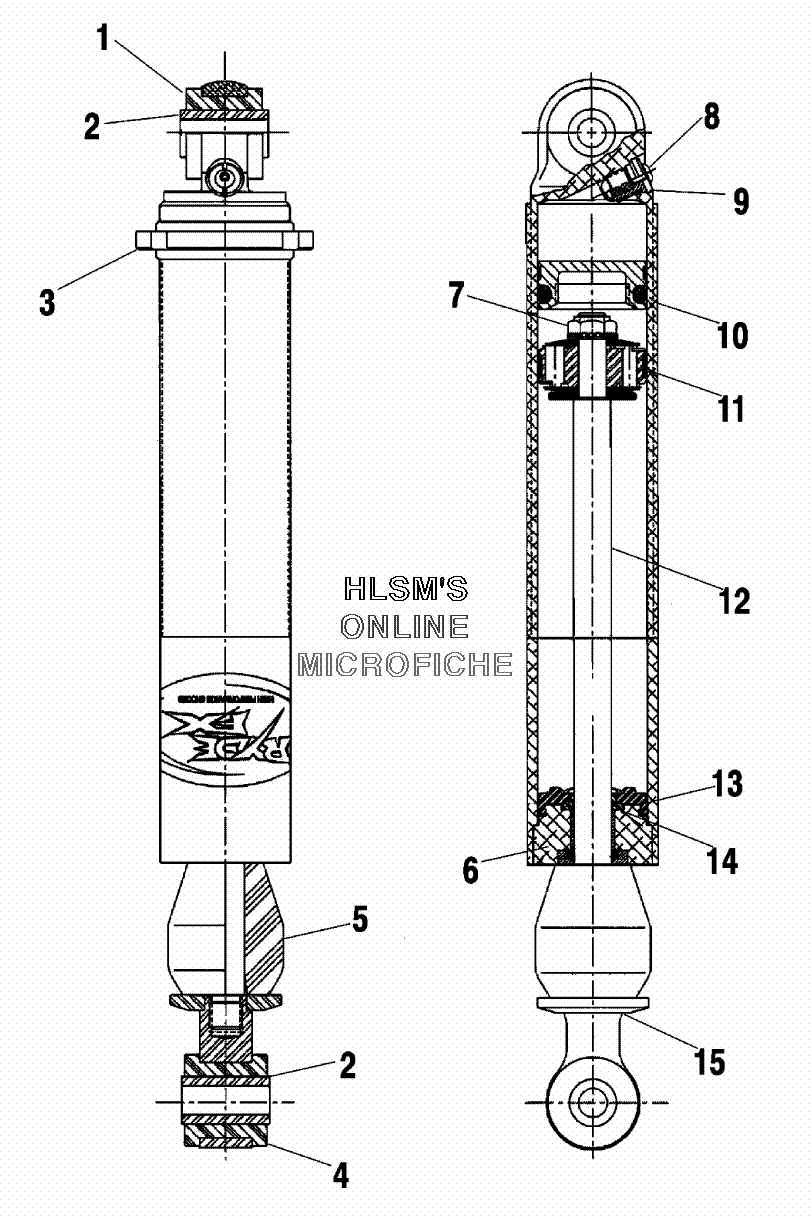

SUSPENSION - FOX SHOCK - IFS LEFT AND RIGHT HAND- FRONT для Polaris 700 RMK F/O 144 BUILT BEFORE 3/1/01 (S02NK7CS) - 2002 года выпуска
-
№АртикулНазвание
-
11700036 BUSHINGBUSHING
-
21700079 SLEEVESLEEVE
-
31700033 SPRING RET NUTSPRING RET NUT
-
41700072 BUSHINGBUSHING
-
51700042 COMP BUMPERCOMP BUMPER
-
61700007 CYL HEAD ASSY (1/2" ROD)CYL HEAD ASSY (1/2" ROD)
-
71700057 NUTNUT
-
81700056 VALVE SCREWVALVE SCREW
-
91700076 PRESS VALVE ASSYPRESS VALVE ASSY
-
91700047 PRESS VALVE O RINGPRESS VALVE O RING
-
101700023 IFPIFP
-
101700032 IFP WEAR BANDIFP WEAR BAND
-
101700048 IFP O RINGIFP O RING
-
111700108 BANDED PISTON (.086" ORIFICE)BANDED PISTON (.086" ORIFICE)
-
111700031 PISTON WEAR BANDPISTON WEAR BAND
-
111700077 TOP OUT WASHERTOP OUT WASHER
-
111700078 BACK UP WASHERBACK UP WASHER
-
121700025 SHAFT (1/2"DIAX7.88"L)SHAFT (1/2"DIAX7.88"L)
-
131700022 CAP SEALCAP SEAL
-
141700021 ROD SEALROD SEAL
-
151700010 UPPER MOUNTUPPER MOUNT
-
157042059 SHOCK IFS, ARVIN, IFPSHOCK IFS, ARVIN, IFP
