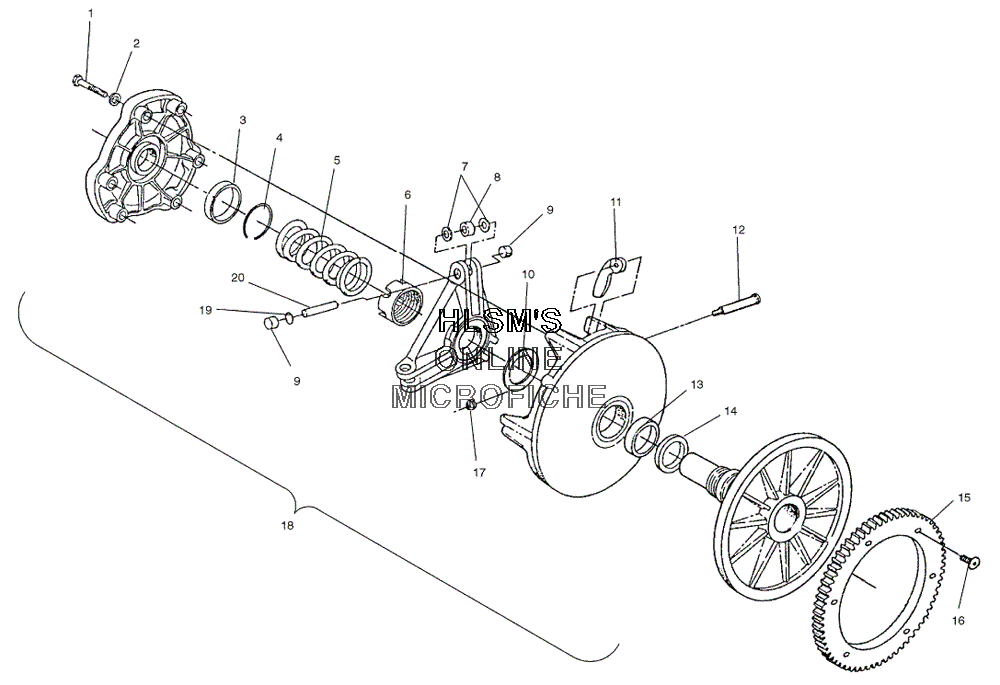

CLUTCH - DRIVE (ELECTRIC START MODELS) для Polaris 700 XC SP EDGE X F/O (S03NA7CS) - 2003 года выпуска
‹-+›
-
№АртикулНазвание
-
17512265 BOLTBOLT
-
27552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
33576516 BEARING, COVERBEARING, COVER
-
47710417 RING, RETAINING COVERRING, RETAINING COVER
-
57042083 SPRING CLUTCH (BLACK/GREEN)SPRING CLUTCH (BLACK/GREEN)
-
65020425 NUT, JAMNUT, JAM
-
75430945 WASHERWASHER
-
81321622 ROLLER AND BUSHING, ASSYROLLER AND BUSHING, ASSY
-
95430445 BUTTON, GUIDEBUTTON, GUIDE
-
105210754 SPACER (.050")SPACER (.050")
-
105210753 SPACER (.032")SPACER (.032")
-
105242981 SPACER (.025")SPACER (.025")
-
105210752 SPACER (.020")SPACER (.020")
-
105132542 SPACER (.130 ")SPACER (.130 ")
-
111321586 WT/BUSH.ASSY 10-62WT/BUSH.ASSY 10-62
-
127515105 PIN, WT. HARDENEDPIN, WT. HARDENED
-
133576502 BEARING, SLEEVEBEARING, SLEEVE
-
145010188 INSERT, MOVEABLEINSERT, MOVEABLE
-
155131062 GEAR-RINGGEAR-RING
-
167515351 BOLTBOLT
-
177541906 NUT FLEXLOCNUT FLEXLOC
-
181321931 DRIVE CLUTCH, ASSY ES BASIC (INCL. ALL LESS 5, 11)DRIVE CLUTCH, ASSY ES BASIC (INCL. ALL LESS 5, 11)
-
192200387 SHIM, DRIVE CLUTCH KITSHIM, DRIVE CLUTCH KIT
-
205133079 PIN ROLLER, 1" SBNPIN ROLLER, 1" SBN
