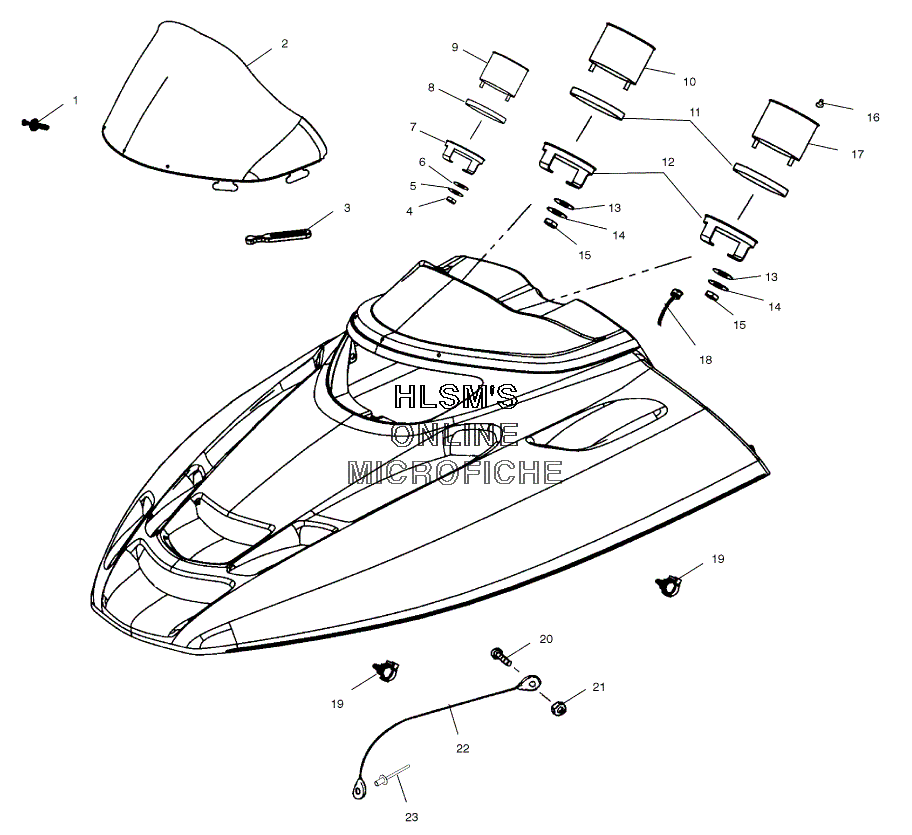

WINDSHIELD/GUAGES/HOOD RETAINER для Polaris 700 XC SP EDGE X F/O (S03NA7CS) - 2003 года выпуска
-
№АртикулНазвание
-
17621509 RIVET, PLASTI-LOCKRIVET, PLASTI-LOCK
-
25433517 WINDSHIELD, EDGE SMOKE (15")WINDSHIELD, EDGE SMOKE (15")
-
25434194 WINDSHIELD 13"FLR SMOKEWINDSHIELD 13"FLR SMOKE
-
35410970 RETAINER, WINDSHIELDRETAINER, WINDSHIELD
-
43280321 HEX NUT NT0001HEX NUT NT0001
-
57555868 WASHER, LOCKWASHER, LOCK
-
63280324 WASHER, FLATWASHER, FLAT
-
73280322 BACK CLAMP GAUGE (2")BACK CLAMP GAUGE (2")
-
83280323 CUSHION, RUBBER (2")CUSHION, RUBBER (2")
-
103280409 TACHOMETER, W/FUEL LT (6P) (WHITE/BLACK)TACHOMETER, W/FUEL LT (6P) (WHITE/BLACK)
-
104030015 BULB TAILLIGHT/TACHOMETER/SPEEDOMETERBULB TAILLIGHT/TACHOMETER/SPEEDOMETER
-
113280209 CUSHION, TACHOMETER/SPEEDOMETER RUBBERCUSHION, TACHOMETER/SPEEDOMETER RUBBER
-
123280210 BRACKET TACHOMETER/SPEEDOMETER 5"BRACKET TACHOMETER/SPEEDOMETER 5"
-
133280157 WASHER, FLATWASHER, FLAT
-
143280156 WASHER, SPLIT LOCKWASHER, SPLIT LOCK
-
153280158 NUTNUT
-
163280186 KNOB, TRIP ODOMETER THD. (LEFT)KNOB, TRIP ODOMETER THD. (LEFT)
-
173280411 SPEEDOMETER, ASSY 5" 120MPH (WHITE/BLACK W/ORANGE)SPEEDOMETER, ASSY 5" 120MPH (WHITE/BLACK W/ORANGE)
-
174030015 BULB TAILLIGHT/TACHOMETER/SPEEDOMETERBULB TAILLIGHT/TACHOMETER/SPEEDOMETER
-
183280385 CABLE SPEEDOMETERCABLE SPEEDOMETER
-
194010589 CLIP PLASTIC, DART NYLONCLIP PLASTIC, DART NYLON
-
207512018 SCREWSCREW
-
217541925 NUT, NYLOK 10-24 YNUT, NYLOK 10-24 Y
-
227080521 CABLE, HOOD RETAINERCABLE, HOOD RETAINER
-
237661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
