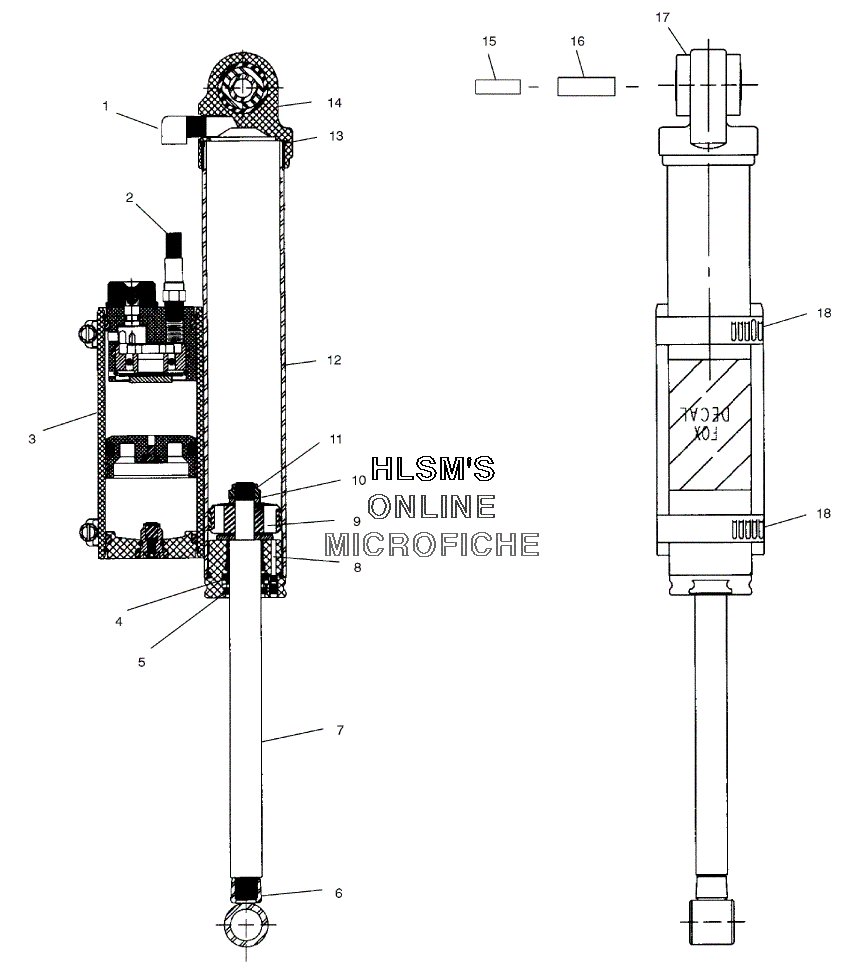

SUSPENSION - FOX SHOCK - REAR TRACK AND RESEVOIR для Polaris 700 XC SP EDGE X F/O (S03NA7CS) - 2003 года выпуска
-
№АртикулНазвание
-
11500157 FITTING, ELBOW, 90DEG.FITTING, ELBOW, 90DEG.
-
21500326 HOSE, ASSY 3.12 TLGHOSE, ASSY 3.12 TLG
-
41500256 U-CUPU-CUP
-
51500257 WIPER U-CUPWIPER U-CUP
-
61500302 EYELETEYELET
-
71500322 SHAFTSHAFT
-
81500328 BEARING, ASSY QUAD RINGBEARING, ASSY QUAD RING
-
92200618 VALVE PISTON KITVALVE PISTON KIT
-
101500074 BUMPER, RUBBERBUMPER, RUBBER
-
111500016 NUT, LOCKNUT, LOCK
-
121500319 BODYBODY
-
131500108 O-RINGO-RING
-
141500244 BODY, CAP, ASSYBODY, CAP, ASSY
-
151500327 SLEEVESLEEVE
-
161500311 SLEEVESLEEVE
-
171500307 BUSHINGBUSHING
-
181500330 CLAMP, HOSECLAMP, HOSE
-
187042196 SHOCK REAR TRACK, REMOTERESSHOCK REAR TRACK, REMOTERES
