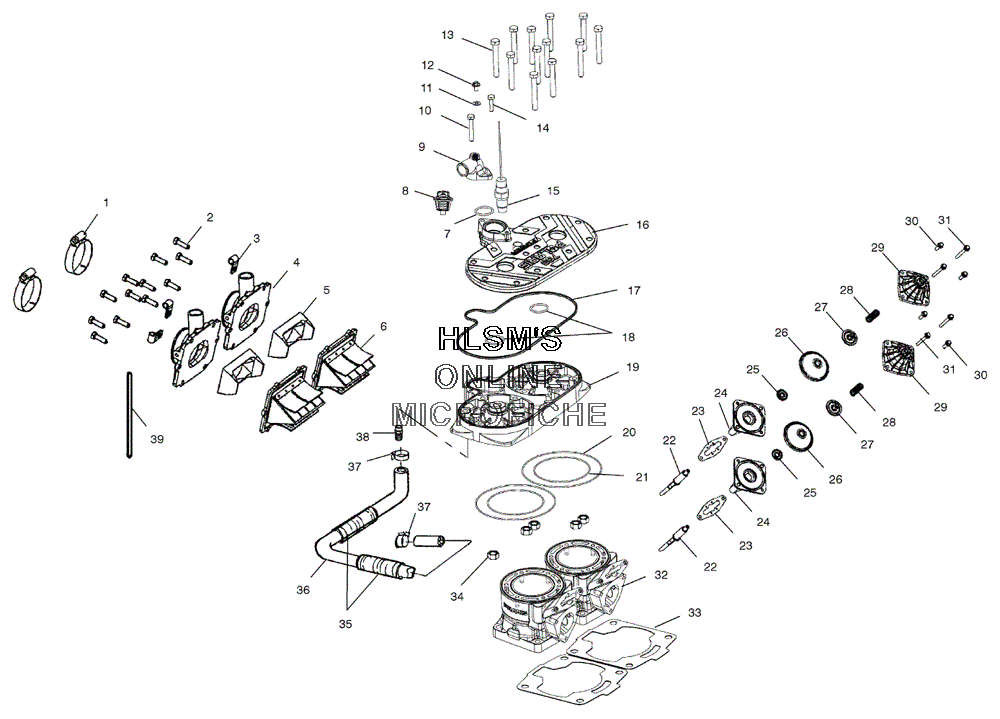

CYLINDER ASSEMBLY для Polaris 700 XC SP EDGE X F/O (S03NA7CS) - 2003 года выпуска
-
№АртикулНазвание
-
17080681 CLAMP, HOSECLAMP, HOSE
-
27517398 SCREW,SCREW,
-
37080683 CLAMP, HOSECLAMP, HOSE
-
41253327 ADAPTER, CARBURETOR (40MM)ADAPTER, CARBURETOR (40MM)
-
55433151 STUFFER REED BLOCK, NOKSTUFFER REED BLOCK, NOK
-
61201825 VALVE, REED ASSYVALVE, REED ASSY
-
75411521 O-RING, LIPSEALO-RING, LIPSEAL
-
87052258 THERMOSTAT, 120ШF W/O BYPASSTHERMOSTAT, 120ШF W/O BYPASS
-
95630992 COVER, THERMOSTAT M6 BLEEDCOVER, THERMOSTAT M6 BLEED
-
107517950 SCREW HEXAGON FLANGE-Y/DSCREW HEXAGON FLANGE-Y/D
-
117555998 WASHER, FLATWASHER, FLAT
-
127517679 SCREW, SL/HEXAGON/FLANGE-ZSCREW, SL/HEXAGON/FLANGE-Z
-
137517534 SCREWSCREW
-
147516822 SCREWSCREW
-
154010398 SENSOR THERMISTER (ESX8477A)SENSOR THERMISTER (ESX8477A)
-
165631201-366 HEAD, COVER (PWD) (RED)HEAD, COVER (PWD) (RED)
-
175411294 SEAL, RUBBER HEADSEAL, RUBBER HEAD
-
185410917 O-RINGO-RING
-
193021323 HEAD CYLINDER (81MM)HEAD CYLINDER (81MM)
-
205412232 O-RINGO-RING
-
215410932 O-RINGO-RING
-
225132669 VALVE GUILLOTINE GEN 3.5, 700EVVALVE GUILLOTINE GEN 3.5, 700EV
-
235812350 GASKET BASE TO CYLINDER EXHAUST VALVEGASKET BASE TO CYLINDER EXHAUST VALVE
-
241202216 BASE EXHAUST VALVE DOM ASSYBASE EXHAUST VALVE DOM ASSY
-
255132950 WASHER BELLOWS, EXHAUST VALVE DOMWASHER BELLOWS, EXHAUST VALVE DOM
-
265412147 BELLOWS, EXHAUST MODIFIEDBELLOWS, EXHAUST MODIFIED
-
275631381 CAP/NUT, BELLOWS EXHAUST VALVE DOMCAP/NUT, BELLOWS EXHAUST VALVE DOM
-
287041786-08 SPRING COMP (GREEN/YELLOW)SPRING COMP (GREEN/YELLOW)
-
295434599 HOUSING, W/BUSHING ASSYHOUSING, W/BUSHING ASSY
-
307516820 SCREWSCREW
-
317517932 SCREW HEXAGON/FLANGE-YDSCREW HEXAGON/FLANGE-YD
-
323021340 CYLINDER SNO EV (81MM)CYLINDER SNO EV (81MM)
-
335812362 GASKET CYLINDER BASE METAL 700GASKET CYLINDER BASE METAL 700
-
347547013 NUTNUT
-
355521398-96 CONDUIT, FLEX (.75"ID)CONDUIT, FLEX (.75"ID)
-
365411536 HOSE, BYPASSHOSE, BYPASS
-
377081030 CLAMP BYPASS NORMA #24-15CLAMP BYPASS NORMA #24-15
-
387052222 FITTING, 1/2ID. HOSEFITTING, 1/2ID. HOSE
-
397080654 RETAINERRETAINER
