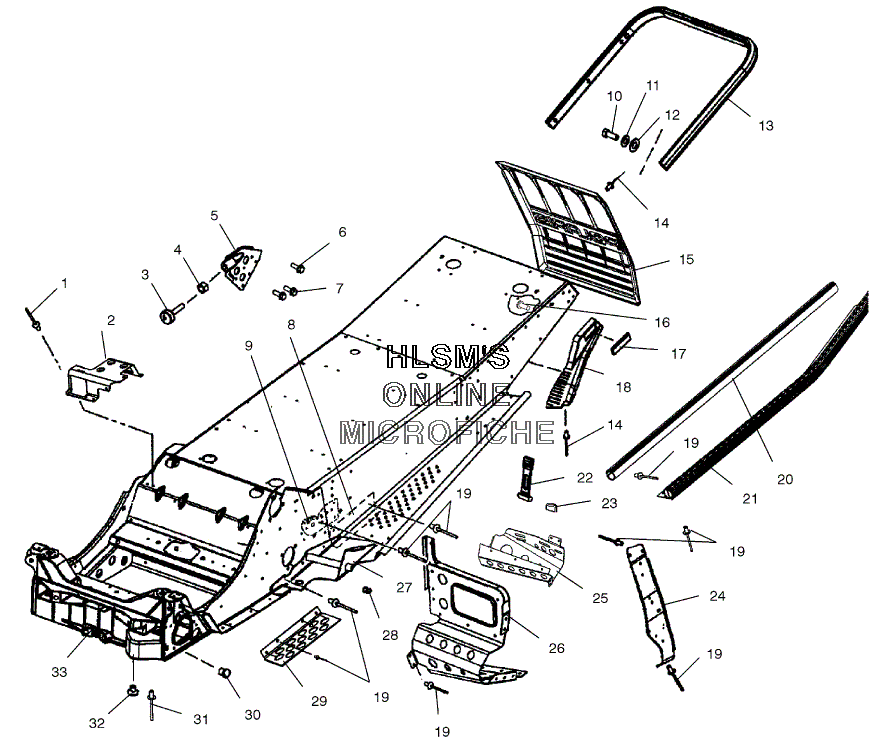

FRAME - CHASSIS для Polaris 700 XC SP EDGE X F/O (S03NA7CS) - 2003 года выпуска
-
№АртикулНазвание
-
17621432 RIVETRIVET
-
25246330 BRACKET OIL TANK/HOSE SUPPORTBRACKET OIL TANK/HOSE SUPPORT
-
33110078 STOP, TORQUESTOP, TORQUE
-
47542404 NUTNUT
-
51013377 WELD TORQUE STOPWELD TORQUE STOP
-
67517632 SCREWSCREW
-
77517854 SCREWSCREW
-
107512240 BOLTBOLT
-
117552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
127558301 WASHER, FLATWASHER, FLAT
-
132632165-309 BUMPER, ASSY (REAR)BUMPER, ASSY (REAR)
-
132632165-216 BUMPER, ASSY (REAR/SCR YELLOW)BUMPER, ASSY (REAR/SCR YELLOW)
-
147621472 RIVETRIVET
-
155433961-1038 FLAP SNOW, SHORT (BLACK/WHITE)FLAP SNOW, SHORT (BLACK/WHITE)
-
155433979 FLAP SNOW, EDGE XFLAP SNOW, EDGE X
-
167517441 SCREW (.75)SCREW (.75)
-
172670133 REFLECTOR ASSY (RED)REFLECTOR ASSY (RED)
-
182632443-070 SNOWSKIRT/REFLECTOR ASSY (BLACK/LEFT)SNOWSKIRT/REFLECTOR ASSY (BLACK/LEFT)
-
182632444-070 SNOWSKIRT/REFLECTOR ASSY (BLACK/RIGHT)SNOWSKIRT/REFLECTOR ASSY (BLACK/RIGHT)
-
197661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
205245118 BRACE TUNNEL ROLLBRACE TUNNEL ROLL
-
215132903 GRIP, TUNNEL COMMON (LEFT)GRIP, TUNNEL COMMON (LEFT)
-
215132904 GRIP, TUNNEL COMMON (RIGHT)GRIP, TUNNEL COMMON (RIGHT)
-
225433150 STRAPSTRAP
-
235812352 PAD CLUTCH GUARDPAD CLUTCH GUARD
-
245246310 SUPPORT FOOTREST (LEFT)SUPPORT FOOTREST (LEFT)
-
245246311 SUPPORT FOOTREST (RIGHT)SUPPORT FOOTREST (RIGHT)
-
255245457 MOUNT CONSOLE, TOE CLIP (LEFT)MOUNT CONSOLE, TOE CLIP (LEFT)
-
255245458 MOUNT CONSOLE, TOE CLIP (RIGHT)MOUNT CONSOLE, TOE CLIP (RIGHT)
-
265245288 FOOTREST (.080 )(LEFT)FOOTREST (.080 )(LEFT)
-
265242740 FOOTREST (RIGHT)FOOTREST (RIGHT)
-
272202059 MOUNT, TRAILING ARM KIT (LEFT)MOUNT, TRAILING ARM KIT (LEFT)
-
272202060 MOUNT, TRAILING ARM KIT (RIGHT)MOUNT, TRAILING ARM KIT (RIGHT)
-
285412276 GROMMET M10 ACE WIREGROMMET M10 ACE WIRE
-
295245836 GUARD BELT, EDGE W/BENDGUARD BELT, EDGE W/BEND
-
307080416 PLUG, HOLEPLUG, HOLE
-
317661639 RIVETRIVET
-
327081076 PLUG HOLE, 1.25PLUG HOLE, 1.25
-
335132292 BULKHEAD MACH (FRONT)BULKHEAD MACH (FRONT)
-
-1013778-309 CHASSIS SERVICE EDGE NATURAL ASSYCHASSIS SERVICE EDGE NATURAL ASSY
-
-1013795-1124 CHASSIS, EDGE X SERVICE ASSY (NATURAL/YELLOW)CHASSIS, EDGE X SERVICE ASSY (NATURAL/YELLOW)
-
-1013805-309 CHASSIS SERVICE EDGE, ASSY NATURALCHASSIS SERVICE EDGE, ASSY NATURAL
-
-1013811-1124 CHASSIS SERVICE ASSY (NATURAL/YELLOW) (X)CHASSIS SERVICE ASSY (NATURAL/YELLOW) (X)
