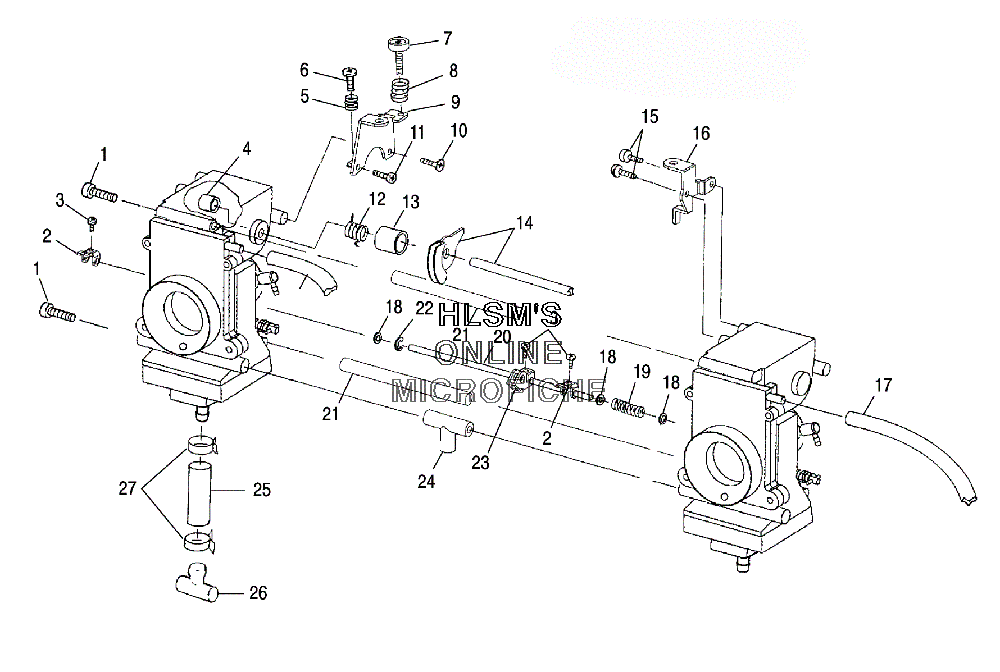

CARBURETOR LINKAGE для Polaris 800 SWITCHBACK (S05NS6ES) - 2005 года выпуска
-
№АртикулНазвание
-
13130834 BOLTBOLT
-
23130832 LEVERLEVER
-
33130833 SCREWSCREW
-
43140032 RINGRING
-
53130817 SPRINGSPRING
-
63130816 SCREWSCREW
-
73131285 ADJUSTERADJUSTER
-
83131284 SPRINGSPRING
-
93130815 BRACKETBRACKET
-
103130810 SCREWSCREW
-
113130809 SCREWSCREW
-
123130950 SPRINGSPRING
-
133130853 RINGRING
-
143131369 SHAFT ASSY (INCL. LEVER)SHAFT ASSY (INCL. LEVER)
-
153130821 SCREWSCREW
-
163130820 BRACKETBRACKET
-
173131137 HOSEHOSE
-
183130842 PACKING, SHAFTPACKING, SHAFT
-
193130841 SPRING SHAFTSPRING SHAFT
-
203131233 SHAFTSHAFT
-
213131232 RING, RACK STYLERING, RACK STYLE
-
223130839 E-RINGE-RING
-
233130819 LEVER, STARTERLEVER, STARTER
-
243131350 NIPPLE ASSYNIPPLE ASSY
-
258350017-600 FUEL LINE, ETHER 5/16" (RED)FUEL LINE, ETHER 5/16" (RED)
-
265431893 PLUG, TRAPPLUG, TRAP
-
277080003 CLAMP, HOSECLAMP, HOSE
