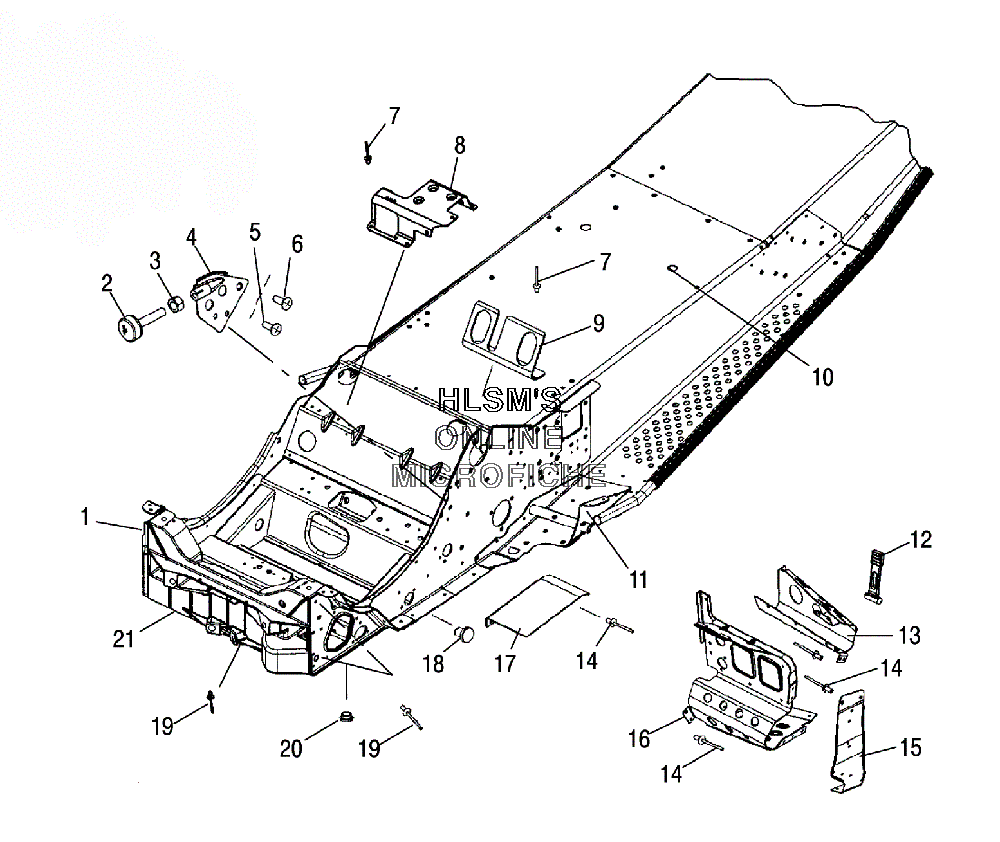

FRAME - CHASSIS #2 для Polaris 800 SWITCHBACK (S05NS6ES) - 2005 года выпуска
-
№АртикулНазвание
-
11014160-309 CHASSIS SERVICE 136" / 144" NATURAL ASSYCHASSIS SERVICE 136" / 144" NATURAL ASSY
-
23110078 STOP, TORQUESTOP, TORQUE
-
37542404 NUTNUT
-
41013377 WELD TORQUE STOPWELD TORQUE STOP
-
57517854 SCREWSCREW
-
67517632 SCREWSCREW
-
77621432 RIVETRIVET
-
85245202 BRACKET OIL BOTTLEBRACKET OIL BOTTLE
-
95246177 BRACKET AIRBOXBRACKET AIRBOX
-
107080592 CAPLUG, 3/4"CAPLUG, 3/4"
-
112202059 MOUNT, TRAILING ARM KIT (LEFT)MOUNT, TRAILING ARM KIT (LEFT)
-
112202598 MOUNT, TRAILING ARM KIT (RIGHT)MOUNT, TRAILING ARM KIT (RIGHT)
-
125433150 STRAPSTRAP
-
135245457 MOUNT CONSOLE, TOE CLIP (LEFT)MOUNT CONSOLE, TOE CLIP (LEFT)
-
135245458 MOUNT CONSOLE, TOE CLIP (RIGHT)MOUNT CONSOLE, TOE CLIP (RIGHT)
-
147661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
155246310 SUPPORT FOOTREST (LEFT)SUPPORT FOOTREST (LEFT)
-
155246311 SUPPORT FOOTREST (RIGHT)SUPPORT FOOTREST (RIGHT)
-
165245288 FOOTREST (LEFT)FOOTREST (LEFT)
-
165242740 FOOTREST (RIGHT)FOOTREST (RIGHT)
-
175221583 GUARD ADAPTER DRIVEGUARD ADAPTER DRIVE
-
187080416 PLUG, HOLEPLUG, HOLE
-
197661130 RIVETRIVET
-
207081076 PLUG HOLEPLUG HOLE
-
215132292 BULKHEAD, MACH (FRONT)BULKHEAD, MACH (FRONT)
