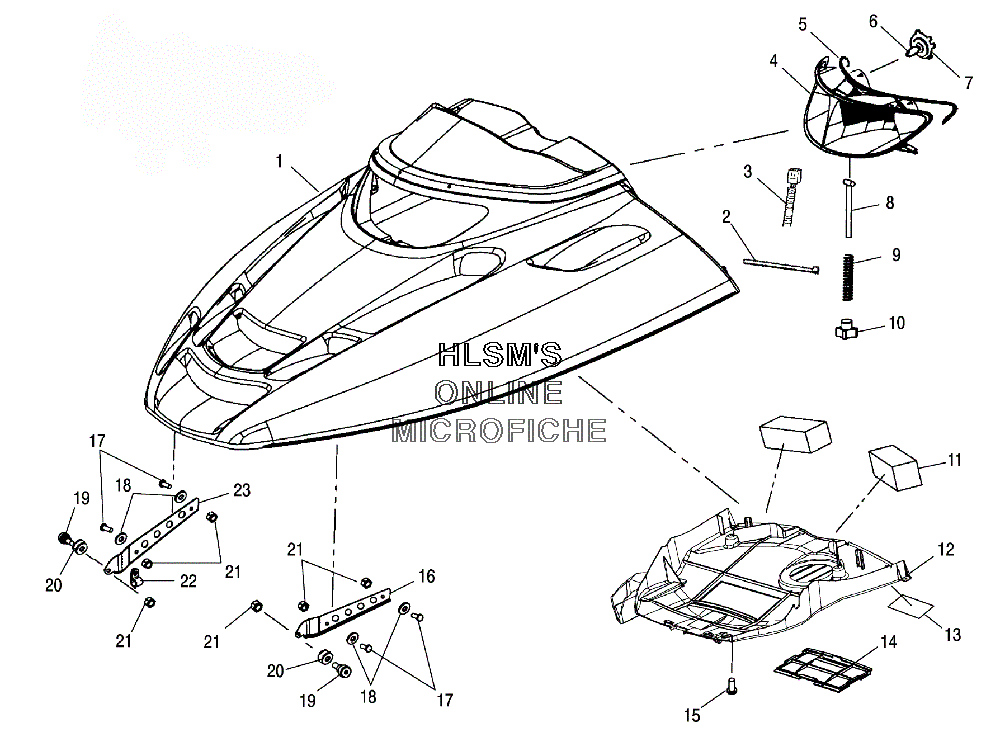

HOOD ASSEMBLY W/ HEADLIGHT для Polaris 800 SWITCHBACK (S05NS6ES) - 2005 года выпуска
-
№АртикулНазвание
-
12632521-177 HOOD, EDGE 2H SERVICE ASSY (BLACK)HOOD, EDGE 2H SERVICE ASSY (BLACK)
-
27080138 CABLE TIECABLE TIE
-
32461015 HARNESS HEADLIGHT E/RHARNESS HEADLIGHT E/R
-
42410132 HEADLAMP, 2-BULB ASSY (INCL. BULBS)HEADLAMP, 2-BULB ASSY (INCL. BULBS)
-
55812450 SEAL HEADLIGHT ONE PIECESEAL HEADLIGHT ONE PIECE
-
62870448 BULB, QUARTZ. HEADLIGHT H4 60/55WBULB, QUARTZ. HEADLIGHT H4 60/55W
-
74032063 RETAINER, HEADLIGHT BULBRETAINER, HEADLIGHT BULB
-
87517872 BOLT TEE ADJUSTERBOLT TEE ADJUSTER
-
97041954 SPRING HEADLIGHT ADJUSTSPRING HEADLIGHT ADJUST
-
107080887 KNOB, HEADLIGHT ADJUST LOCKING BKNOB, HEADLIGHT ADJUST LOCKING B
-
115811793 FOAM, PREFILTERFOAM, PREFILTER
-
122632491 PLENUM, FOIL ASSYPLENUM, FOIL ASSY
-
125812324 FOILFOIL
-
125811948 FOILFOIL
-
137170040 DECAL, SUSPENSION SET-UPDECAL, SUSPENSION SET-UP
-
145433660 COVER, HEADLIGHT ACCESSCOVER, HEADLIGHT ACCESS
-
157512068 SCREWSCREW
-
165243567-067 HINGE (UPPER/BLACK/LEFT)HINGE (UPPER/BLACK/LEFT)
-
177512240 BOLTBOLT
-
187558301 WASHER, FLATWASHER, FLAT
-
197512113 BOLTBOLT
-
205332403 SPACERSPACER
-
217542122 NUT NYLOKNUT NYLOK
-
227080367 CLAMP, CABLECLAMP, CABLE
-
235243568-067 HINGE (UPPER/BLACK/RIGHT)HINGE (UPPER/BLACK/RIGHT)
