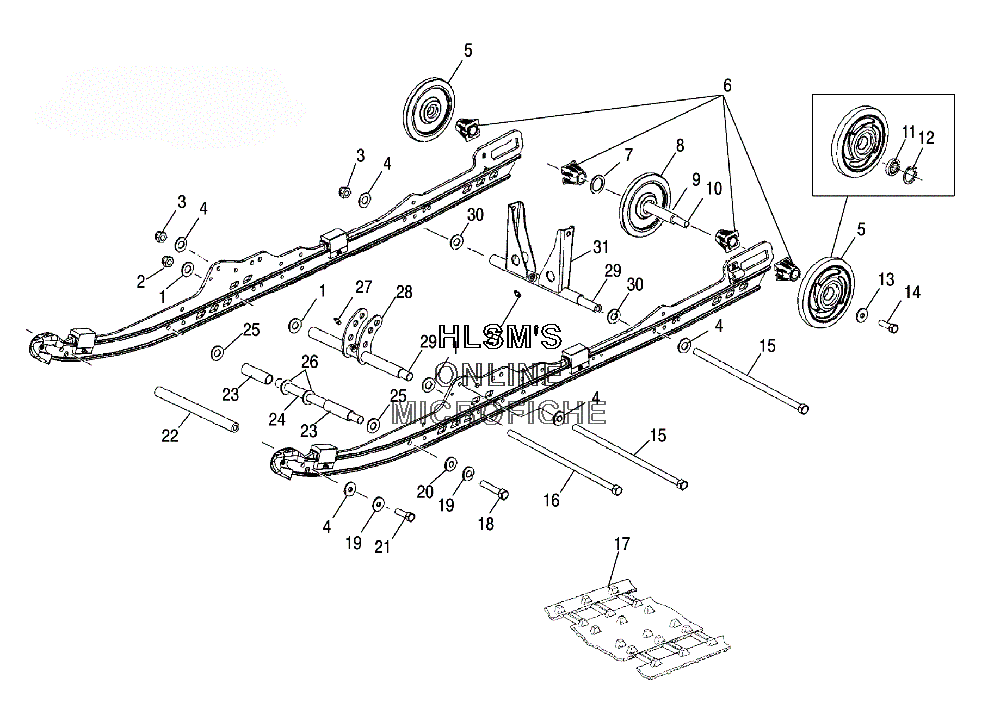

RAIL ASSEMBLY W/IDLER WHEELS для Polaris 800 SWITCHBACK (S05NS6ES) - 2005 года выпуска
-
№АртикулНазвание
-
17556216 WASHERWASHER
-
27547217 NUT NYLOKNUT NYLOK
-
37542439 NUT, NYLOKNUT, NYLOK
-
47555806 WASHER, FLATWASHER, FLAT
-
51590303-293 WHEEL, IDLER HP ASSY (INDY RED) (INCL. 11, 12)WHEEL, IDLER HP ASSY (INDY RED) (INCL. 11, 12)
-
65432535 SPACER, IDLERSPACER, IDLER
-
77555918 BUSHINGBUSHING
-
81594087 WHEEL, PLAIN ASSY (6.38 O.D.)WHEEL, PLAIN ASSY (6.38 O.D.)
-
95333285 SPACER, IDLER LONGSPACER, IDLER LONG
-
105020744 SHAFT, IDLERSHAFT, IDLER
-
113514384 BEARING NTNBEARING NTN
-
127710444 RING, RETAININGRING, RETAINING
-
137556130 WASHERWASHER
-
147517731 BOLTBOLT
-
157517921 SCREW HEXAGON/LP, GR8-YSCREW HEXAGON/LP, GR8-Y
-
167517996 SCREW HWH SP GR8-YSCREW HWH SP GR8-Y
-
175412168 TRACK 144"X1.25 TRACKTRACK 144"X1.25 TRACK
-
187517857 SCREW HEXAGON/CAPSCREW HEXAGON/CAP
-
197552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
207556042 WASHER FLATWASHER FLAT
-
217517247 SCREWSCREW
-
225020868 SHAFTSHAFT
-
235334062 SPACER SHOCK CENTERINGSPACER SHOCK CENTERING
-
245133188 SHAFTSHAFT
-
257555832 WASHERWASHER
-
267556210 WASHERWASHER
-
277080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
281541635-067 WELD SHOCK PIVOT ARM (BLACK)WELD SHOCK PIVOT ARM (BLACK)
-
295334042 TUBE NITROTUBE NITRO
-
307556242 WASHERWASHER
-
311541832-067 WELD REAR PIVOT ARM (BLACK)WELD REAR PIVOT ARM (BLACK)
