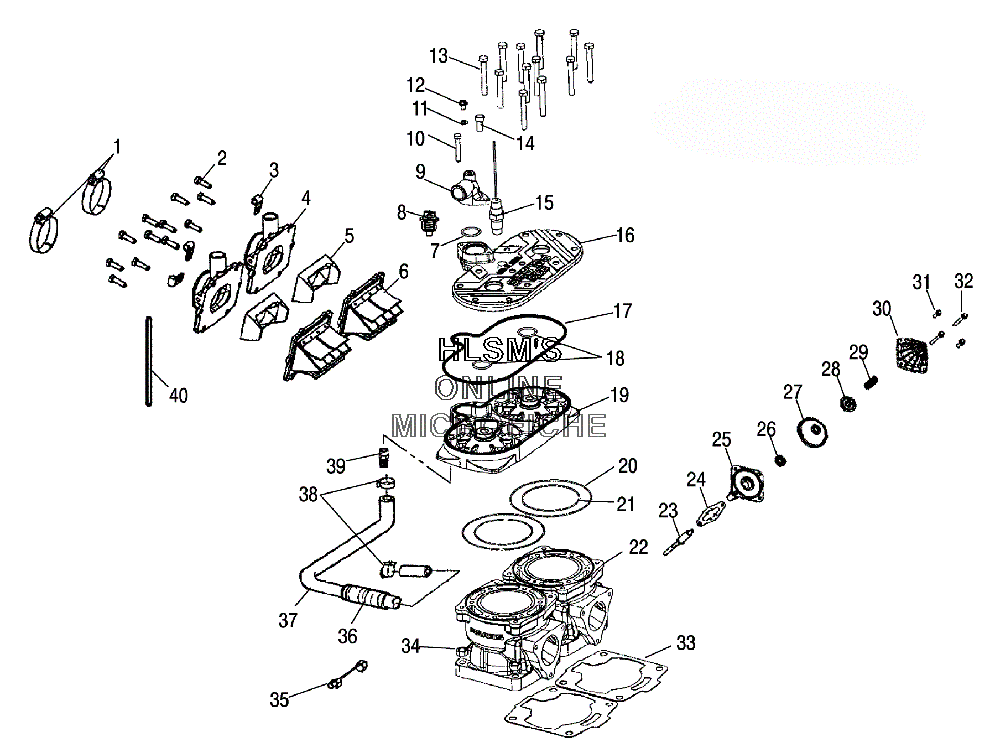

CYLINDER ASSEMBLY для Polaris 800 SWITCHBACK (S05NS6ES) - 2005 года выпуска
-
№АртикулНазвание
-
17080681 CLAMP, HOSECLAMP, HOSE
-
27517398 SCREWSCREW
-
37080683 CLAMP, HOSECLAMP, HOSE
-
41253327 ADAPTER, CARBURETOR (40MM)ADAPTER, CARBURETOR (40MM)
-
55433151 STUFFER REED BLOCK, NOKSTUFFER REED BLOCK, NOK
-
61201825 VALVE, REED ASSYVALVE, REED ASSY
-
75411521 O-RING, LIPSEALO-RING, LIPSEAL
-
87052258 THERMOSTAT 120ШF W/O BYPASSTHERMOSTAT 120ШF W/O BYPASS
-
95631391 COVER THERMOSTAT M6 BLEED MACHCOVER THERMOSTAT M6 BLEED MACH
-
107517950 SCREW, HEXAGON FLANGE-YDSCREW, HEXAGON FLANGE-YD
-
117555998 WASHER, FLATWASHER, FLAT
-
127517679 SCREW, SL/HEXAGON/FLANGE-ZSCREW, SL/HEXAGON/FLANGE-Z
-
137517534 SCREWSCREW
-
147516822 SCREWSCREW
-
154010398 SENSOR THERMISTER, ESX8477ASENSOR THERMISTER, ESX8477A
-
165631427-329 COVER HEAD, 85, SNO 800 (RED/LIBERTY BLACK)COVER HEAD, 85, SNO 800 (RED/LIBERTY BLACK)
-
175411294 SEAL, RUBBER HEADSEAL, RUBBER HEAD
-
185410917 O-RINGO-RING
-
193021426 HEAD-CYLINDER 3/4 DETON (85MM)HEAD-CYLINDER 3/4 DETON (85MM)
-
205412232 O-RINGO-RING
-
215411675 O-RING HI-TMPO-RING HI-TMP
-
223021339 CYLINDER EV W/DECOM (85MM)CYLINDER EV W/DECOM (85MM)
-
235134492 VALVE GUILLOTINE MACHVALVE GUILLOTINE MACH
-
245812350 GASKET BASE TO CYLINDER EXHAUST VALVEGASKET BASE TO CYLINDER EXHAUST VALVE
-
251202216 BASE EXHAUST VALVE DOM ASSYBASE EXHAUST VALVE DOM ASSY
-
265132950 WASHER BELLOWS, EXHAUST VALVE DOMWASHER BELLOWS, EXHAUST VALVE DOM
-
275410000 BELLOWS EXHAUST MODIFIEDBELLOWS EXHAUST MODIFIED
-
285631662 CAP/NUT, BELLOWS EXHAUST VALVECAP/NUT, BELLOWS EXHAUST VALVE
-
297041786-08 SPRING COMP (GREEN/YELLOW)SPRING COMP (GREEN/YELLOW)
-
301202640 HOUSING W/BUSHING ASSYHOUSING W/BUSHING ASSY
-
317516820 SCREWSCREW
-
327517932 SCREW HEXAGON/FLANGE-YDSCREW HEXAGON/FLANGE-YD
-
335812363 GASKET CYLINDER BASE METAL 800GASKET CYLINDER BASE METAL 800
-
347547013 NUTNUT
-
352410369 SENSOR DETONATION BOSCHSENSOR DETONATION BOSCH
-
357517262 SCREW HEXAGON/FLANGE-YDSCREW HEXAGON/FLANGE-YD
-
365521398-96 CONDUIT, FLEX (.75"ID)CONDUIT, FLEX (.75"ID)
-
375411536 HOSE, BYPASSHOSE, BYPASS
-
387081030 CLAMP BYPASS NORMA #24-15CLAMP BYPASS NORMA #24-15
-
397052234 FITTING 3/4 NPT W/DRISEAL 1" HOFITTING 3/4 NPT W/DRISEAL 1" HO
-
407080654 RETAINERRETAINER
