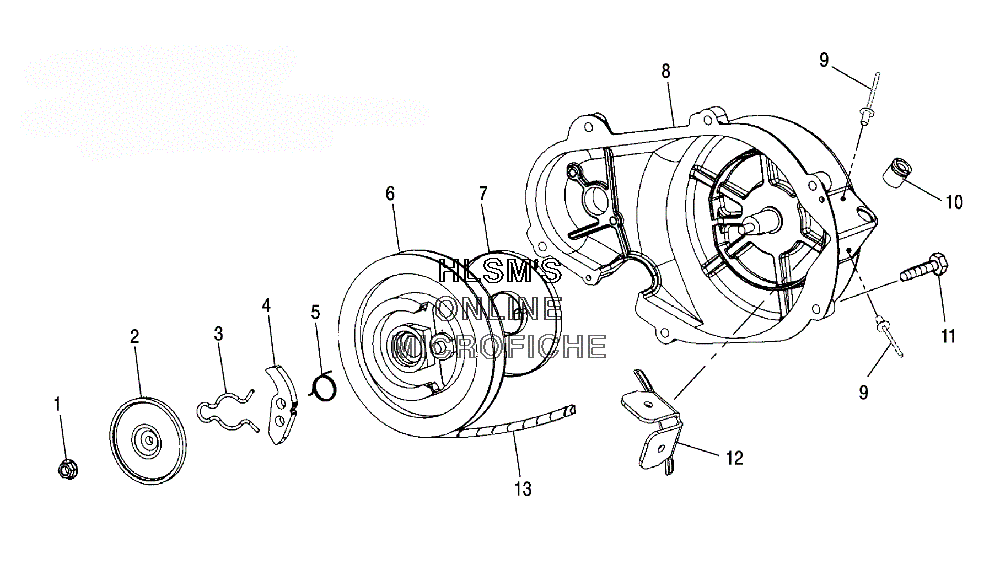

STARTER - RECOIL ASSEMBLY для Polaris 800 SWITCHBACK (S05NS6ES) - 2005 года выпуска
-
№АртикулНазвание
-
13040163 NUT FLANGENUT FLANGE
-
23040164 PLATE FRICTIONPLATE FRICTION
-
33040167 SPRING FRICTIONSPRING FRICTION
-
45246108 RATCHET PAWL ELECTRIC REVERSERATCHET PAWL ELECTRIC REVERSE
-
53040166 SPRING RETURNSPRING RETURN
-
63040168 REELREEL
-
73040170 SPRING SPIRALSPRING SPIRAL
-
83040160 RECOIL E/R SHEILD ASSYRECOIL E/R SHEILD ASSY
-
97661148 RIVET ALUM POP 3/16 .270 GRIPRIVET ALUM POP 3/16 .270 GRIP
-
103040171 GUIDE ROPEGUIDE ROPE
-
117517998 SCREW HEXAGON/FLANGESCREW HEXAGON/FLANGE
-
125246218 SHIELD RECOIL ROPESHIELD RECOIL ROPE
-
133040169 ROPE, STARTERROPE, STARTER
-
131202408 RECOIL E/R, SHEILD ASSY (INCL. 1-10, 13 AND STARTINGPULLEY)RECOIL E/R, SHEILD ASSY (INCL. 1-10, 13 AND STARTINGPULLEY)
