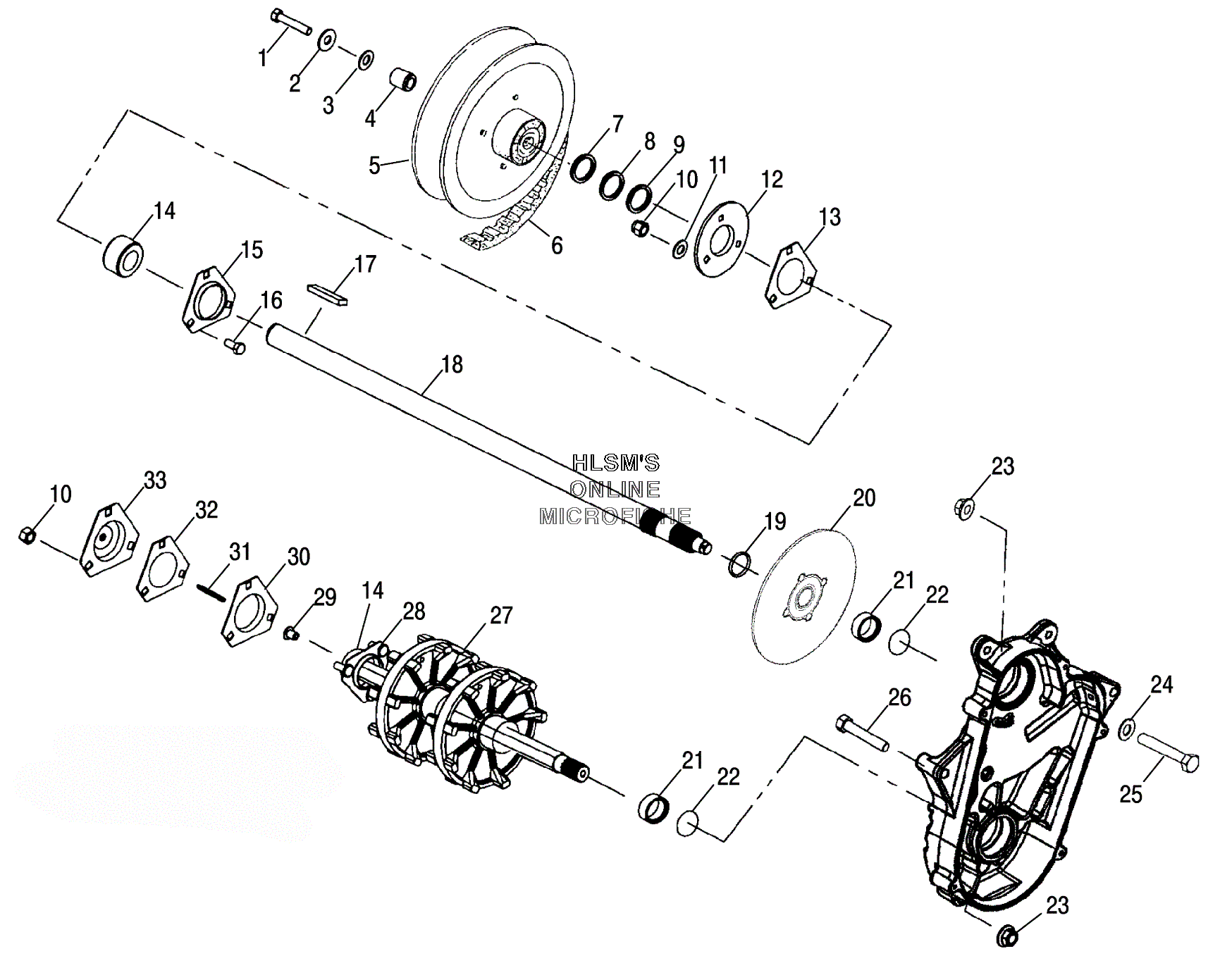

DRIVE TRAIN ASSEMBLY W/DRIVE BELT для Polaris 800 SWITCHBACK (S05NS6ES) - 2005 года выпуска
-
№АртикулНазвание
-
17515369 BOLTBOLT
-
27555701 WASHER, FLATWASHER, FLAT
-
37555734 WASHER, FLATWASHER, FLAT
-
45020913 SPACERSPACER
-
63211080 BELT DRIVEBELT DRIVE
-
77555917 WASHERWASHER
-
87555864 WASHERWASHER
-
97556509 BUSHINGBUSHING
-
107542324 NUT, NYLOKNUT, NYLOK
-
117558402 WASHER, FLATWASHER, FLAT
-
125241359 FLANGE RD, RELUBE W/ZERKFLANGE RD, RELUBE W/ZERK
-
127080561 FITTING, LUB/VENFITTING, LUB/VEN
-
135811095 GASKET, JACKSHAFT (BLACK)GASKET, JACKSHAFT (BLACK)
-
143514525 BEARINGBEARING
-
155222751 FLANGETTEFLANGETTE
-
167512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
177721128 KEYKEY
-
181332283 JACKSHAFT, W/BEARING ASSY (15T) (INCL. 14, 19)JACKSHAFT, W/BEARING ASSY (15T) (INCL. 14, 19)
-
197710422 RING, RETAININGRING, RETAINING
-
201910403 BRAKE DISC, FORGED KITBRAKE DISC, FORGED KIT
-
215020588 SLEEVE, SEALSLEEVE, SEAL
-
225410613 O-RINGO-RING
-
237542423 NUT, FLANGENUT, FLANGE
-
247558403 WASHER, WROUGHTWASHER, WROUGHT
-
257518002 SCREW HEXAGON/CAPSCREW HEXAGON/CAP
-
267515428 BOLT, CARRIAGEBOLT, CARRIAGE
-
271590346 DRSHAFT, 2 DRIVE W ASSY (SMOOTH) (INCL. 28, 29)DRSHAFT, 2 DRIVE W ASSY (SMOOTH) (INCL. 28, 29)
-
281012945 FLANGETTE W/SCREWS ASSYFLANGETTE W/SCREWS ASSY
-
293280019 BUSHING METAL SPEEDOMETERBUSHING METAL SPEEDOMETER
-
305243529 FLANGETTE OFFSET, W/HOLEFLANGETTE OFFSET, W/HOLE
-
313280017 KEY, SPEEDOMETER SQUAREKEY, SPEEDOMETER SQUARE
-
325830012 GASKET, DRIVE ADAPTORGASKET, DRIVE ADAPTOR
-
333280116 ADAPTER, DRIVE W/ZERKADAPTER, DRIVE W/ZERK
