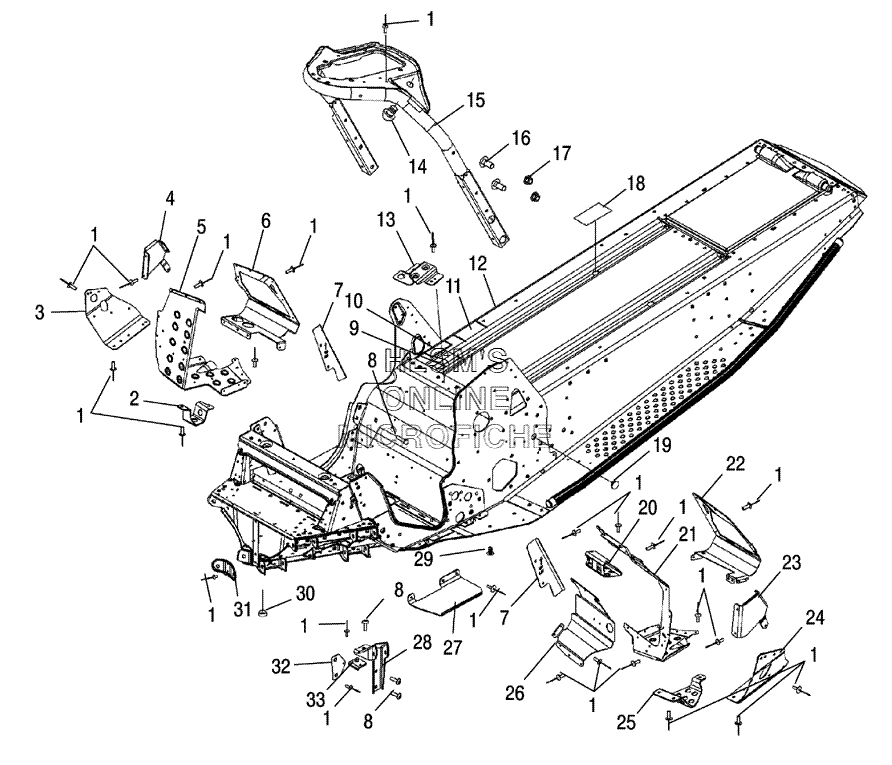

CHASSIS - FRONT для Polaris 700 Classic (S06PD7HS) - 2006 года выпуска
-
№АртикулНазвание
-
17661637 RIVET, INTERLOCKRIVET, INTERLOCK
-
25248945 LEG SUPPORT (RIGHT)LEG SUPPORT (RIGHT)
-
35248808 SUPPORT FOOTREST (LOWER/RIGHT)SUPPORT FOOTREST (LOWER/RIGHT)
-
45248401 SUPPORT FOOTREST (BUMPER/LEFT)SUPPORT FOOTREST (BUMPER/LEFT)
-
51015091 FOOTREST ASSY WITH STUD (RIGHT)FOOTREST ASSY WITH STUD (RIGHT)
-
65248477 TOECLIP (RIGHT)TOECLIP (RIGHT)
-
75249677 CLIP BULKHEAD SIDE (LEFT)CLIP BULKHEAD SIDE (LEFT)
-
75250044 CLIP BULKHEAD SIDE (RIGHT)CLIP BULKHEAD SIDE (RIGHT)
-
87517810 SCREWSCREW
-
95812612 SEAL TUNNEL WEARSTRIPSEAL TUNNEL WEARSTRIP
-
105812527 TAPE POLYETHYLENE (1 1/2X1 1/2)TAPE POLYETHYLENE (1 1/2X1 1/2)
-
115810290 PAD, BATTERYPAD, BATTERY
-
121015032-309 CHASSIS ASSY, RC9, M10, NATCHASSIS ASSY, RC9, M10, NAT
-
135249094 BRACKET OIL BOTTLE (LOWER)BRACKET OIL BOTTLE (LOWER)
-
145411576 DAMPENER VIBRATION WITH RIBSDAMPENER VIBRATION WITH RIBS
-
151015022-067 STEERING HOOP, RC 9 (BLACK)STEERING HOOP, RC 9 (BLACK)
-
167512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
177542343 NUT, FLANGENUT, FLANGE
-
185810947 FOAM, SEALFOAM, SEAL
-
197081085 PLUG BARBED (.625)PLUG BARBED (.625)
-
205248405 MOUNT PLENUMMOUNT PLENUM
-
211015301 FOOTREST WITH STUD ASSY (LEFT)FOOTREST WITH STUD ASSY (LEFT)
-
225248476 TOECLIP (LEFT)TOECLIP (LEFT)
-
235248402 SUPPORT FOOTREST, BUMPER (RIGHT)SUPPORT FOOTREST, BUMPER (RIGHT)
-
245248807 SUPPORT FOOTREST (LOWER/LEFT)SUPPORT FOOTREST (LOWER/LEFT)
-
255248403 LEG SUPPORT (LEFT)LEG SUPPORT (LEFT)
-
265247420 BRACKET, CLUTCH GUARDBRACKET, CLUTCH GUARD
-
275249757 GUARD BELTGUARD BELT
-
281014795-067 TOWER, SHOCK (BLACK/LEFT)TOWER, SHOCK (BLACK/LEFT)
-
281014796-067 TOWER, SHOCK (BLACK/RIGHT)TOWER, SHOCK (BLACK/RIGHT)
-
297670067 CLIP, DARTCLIP, DART
-
307081076 PLUG HOLE (1.25)PLUG HOLE (1.25)
-
315247372 BRACE A-ARM (FRONT/LOWER)BRACE A-ARM (FRONT/LOWER)
-
321014820 PLATE, NUT ASSYPLATE, NUT ASSY
-
331014821 PLATE, NUT ASSY (LEFT)PLATE, NUT ASSY (LEFT)
-
331014822 PLATE, NUT ASSY (RIGHT)PLATE, NUT ASSY (RIGHT)
