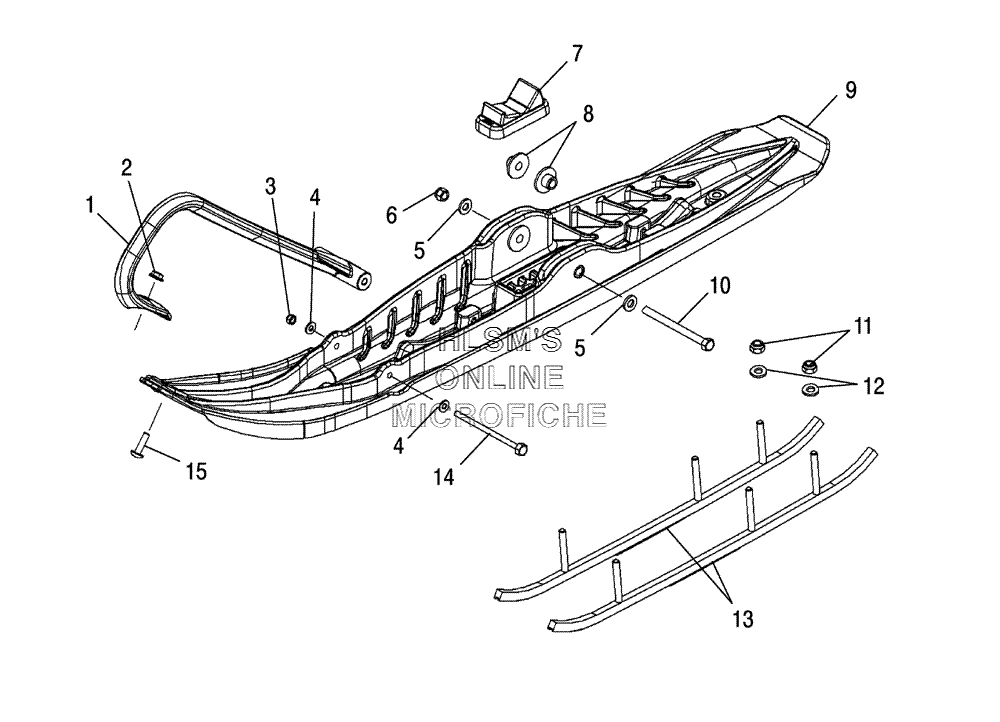

SKI ASSEMBLY - M10 для Polaris 700 Classic (S06PD7HS) - 2006 года выпуска
-
№АртикулНазвание
-
15435681-513 TOE PLASTIC, SKI, SPRSNC (BLUE NON METALLIC)TOE PLASTIC, SKI, SPRSNC (BLUE NON METALLIC)
-
27542321 NUT, FLANGENUT, FLANGE
-
37542122 NUT NYLOKNUT NYLOK
-
47558301 WASHER, FLATWASHER, FLAT
-
57556130 WASHERWASHER
-
67547263 NUT NYLOKNUT NYLOK
-
75412864 STOP SKI RUBBERSTOP SKI RUBBER
-
85134797 BUSHING PLSTC SKI, LONG (.390 ID)BUSHING PLSTC SKI, LONG (.390 ID)
-
91822808-070 SKI, PLASTIC ASSY (BLACK) (INCL. 8)SKI, PLASTIC ASSY (BLACK) (INCL. 8)
-
107518481 SCREW, HEXAGON CAPSCREW, HEXAGON CAP
-
117542324 NUT, NYLOKNUT, NYLOK
-
127555843 WASHER, WROUGHTWASHER, WROUGHT
-
132875676 SKAG KIT, 4'' (60 DEG) (PAIR)SKAG KIT, 4'' (60 DEG) (PAIR)
-
147518047 BOLT, HEXAGON CAPBOLT, HEXAGON CAP
-
157516317 SCREW, NYLONSCREW, NYLON
