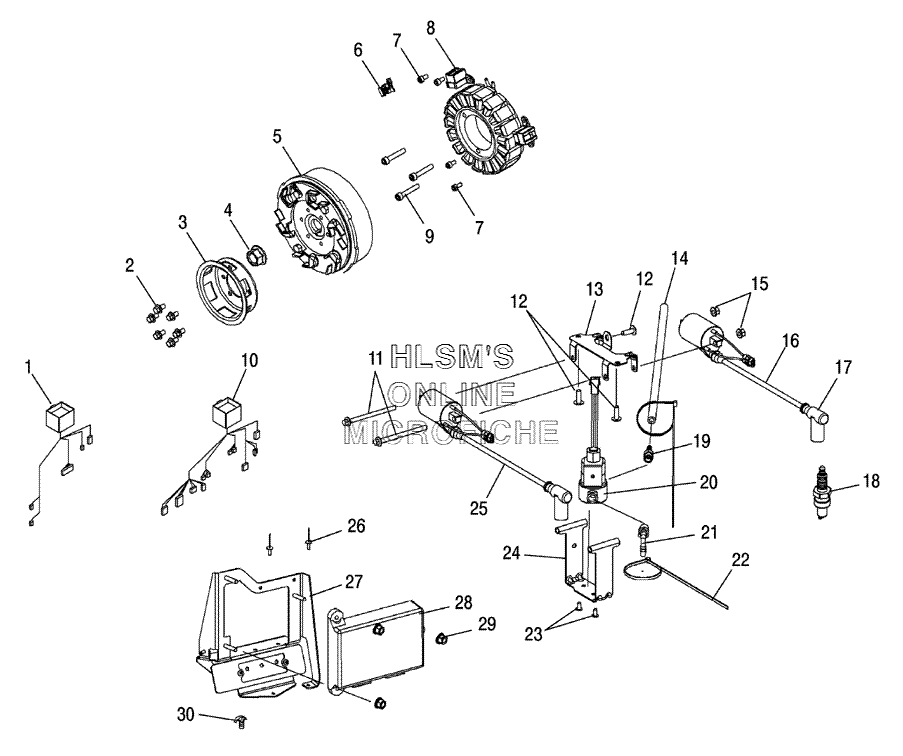

ELECTRICAL - MAGNETO ASSEMBLY W/ COIL для Polaris 700 Classic (S06PD7HS) - 2006 года выпуска
-
№АртикулНазвание
-
14011337 HARNESS IGNITION, ENGINEHARNESS IGNITION, ENGINE
-
27517278 SCREWSCREW
-
33021618 PULLEY STARTER, RECOILPULLEY STARTER, RECOIL
-
47518299 NUT FLANGENUT FLANGE
-
54011211 FLYWHEELFLYWHEEL
-
65435505 SHIELD WIRESHIELD WIRE
-
77517847 SCREWSCREW
-
84011463 STATOR KOKSTATOR KOK
-
97517848 SCREWSCREW
-
104011336 HARNESS IGNITION, ENGINEHARNESS IGNITION, ENGINE
-
117518407 SCREW, FLANGESCREW, FLANGE
-
127515199 SCREWSCREW
-
135248548 BRACKET ENGINE COILBRACKET ENGINE COIL
-
148450040-600 LINE FUEL (1/4 ID 600 CM)LINE FUEL (1/4 ID 600 CM)
-
157547274 NUT FLANGE, NYLOK (M6)NUT FLANGE, NYLOK (M6)
-
164011104 COIL IGNITION, PTOCOIL IGNITION, PTO
-
174020159 CAP, SPARK PLUGCAP, SPARK PLUG
-
183070190 SPARK PLUG, CHAMPIONSPARK PLUG, CHAMPION
-
197050001 FITTING (1/4'' NPT TO 1/4'' BARB)FITTING (1/4'' NPT TO 1/4'' BARB)
-
204011244 SOLENOID EV (1/4 DIA)SOLENOID EV (1/4 DIA)
-
217050000 FITTING (1/4''NPT TO 1/4''BARB90Ш)FITTING (1/4''NPT TO 1/4''BARB90Ш)
-
227080138 CABLE TIECABLE TIE
-
237518321 BOLTBOLT
-
245248537 BRACKET EXHAUST, SOLENOIDBRACKET EXHAUST, SOLENOID
-
254011105 COIL IGNITION, MAGCOIL IGNITION, MAG
-
267661637 RIVET, INTERLOCKRIVET, INTERLOCK
-
271015185 ECU BRACKET ASSYECU BRACKET ASSY
-
284011342 ENGINE CONTROL UNIT (KOK 4 INJ)ENGINE CONTROL UNIT (KOK 4 INJ)
-
297542153 NUT, NYLOK, FLANGEDNUT, NYLOK, FLANGED
-
307080965 MOUNT CABLE TIE (.25)MOUNT CABLE TIE (.25)
