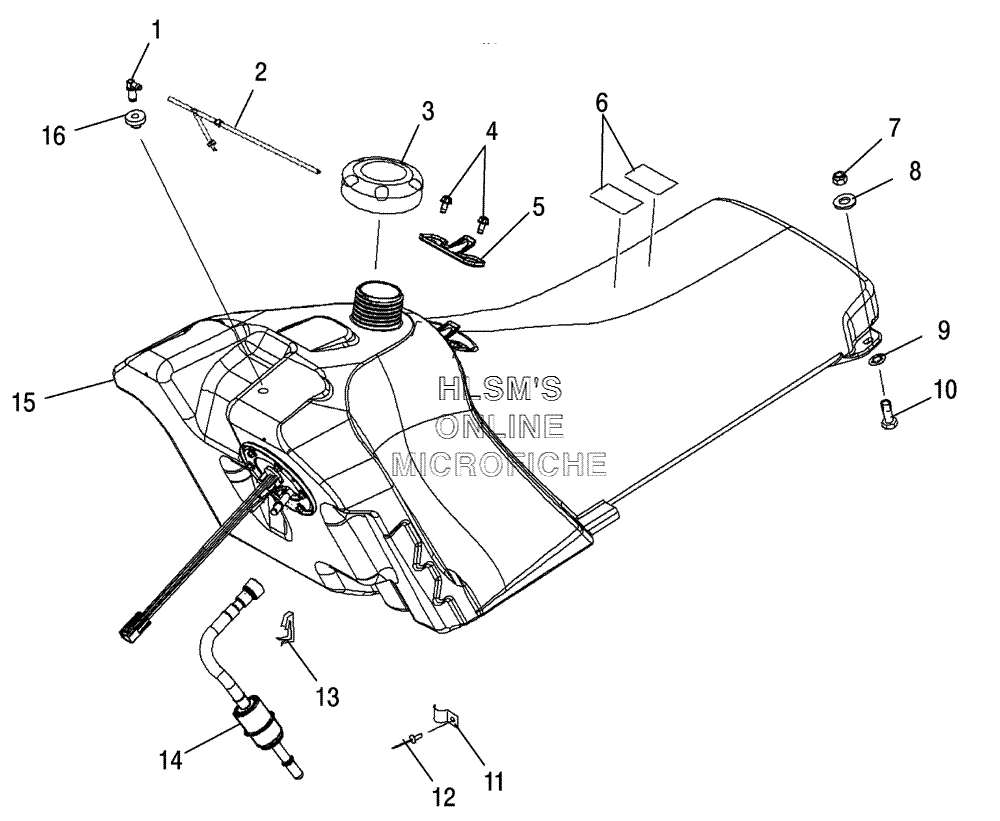

FUEL TANK для Polaris 700 Classic (S06PD7HS) - 2006 года выпуска
-
№АртикулНазвание
-
17052380 FITTING VENT (.075X.187)FITTING VENT (.075X.187)
-
22633187 VENT, FUEL TANK ASSYVENT, FUEL TANK ASSY
-
35435534 CAP FUEL TANK ''PREMIUM''CAP FUEL TANK ''PREMIUM''
-
47512208 SCREWSCREW
-
55247431 BRACKET SEAT MOUNTBRACKET SEAT MOUNT
-
65810290 PAD, BATTERYPAD, BATTERY
-
77542122 NUT NYLOKNUT NYLOK
-
87555960 WASHER, FLATWASHER, FLAT
-
97670154 RETAINER BOLT (1/4-20)RETAINER BOLT (1/4-20)
-
107515203 BOLTBOLT
-
117080393 CLIP, HALFCLIP, HALF
-
127661637 RIVET, INTERLOCKRIVET, INTERLOCK
-
137081316 CLIP SECONDARY WITHOUT TETHER (5/16)CLIP SECONDARY WITHOUT TETHER (5/16)
-
142520377 FUEL FILTER/HOSE ASSYFUEL FILTER/HOSE ASSY
-
152520639 FUEL TANK ASSYFUEL TANK ASSY
-
167052362 GROMMET FLANGED (.36X.56X1.06)GROMMET FLANGED (.36X.56X1.06)
