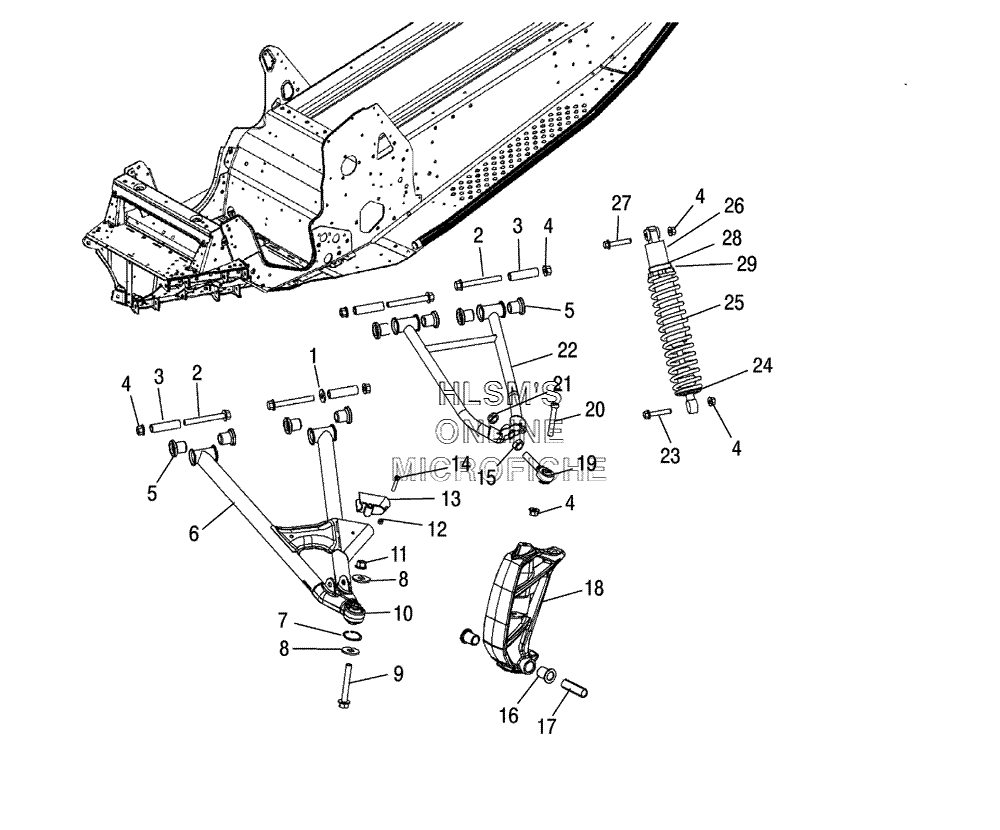

SUSPENSION - FRONT для Polaris 700 Classic (S06PD7HS) - 2006 года выпуска
-
№АртикулНазвание
-
17555893 WASHER, FLATWASHER, FLAT
-
27518384 SCREWSCREW
-
35133860 SHAFT PIVOTSHAFT PIVOT
-
47547180 NUT FLANGED, NYLONNUT FLANGED, NYLON
-
55434932 BUSHING PIVOTBUSHING PIVOT
-
62203021-385 LCA, FUSION KIT (LEFT/CLOUD SLVER) (INCL. 3 7, 12 14)LCA, FUSION KIT (LEFT/CLOUD SLVER) (INCL. 3 7, 12 14)
-
62203022-385 LCA, FUSION KIT (RIGHT/CLOUD SLVER) (INCL. 3 7, 12 14)LCA, FUSION KIT (RIGHT/CLOUD SLVER) (INCL. 3 7, 12 14)
-
77710539 RING RETAINING, HOUSING (1.25 ID)RING RETAINING, HOUSING (1.25 ID)
-
87556153 WASHERWASHER
-
97518478 SCREWSCREW
-
102203107 BEARING, SPHERICAL KIT (LOWER) (INCL. 7)BEARING, SPHERICAL KIT (LOWER) (INCL. 7)
-
117547344 NUT HEXAGONNUT HEXAGON
-
127541925 NUT, NYLOKNUT, NYLOK
-
135435522 SLIDE SWAY BAR (9/16)SLIDE SWAY BAR (9/16)
-
147510504 SCREWSCREW
-
157542711 NUT JAMNUT JAM
-
165133983 BUSHING SKI PIVOTBUSHING SKI PIVOT
-
175010158 BUSHING, PIVOTBUSHING, PIVOT
-
181822795 SPINDLE, FUSION ASSY (LEFT) (INCL. 16)SPINDLE, FUSION ASSY (LEFT) (INCL. 16)
-
181822796 SPINDLE, FUSION ASSY (RIGHT) (INCL. 16)SPINDLE, FUSION ASSY (RIGHT) (INCL. 16)
-
197061124 ROD END (1/2) (30Ш)ROD END (1/2) (30Ш)
-
207518428 SCREWSCREW
-
217547104 NUTNUT
-
222203019-385 UCA, FUSION KIT (LEFT/CLOUD SLVER) (INCL. 3, 5, 12, 15, 19, 21)UCA, FUSION KIT (LEFT/CLOUD SLVER) (INCL. 3, 5, 12, 15, 19, 21)
-
222203020-385 UCA, FUSION KIT (RIGHT/CLOUD SILVER) (INCL. 3, 5, 12, 15, 19, 21)UCA, FUSION KIT (RIGHT/CLOUD SILVER) (INCL. 3, 5, 12, 15, 19, 21)
-
237518278 SCREWSCREW
-
245630580 RETAINER, SPRING, SLOTTEDRETAINER, SPRING, SLOTTED
-
257041550-067 SPRING, COMP, IFSSPRING, COMP, IFS
-
267043054 SHOCK IFS, ARVIN TWIN TUBE AFXSHOCK IFS, ARVIN TWIN TUBE AFX
-
277518554 SCREWSCREW
-
281500063 RETAINER, SPRING, BODY, THREADEDRETAINER, SPRING, BODY, THREADED
-
295431734 RING, SPRING PRELOAD ADJUSTRING, SPRING PRELOAD ADJUST
