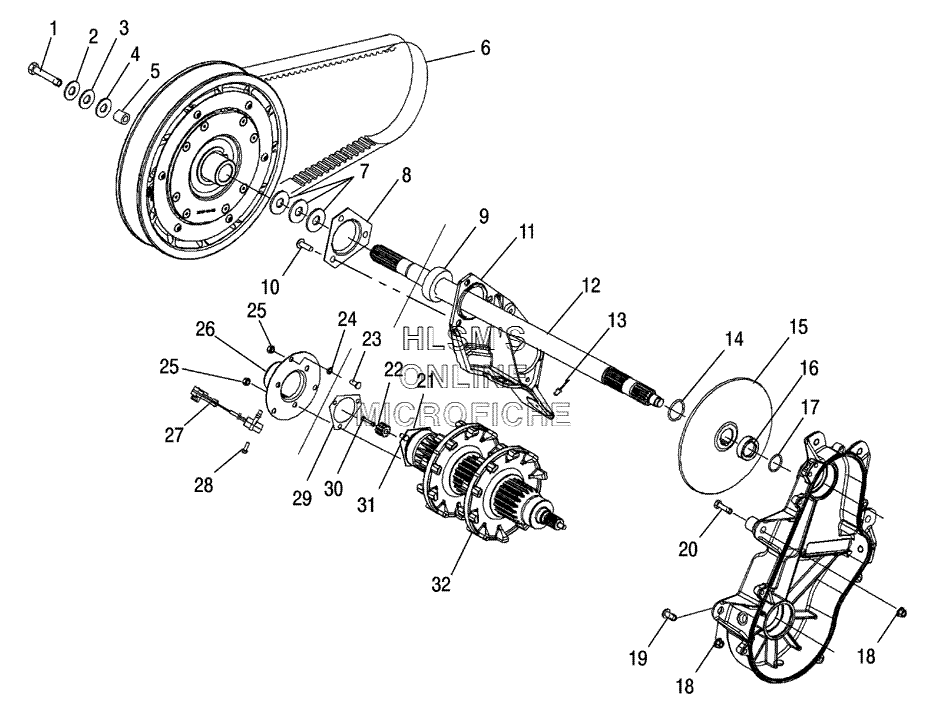

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris 700 Classic (S06PD7HS) - 2006 года выпуска
-
№АртикулНазвание
-
17515369 BOLTBOLT
-
27555701 WASHER, FLATWASHER, FLAT
-
37555734 WASHER, FLATWASHER, FLAT
-
47555957 WASHERWASHER
-
55134371 SPACER INPUT SHAFT (.875 OD)SPACER INPUT SHAFT (.875 OD)
-
63211080 BELT DRIVEBELT DRIVE
-
77555864 WASHERWASHER
-
77555917 WASHERWASHER
-
77556509 BUSHINGBUSHING
-
85243529 FLANGETTE OFFSET WITH HOLEFLANGETTE OFFSET WITH HOLE
-
93514352 BEARING (1XM52XM15)BEARING (1XM52XM15)
-
107518444 SCREWSCREW
-
115134870 SUPPORT ENGINE MACH (LEFT/REAR)SUPPORT ENGINE MACH (LEFT/REAR)
-
121332336 JACKSHAFT WITH BEARING ASSY (15/21 SPL) (INCL. 9)JACKSHAFT WITH BEARING ASSY (15/21 SPL) (INCL. 9)
-
137661130 RIVETRIVET
-
147710422 RING, RETAININGRING, RETAINING
-
152202874 SERVICE DISC KITSERVICE DISC KIT
-
165135231 SLEEVE SEAL, 45 DEGREE CHAMFERSLEEVE SEAL, 45 DEGREE CHAMFER
-
175410613 O RINGO RING
-
187547180 NUT FLANGED, NYLONNUT FLANGED, NYLON
-
197518494 BOLT CARRIAGEBOLT CARRIAGE
-
207518268 BOLT CARRIAGEBOLT CARRIAGE
-
213514448 BEARING (25MM)BEARING (25MM)
-
225240013 WHEEL PICKUP, SPEEDOMETER (9 TEETH)WHEEL PICKUP, SPEEDOMETER (9 TEETH)
-
237518049 BOLT CARRIAGEBOLT CARRIAGE
-
247547030 PALNUTPALNUT
-
257542324 NUT, NYLOKNUT, NYLOK
-
265246960 HOUSING DRIVE PICKUPHOUSING DRIVE PICKUP
-
272410376 SENSOR SPEED PICKUPSENSOR SPEED PICKUP
-
287512232 BOLTBOLT
-
295811095 GASKET, JACKSHAFT (BLACK)GASKET, JACKSHAFT (BLACK)
-
307516733 SCREWSCREW
-
311014299 FLANGETTE WITH SCREWS ASSYFLANGETTE WITH SCREWS ASSY
-
321590411 DRIVESHAFT TUBULAR REINFORCEMENT ASSY (9 TEETH)DRIVESHAFT TUBULAR REINFORCEMENT ASSY (9 TEETH)
