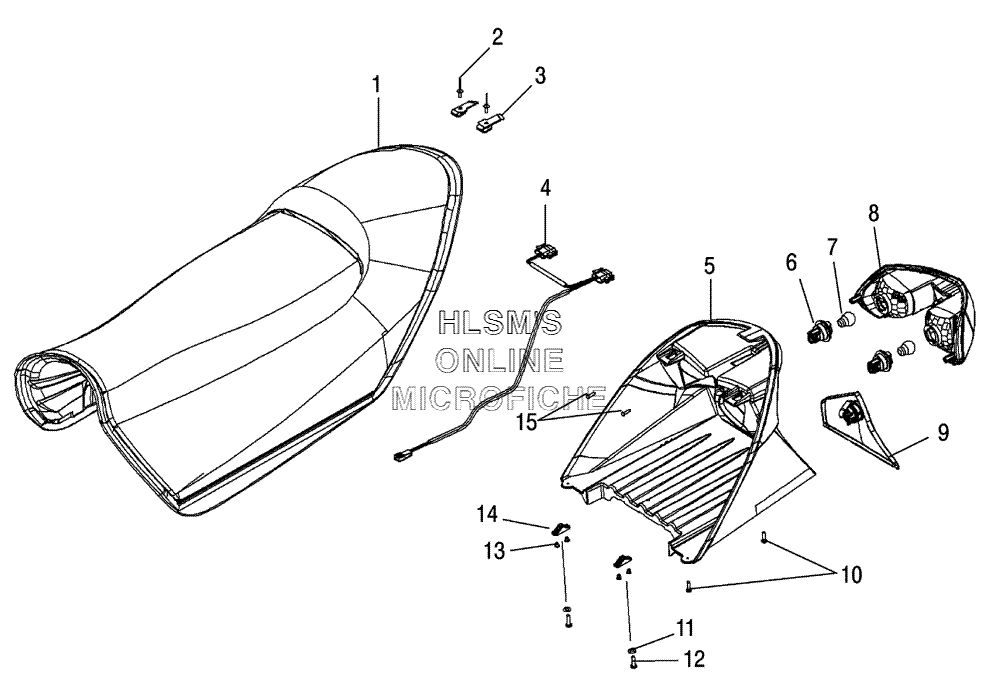

SEAT W/ TAILLIGHT для Polaris 700 Classic (S06PD7HS) - 2006 года выпуска
-
№АртикулНазвание
-
12683667 SEAT ASSYSEAT ASSY
-
12683668 SEAT COVERSEAT COVER
-
27621418 RIVET, POPRIVET, POP
-
35248566 BRACKET SEAT BASE (REAR/LEFT)BRACKET SEAT BASE (REAR/LEFT)
-
35248567 BRACKET SEAT BASE (REAR/RIGHT)BRACKET SEAT BASE (REAR/RIGHT)
-
42461162 HARNESS TAILLIGHTHARNESS TAILLIGHT
-
52632844-070 SEAT WEDGE ASSY (BLACK)SEAT WEDGE ASSY (BLACK)
-
64011009 SOCKET BULB, AXIALSOCKET BULB, AXIAL
-
74010764 BULB TAILLIGHTBULB TAILLIGHT
-
82410378 TAILLIGHT ASSYTAILLIGHT ASSY
-
92632826-070 DOOR ASSY, SEAT WEDGE (BLACK)DOOR ASSY, SEAT WEDGE (BLACK)
-
107518269 SCREWSCREW
-
117558301 WASHER, FLATWASHER, FLAT
-
127517219 SCREWSCREW
-
137621341 RIVETRIVET
-
145631194 NUT SEATNUT SEAT
-
157512026 SCREWSCREW
