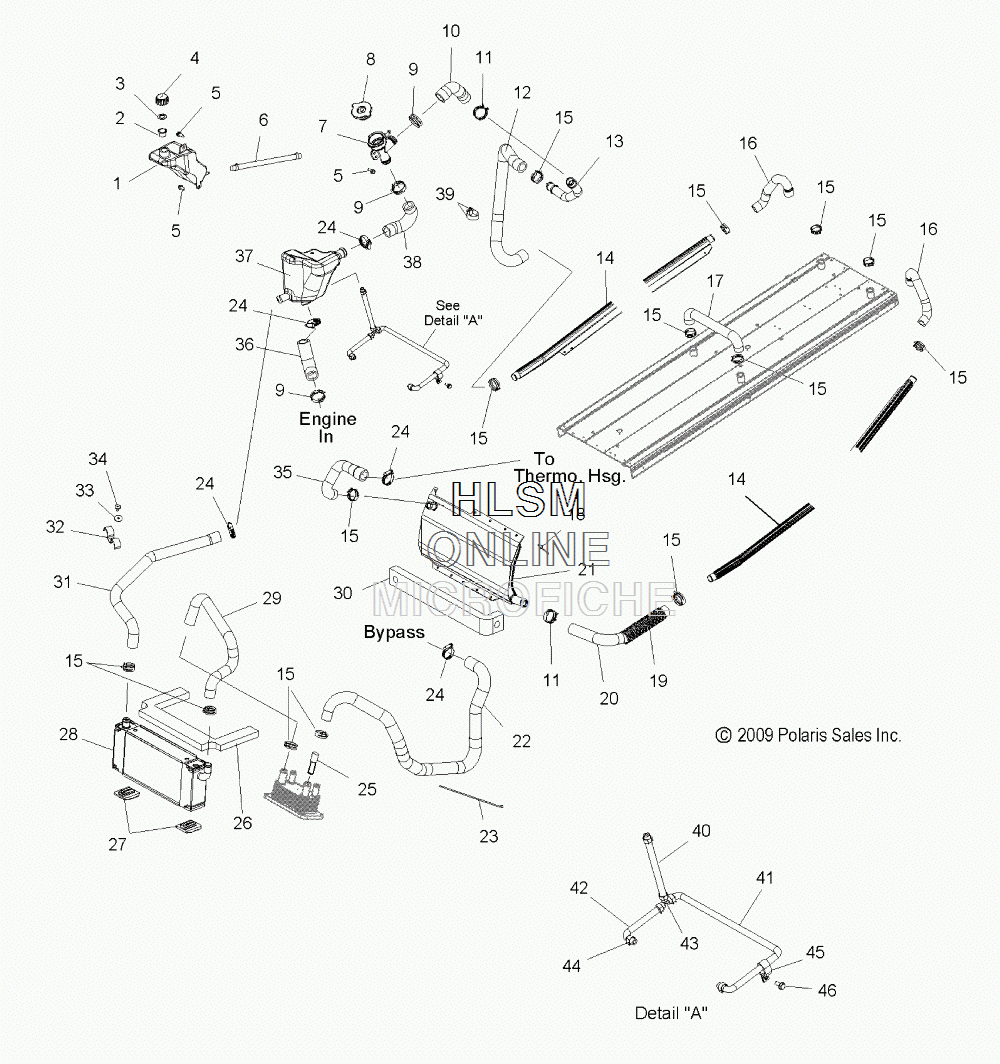

COOLING SYSTEM для Polaris TURBO IQ LX [S12PD7FSL] - 2012 года выпуска
-
№АртикулНазвание
-
15436215 BOTTLE, COOLANTBOTTLE, COOLANT
-
25433774 PLUG, CAPPLUG, CAP
-
35810279 GASKET, OVERFLOW CAPGASKET, OVERFLOW CAP
-
45430743 CAP, OVERFLOW BOTTLECAP, OVERFLOW BOTTLE
-
57512095 SCREWSCREW
-
68450003-1525 LINE, FUELLINE, FUEL
-
67080307 CLAMP, HOSECLAMP, HOSE
-
75433364 FILLER, REMOTEFILLER, REMOTE
-
81240508 CAP, PRESSURECAP, PRESSURE
-
97080844 CLAMP, SPRING BANDCLAMP, SPRING BAND
-
105413568 HOSE, TUBE/FILLERHOSE, TUBE/FILLER
-
117080843 CLAMP, SPRING BANDCLAMP, SPRING BAND
-
125412851 HOSE, GRIPPER/TUBEHOSE, GRIPPER/TUBE
-
135335651 TUBE, GRIPPER/FILLERTUBE, GRIPPER/FILLER
-
145136130 EXCHANGER, COOLER, LEFT HANDEXCHANGER, COOLER, LEFT HAND
-
145136131 EXCHANGER, COOLER, RIGHT HANDEXCHANGER, COOLER, RIGHT HAND
-
157080842 CLAMP, SPRING BANDCLAMP, SPRING BAND
-
165413228 HOSE, EXCHANGER/TUNNEL COOLER, LEFT HANDHOSE, EXCHANGER/TUNNEL COOLER, LEFT HAND
-
165413229 HOSE, EXCHANGER/TUNNEL COOLER, RIGHT HANDHOSE, EXCHANGER/TUNNEL COOLER, RIGHT HAND
-
175413240 HOSE, CROSSOVER, TUNNELHOSE, CROSSOVER, TUNNEL
-
187661637 RIVETRIVET
-
195521287-15 CONDUIT, FLEXCONDUIT, FLEX
-
205414053 HOSE, CENTER COOLER/GRIPPER, LEFT HANDHOSE, CENTER COOLER/GRIPPER, LEFT HAND
-
212520575 COOLER, BULKHEADCOOLER, BULKHEAD
-
225413539 HOSE, ENGINE OUT/OIL COOLERHOSE, ENGINE OUT/OIL COOLER
-
237080138 CABLE TIECABLE TIE
-
247081192 CLAMP, HOSE (WORM DRIVE)CLAMP, HOSE (WORM DRIVE)
-
255136216 RESTRICTOR, COOLANTRESTRICTOR, COOLANT
-
265812496 MOUNT, RADIATOR, FOAMMOUNT, RADIATOR, FOAM
-
275412513 MOUNT, RADIATORMOUNT, RADIATOR
-
281240580 ASM., RADIATORASM., RADIATOR
-
295414050 HOSE, OIL COOLER/RADIATORHOSE, OIL COOLER/RADIATOR
-
305812845 SEAL, FRONT CLOSEOFF COOLERSEAL, FRONT CLOSEOFF COOLER
-
315414051 HOSE, RESERVOIR/RADIATORHOSE, RESERVOIR/RADIATOR
-
327080898 CLAMP, DOUBLE HOSECLAMP, DOUBLE HOSE
-
337556044 WASHERWASHER
-
347621467 RIVETRIVET
-
355412984 HOSE, ENGINE OUT/CENTER COOLERHOSE, ENGINE OUT/CENTER COOLER
-
365413567 HOSE, RESERVOIR/ENGINE INHOSE, RESERVOIR/ENGINE IN
-
375437634 RESERVOIR, COOLANTRESERVOIR, COOLANT
-
375813414 FOIL, COOLANT RESERVOIRFOIL, COOLANT RESERVOIR
-
385413534 HOSE, FILLER/RESERVOIRHOSE, FILLER/RESERVOIR
-
397080807 CLAMP, HOSECLAMP, HOSE
-
397542153 NUTNUT
-
408450040-600 LINE, FUELLINE, FUEL
-
415413817 HOSE, HEAD BLEED, PTOHOSE, HEAD BLEED, PTO
-
425413816 HOSE, HEAD BLEED, MAGHOSE, HEAD BLEED, MAG
-
437052468 FITTING, TEEFITTING, TEE
-
447080003 CLAMP, HOSECLAMP, HOSE
-
457081364 CLAMP, DOUBLE TUBECLAMP, DOUBLE TUBE
-
467517915 SCREWSCREW
