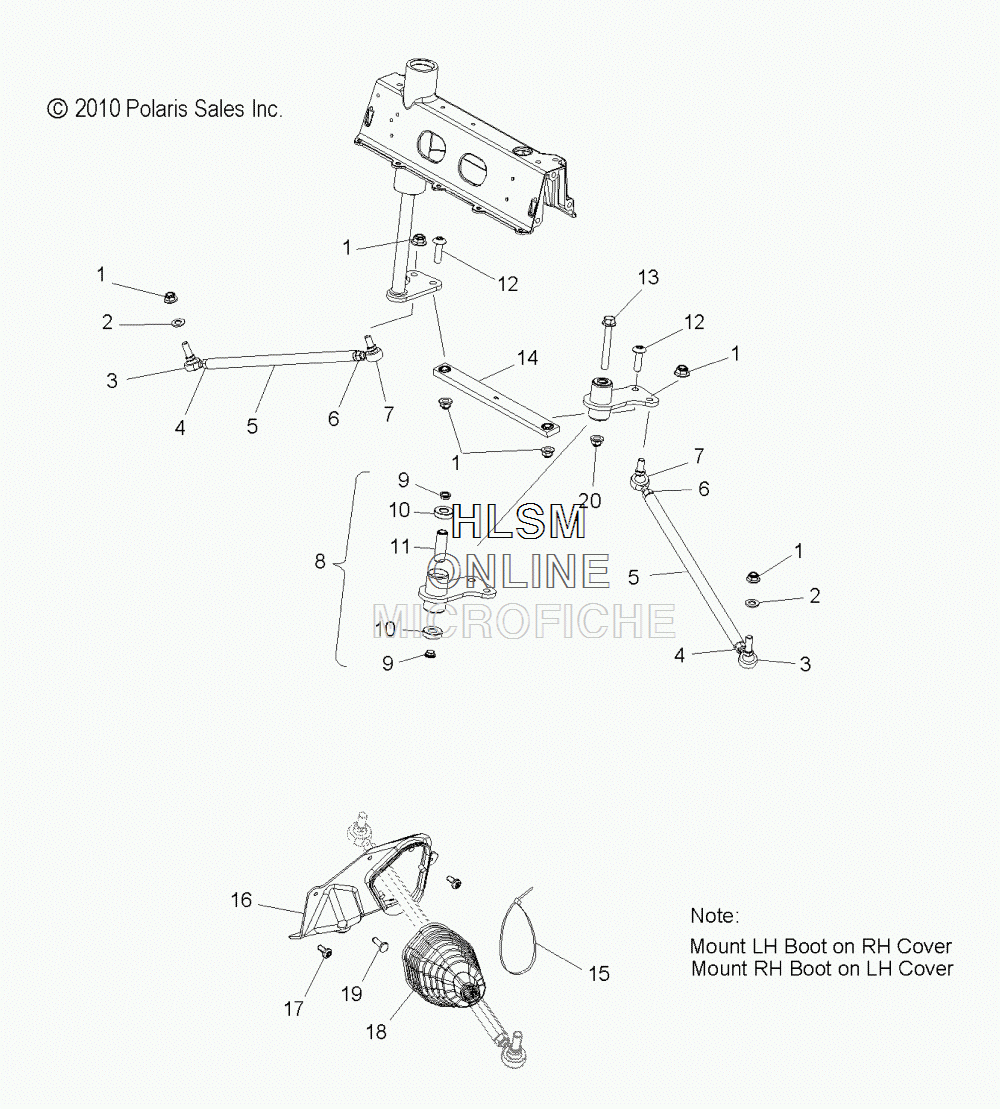

STEERING - LOWER W/TIE RODS для Polaris TURBO IQ LX [S12PD7FSL] - 2012 года выпуска`
-
№АртикулНазвание
-
17547263 NUT, FLANGENUT, FLANGE
-
27555806 WASHER, FLATWASHER, FLAT
-
37061164 ROD END, RIGHT HANDROD END, RIGHT HAND
-
47542401 NUTNUT
-
55334667 TIE RODTIE ROD
-
67542424 NUT, LEFT HANDNUT, LEFT HAND
-
77061163 ROD END, LEFT HANDROD END, LEFT HAND
-
81821419 ASM., IDLER ARMASM., IDLER ARM
-
95132106 BUSHING, REDUCERBUSHING, REDUCER
-
103514320 BEARING, BALLBEARING, BALL
-
115135452 SPACER, TUBESPACER, TUBE
-
127518372 SCREWSCREW
-
137518277 SCREWSCREW
-
147061152 LINK, FIXEDLINK, FIXED
-
157080761 STRAP, PANDUIT, 14 INCHSTRAP, PANDUIT, 14 INCH
-
165436574 COVER, TIE ROD BOOT, LEFT HANDCOVER, TIE ROD BOOT, LEFT HAND
-
165436575 COVER, TIE ROD BOOT, RIGHT HANDCOVER, TIE ROD BOOT, RIGHT HAND
-
177518176 SCREWSCREW
-
185413793 BOOT, TIE ROD, LEFT HANDBOOT, TIE ROD, LEFT HAND
-
185413794 BOOT, TIE ROD, RIGHT HANDBOOT, TIE ROD, RIGHT HAND
-
197670125 FASTENER, CLIP, PUSH-ONFASTENER, CLIP, PUSH-ON
-
207547180 NUT, FLANGENUT, FLANGE
