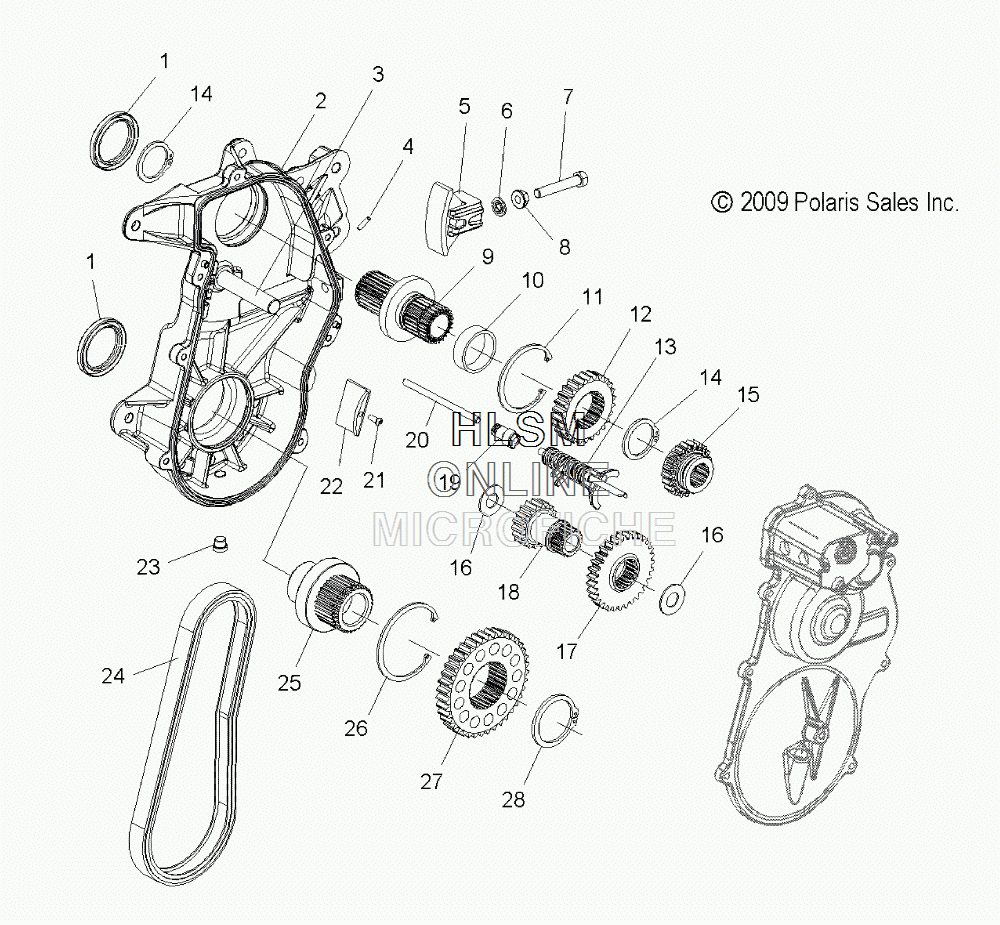

GEARCASE ASSEMBLY для Polaris TURBO IQ LX [S12PD7FSL] - 2012 года выпуска
-
№АртикулНазвание
-
13610108 SEAL, OILSEAL, OIL
-
21332612 ASM., CASE, SVC (INCL. 1,3,4,6-8)ASM., CASE, SVC (INCL. 1,3,4,6-8)
-
35136412 SHAFT, PINIONSHAFT, PINION
-
45334764 TUBE, VENTTUBE, VENT
-
51332427 ASM., TIGHTENER, CHAINASM., TIGHTENER, CHAIN
-
67556340 WASHER, THREAD SEALWASHER, THREAD SEAL
-
77515511 SCREWSCREW
-
87547304 NUTNUT
-
91332485 ASM., HUB CARRIER, UPPERASM., HUB CARRIER, UPPER
-
93514471 BEARING, BALLBEARING, BALL
-
93610110 SEAL, OILSEAL, OIL
-
105134518 SPACER, SPROCKET, UPPERSPACER, SPROCKET, UPPER
-
117710552 RING, RETAININGRING, RETAINING
-
123222128 SPROCKET, 24TSPROCKET, 24T
-
131332315 ASM., SHIFT FORKASM., SHIFT FORK
-
147710555 RING, RETAININGRING, RETAINING
-
155135601 PINION, FWD/REVPINION, FWD/REV
-
167556354 WASHERWASHER
-
175135059 GEAR, SPUR, 31TGEAR, SPUR, 31T
-
181332385 SPROCKET, 18T/18T SPLINESPROCKET, 18T/18T SPLINE
-
195435503 INDICATOR, POSITION, HUBINDICATOR, POSITION, HUB
-
205134327 SHAFT, SHIFTSHAFT, SHIFT
-
217512018 SCREWSCREW
-
225250017 PLATE, REVERSE BACKINGPLATE, REVERSE BACKING
-
237052115 PLUG, HEXPLUG, HEX
-
243222134 CHAIN, 80PCHAIN, 80P
-
251332306 ASM., HUB CARRIER, LOWERASM., HUB CARRIER, LOWER
-
253514496 BEARING, BALLBEARING, BALL
-
257710553 RING, RETAININGRING, RETAINING
-
255412229 O-RINGO-RING
-
267710554 RING, RETAININGRING, RETAINING
-
273221186 SPROCKET, 44TSPROCKET, 44T
-
287710558 RING, RETAININGRING, RETAINING
