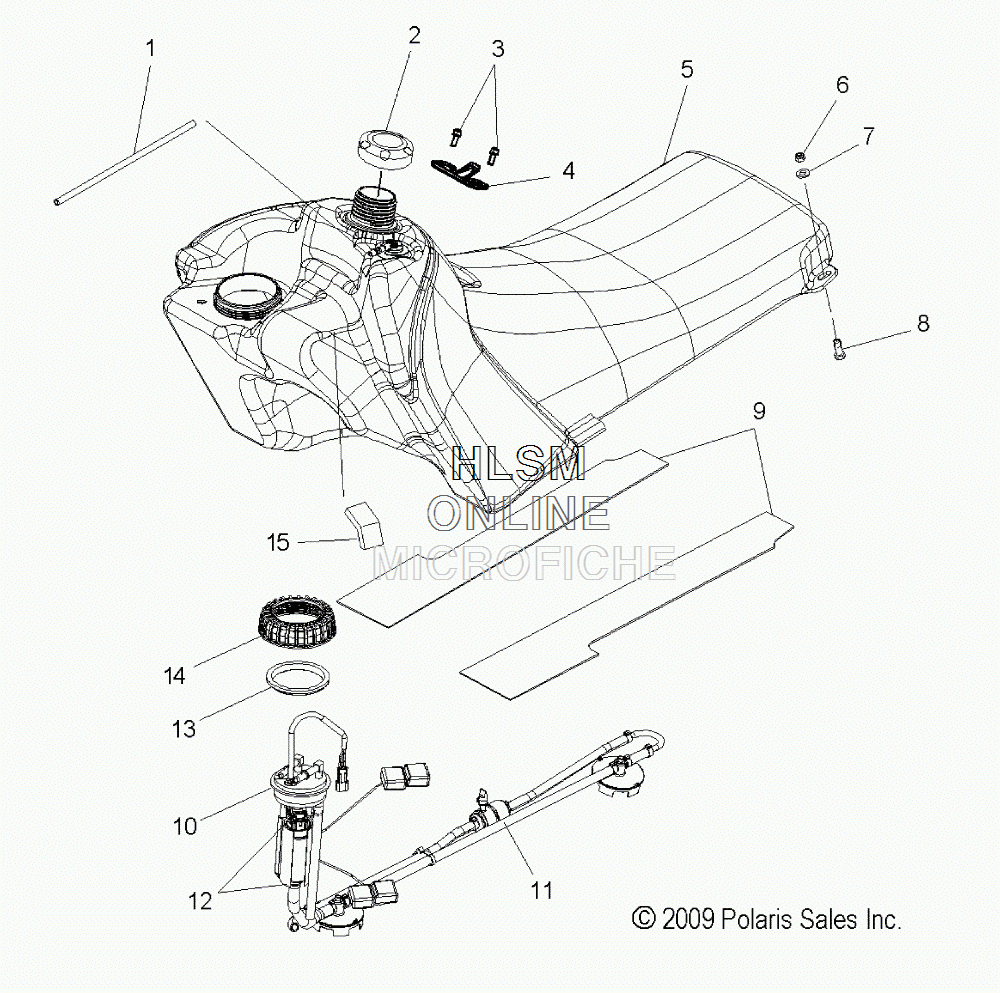

FUEL TANK для Polaris TURBO IQ LX [S12PD7FSL] - 2012 года выпуска
-
№АртикулНазвание
-
18450126-72 LINE, VENT (VENT)LINE, VENT (VENT)
-
25435534 CAP, FUEL TANKCAP, FUEL TANK
-
37515136 SCREWSCREW
-
45247431 BRACKET, SEAT MOUNTBRACKET, SEAT MOUNT
-
52520798 ASM., FUEL TANK (INCL. 11)ASM., FUEL TANK (INCL. 11)
-
67542122 NUT, NYLOKNUT, NYLOK
-
77556386 WASHERWASHER
-
87512263 BOLT, CARRIAGEBOLT, CARRIAGE
-
95813057 PAD, GAS TANK, LEFT HANDPAD, GAS TANK, LEFT HAND
-
95813076 PAD, GAS TANK, RIGHT HANDPAD, GAS TANK, RIGHT HAND
-
102203302 KIT, PUMP/FLANGE, HI CAP, SVC (INCL. PUMP, PICK-UP, CLAMPS)KIT, PUMP/FLANGE, HI CAP, SVC (INCL. PUMP, PICK-UP, CLAMPS)
-
105437046 FLOAT, FUEL SENDERFLOAT, FUEL SENDER
-
112877637 KIT, FUEL PICK-UP W/CLAMPS (INCL. GASKET, #11)KIT, FUEL PICK-UP W/CLAMPS (INCL. GASKET, #11)
-
127081502 CLAMP, OETIKER, 15.3CLAMP, OETIKER, 15.3
-
127081503 CLAMP, OETIKER, 14.5, BLUECLAMP, OETIKER, 14.5, BLUE
-
135413063 GASKET, PFAGASKET, PFA
-
145436628 NUT, PFANUT, PFA
-
155813100 PAD, RUBBERPAD, RUBBER
