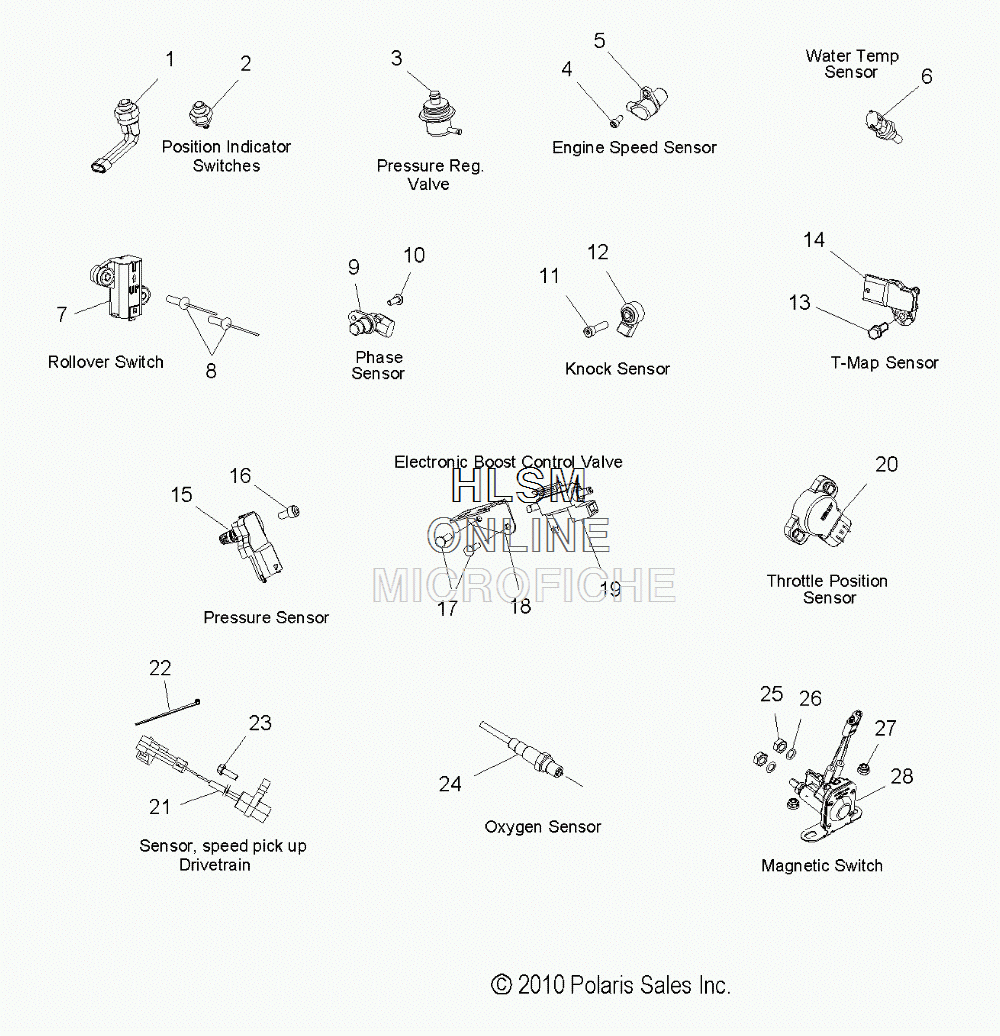

ELECTRICAL - SENSORS AND SWITCHES для Polaris TURBO IQ LX [S12PD7FSL] - 2012 года выпуска
-
№АртикулНазвание
-
14011340 SWITCH, POSITIONSWITCH, POSITION
-
24011005 SWITCH, POSITION INDICATORSWITCH, POSITION INDICATOR
-
30451351 VALVE, PRESSURE REGULATORVALVE, PRESSURE REGULATOR
-
40452957 BOLTBOLT
-
50452956 SENSOR, SPEEDSENSOR, SPEED
-
60451350 SENSOR, WATER TEMPERATURESENSOR, WATER TEMPERATURE
-
74011026 SWITCH, ROLLOVERSWITCH, ROLLOVER
-
87661146 RIVETRIVET
-
90451354 SENSOR, PHASESENSOR, PHASE
-
100451998 BOLTBOLT
-
110451565 SCREWSCREW
-
120451509 SENSOR, KNOCKSENSOR, KNOCK
-
137512095 SCREW (PLENUM)SCREW (PLENUM)
-
137517431 SCREW (AIRBOX)SCREW (AIRBOX)
-
142410422 SENSOR, T-MAP (PLENUM)SENSOR, T-MAP (PLENUM)
-
142410605 SENSOR, T-MAP (AIRBOX)SENSOR, T-MAP (AIRBOX)
-
150451352 SENSOR, PRESSURESENSOR, PRESSURE
-
160452957 BOLTBOLT
-
177512026 SCREWSCREW
-
185249291 BRACKET, MOUNT, WASTEGATE VALVEBRACKET, MOUNT, WASTEGATE VALVE
-
194011285 VALVE, ELECTRONIC BOOST CONTROLVALVE, ELECTRONIC BOOST CONTROL
-
203131591 SENSOR, THROTTLE POSITIONSENSOR, THROTTLE POSITION
-
212410376 SENSOR, SPEED PICK UPSENSOR, SPEED PICK UP
-
227080138 CABLE TIECABLE TIE
-
237512232 SCREWSCREW
-
244011040 SENSOR, OXYGENSENSOR, OXYGEN
-
257542105 NUTNUT
-
267552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
277518287 NUT, NYLON INSERT, FLANGENUT, NYLON INSERT, FLANGE
-
284012358 SWITCH, MAGNETICSWITCH, MAGNETIC
