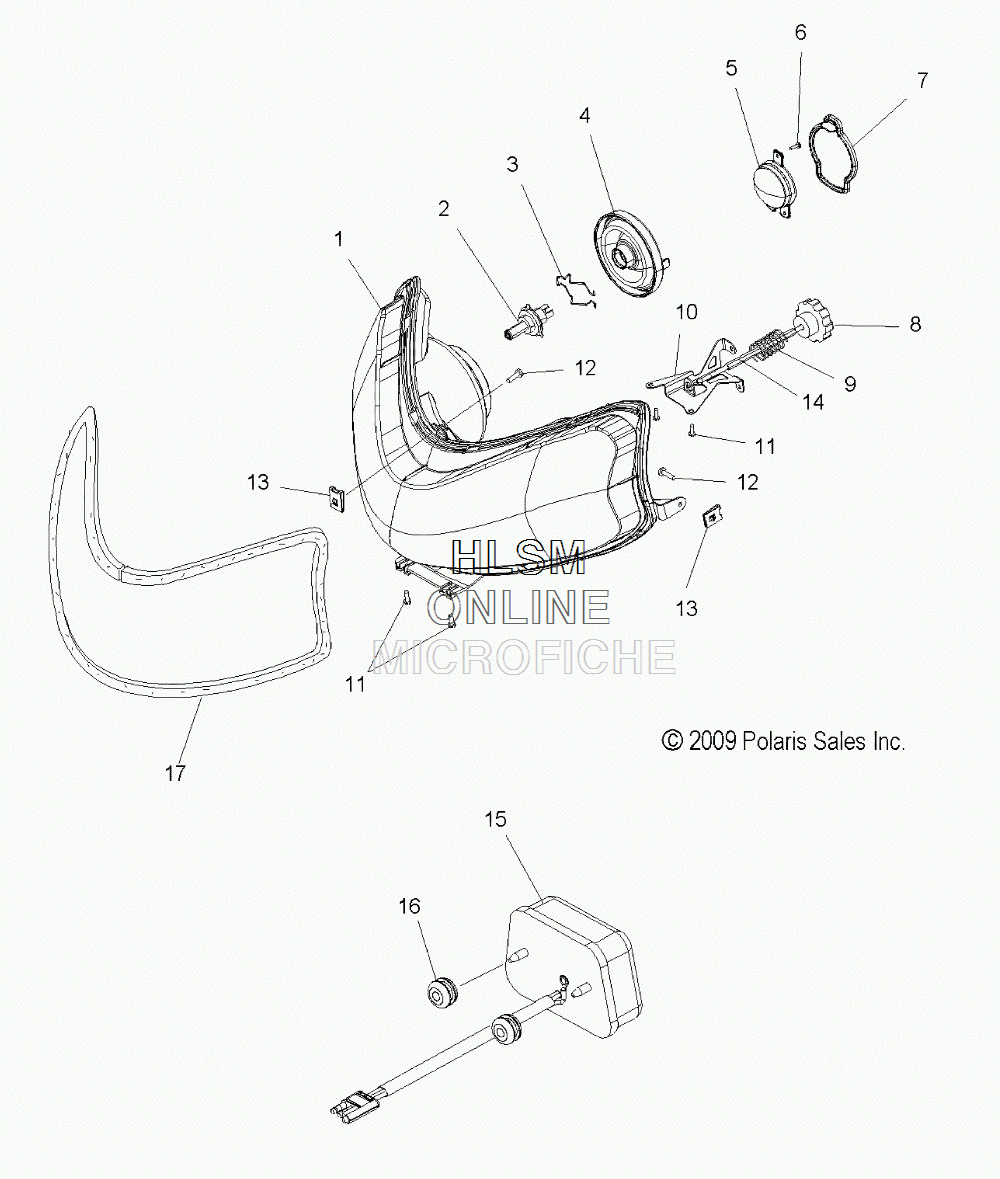

HEADLIGHT AND TAILLIGHT для Polaris TURBO IQ LX [S12PD7FSL] - 2012 года выпуска
-
№АртикулНазвание
-
12410397 ASM., HEADLIGHT (INCL. 2-11,14)ASM., HEADLIGHT (INCL. 2-11,14)
-
22870448 BULB, HEADLIGHTBULB, HEADLIGHT
-
35247526 BAIL, WIREBAIL, WIRE
-
45412479 BOOT, LARGEBOOT, LARGE
-
55435560 DOME, HEADLIGHT, CHROMEDOME, HEADLIGHT, CHROME
-
67518350 SCREWSCREW
-
75412611 COVER, DOMECOVER, DOME
-
85435247 KNOBKNOB
-
97042323 SPRING, COMPRESSIONSPRING, COMPRESSION
-
105248391 RETAINER, HEADLIGHT ADJUSTERRETAINER, HEADLIGHT ADJUSTER
-
117518577 SCREWSCREW
-
127512068 SCREWSCREW
-
137670112 NUT, U-TYPENUT, U-TYPE
-
145136116 ROD, HEADLIGHT ADJUSTROD, HEADLIGHT ADJUST
-
152432034 ASM., TAILLIGHT W/BRAKE LIGHTASM., TAILLIGHT W/BRAKE LIGHT
-
154032046 LENS, TAILLIGHTLENS, TAILLIGHT
-
154032064 BACKING, TAIL/BRAKE LIGHTBACKING, TAIL/BRAKE LIGHT
-
154030043 BULB, TAILLIGHTBULB, TAILLIGHT
-
154032045 GASKET, TAILLIGHTGASKET, TAILLIGHT
-
154032029 SCREWSCREW
-
165412148 GROMMETGROMMET
-
175813420 FOAM, HEADLIGHT SEALFOAM, HEADLIGHT SEAL
