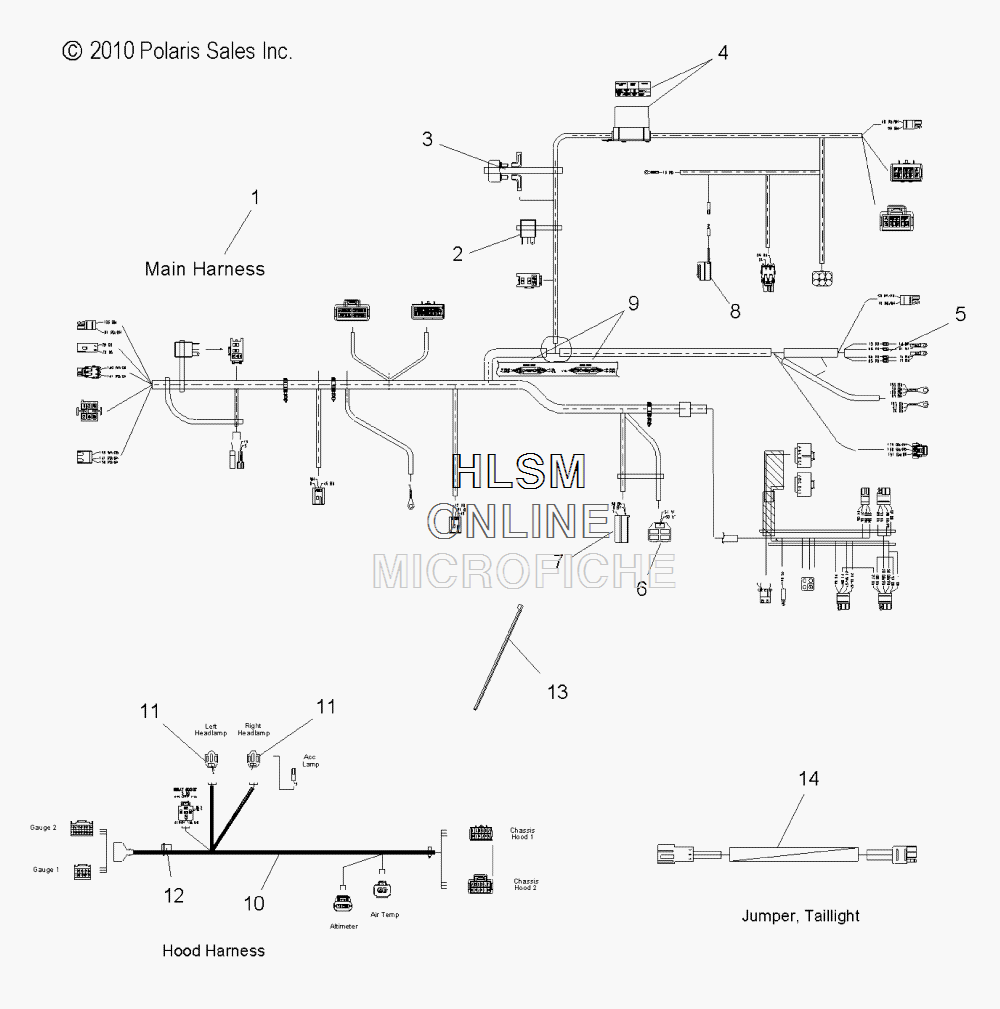

ELECTRICAL - WIRE HARNESS для Polaris TURBO IQ LX [S12PD7FSL] - 2012 года выпуска
-
№АртикулНазвание
-
12411534 HARNESS, MAIN WIRE, 7F (INCL. 2-9)HARNESS, MAIN WIRE, 7F (INCL. 2-9)
-
24010948 RELAY, MICRO, SEALEDRELAY, MICRO, SEALED
-
32410692 BREAKER, CIRCUIT, 10AMPBREAKER, CIRCUIT, 10AMP
-
42434017 FUSE, PARK, 20AMPFUSE, PARK, 20AMP
-
42434015 FUSE, MAIN, 30AMPFUSE, MAIN, 30AMP
-
47173525 DECAL, FUSE BOX, 4SDECAL, FUSE BOX, 4S
-
44010948 RELAY, MICRO, SEALEDRELAY, MICRO, SEALED
-
44012003 COVER, FUSEBOX W/DECALCOVER, FUSEBOX W/DECAL
-
52202147 KIT, FUSIBLE LINK, .5MMKIT, FUSIBLE LINK, .5MM
-
52202607 KIT, FUSIBLE LINK, .8MMKIT, FUSIBLE LINK, .8MM
-
52202670 KIT, FUSIBLE LINK, 1.0MMKIT, FUSIBLE LINK, 1.0MM
-
64020062 HOUSING, RECEPTACLEHOUSING, RECEPTACLE
-
74020063 HOUSINGHOUSING
-
82203920 KIT, HARNESS, ALTERNATORKIT, HARNESS, ALTERNATOR
-
92411035 DIODE, 6 AMPDIODE, 6 AMP
-
102411535 HARNESS, HOODHARNESS, HOOD
-
114020052 COUPLINGCOUPLING
-
124011149 BATTERYBATTERY
-
137080138 CABLE TIECABLE TIE
-
142411568 HARNESS, JUMPER, TAILLIGHTHARNESS, JUMPER, TAILLIGHT
