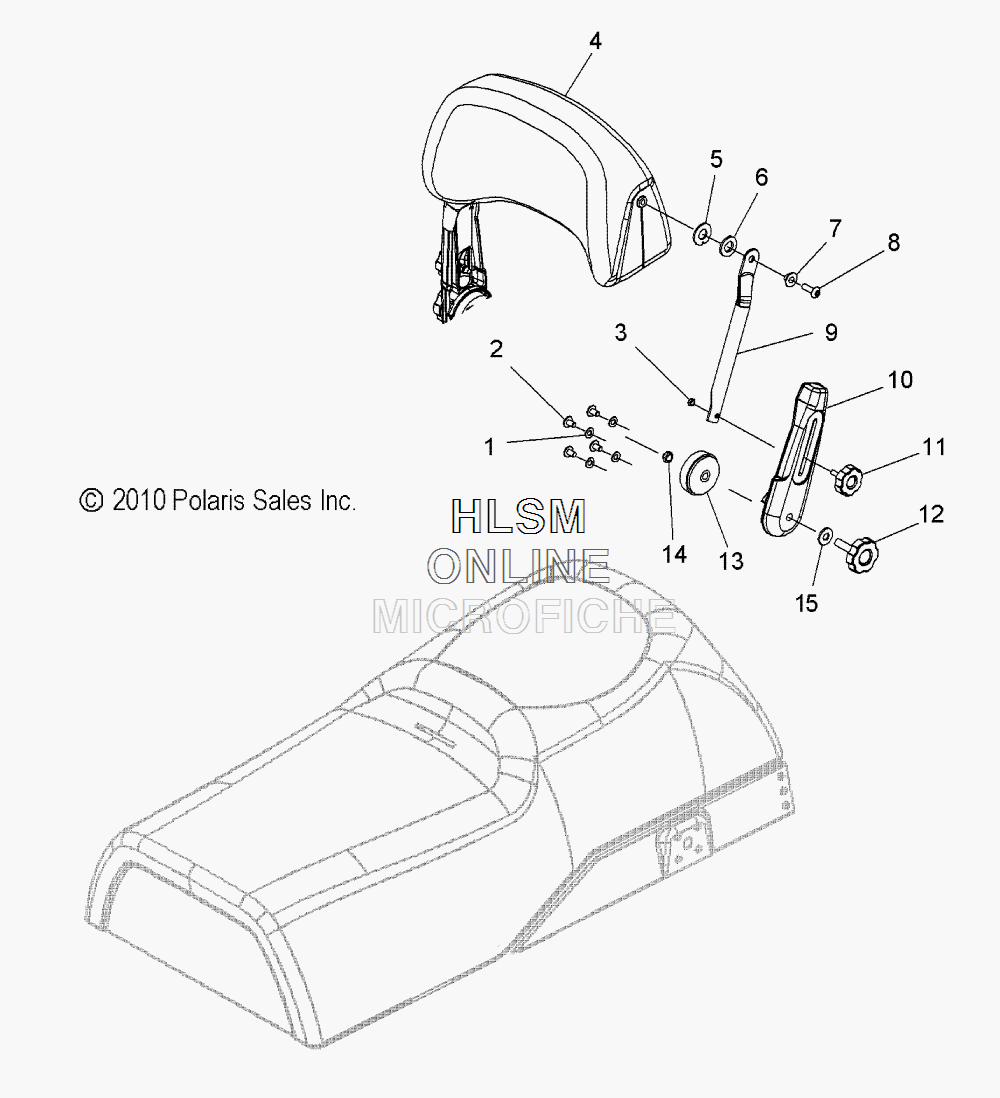

BACKREST ASSEMBLY для Polaris WIDETRAK LX INTL [S12SU4BEL] - 2012 года выпуска
-
№АртикулНазвание
-
17552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
27518798 SCREWSCREW
-
37542324 NUT, NYLOKNUT, NYLOK
-
42684999 ASM., BACKRESTASM., BACKREST
-
42684070 ASM., SEAT BACK COVERASM., SEAT BACK COVER
-
55250122 PLATE, BACKER W/NOTCHPLATE, BACKER W/NOTCH
-
65810291 SPACER, RUBBERSPACER, RUBBER
-
75136584 SPACER, BACKREST, PIVOTSPACER, BACKREST, PIVOT
-
87510004 SCREWSCREW
-
95250118-458 ARM, ADJUSTER, BLACKARM, ADJUSTER, BLACK
-
105436635 MOUNT, ADJUSTER ARMMOUNT, ADJUSTER ARM
-
117081484 KNOB, LARGEKNOB, LARGE
-
127081344 KNOB, LARGEKNOB, LARGE
-
135135462 CYLINDER, RATCHETCYLINDER, RATCHET
-
147547376 NUT, JAMNUT, JAM
-
155813629 SPACER, RUBBERSPACER, RUBBER
