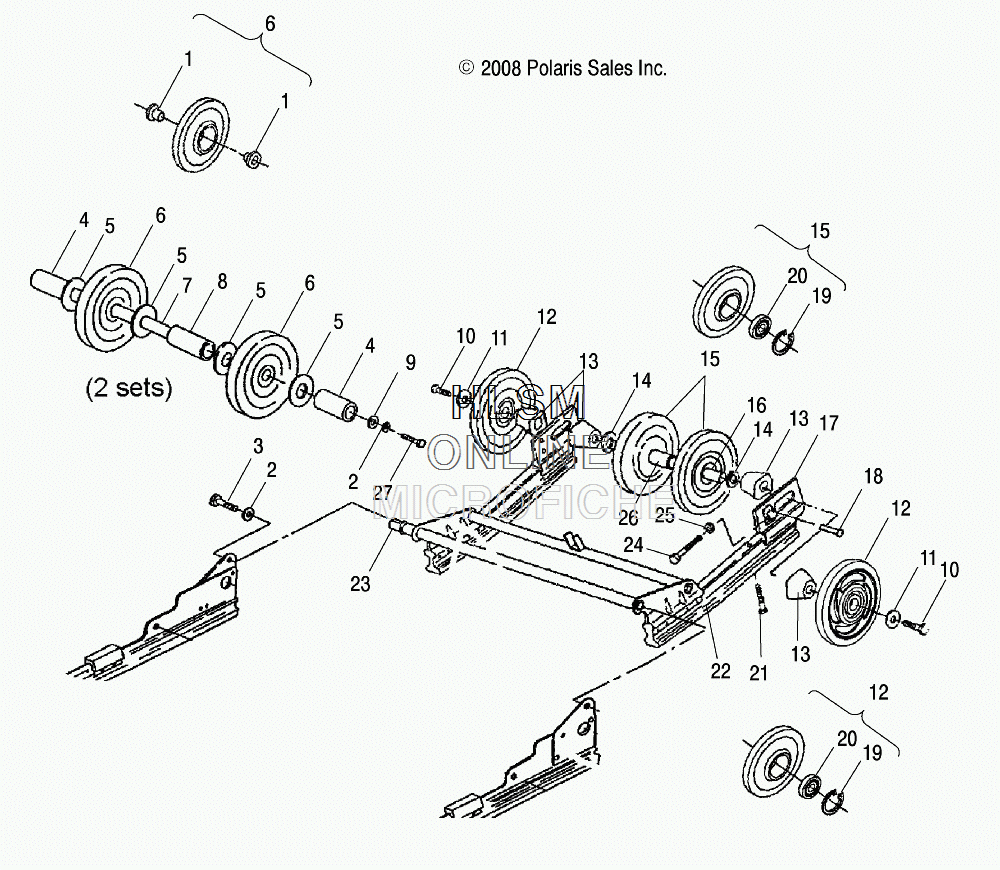

SUSPENSION - EXTENSION для Polaris WIDETRAK LX INTL [S12SU4BEL] - 2012 года выпуска
-
№АртикулНазвание
-
15430723 INSERT, WHEEL, SMALLINSERT, WHEEL, SMALL
-
15431420 INSERT, WHEEL, LARGEINSERT, WHEEL, LARGE
-
27552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
37518005 SCREWSCREW
-
45333019-067 SPACERSPACER
-
57555726 WASHER, FLATWASHER, FLAT
-
61543021 ASM., WHEEL, CARRIER (INCL. INSERTS)ASM., WHEEL, CARRIER (INCL. INSERTS)
-
75020836 SHAFT, MOUNTING, CARRIERSHAFT, MOUNTING, CARRIER
-
85333020-067 SPACERSPACER
-
97555893 WASHER, FLATWASHER, FLAT
-
107517731 BOLTBOLT
-
117556130 WASHER, BELLEWASHER, BELLE
-
121594083-244 ASM., IDLER WHEEL, SCROLLED, SILVERASM., IDLER WHEEL, SCROLLED, SILVER
-
135432535 SPACER, IDLERSPACER, IDLER
-
147555918 BUSHINGBUSHING
-
151594087 ASM., WHEELASM., WHEEL
-
165020879 SHAFT, IDLERSHAFT, IDLER
-
175130530 BLOCK, IDLER BOLT ADJUSTBLOCK, IDLER BOLT ADJUST
-
187621501 RIVETRIVET
-
197710444 RING, RETAININGRING, RETAINING
-
203514384 BEARINGBEARING
-
217512225 SCREWSCREW
-
221541133 ASM., RAIL, SWING ARM, RIVETED (INCL. 17,18)ASM., RAIL, SWING ARM, RIVETED (INCL. 17,18)
-
225521452 HI-FAX, WHITEHI-FAX, WHITE
-
235020725 SHAFT, PIVOT ARMSHAFT, PIVOT ARM
-
247515459 SCREWSCREW
-
257542404 NUTNUT
-
265333523 SPACER, IDLERSPACER, IDLER
-
277517435 SCREWSCREW
