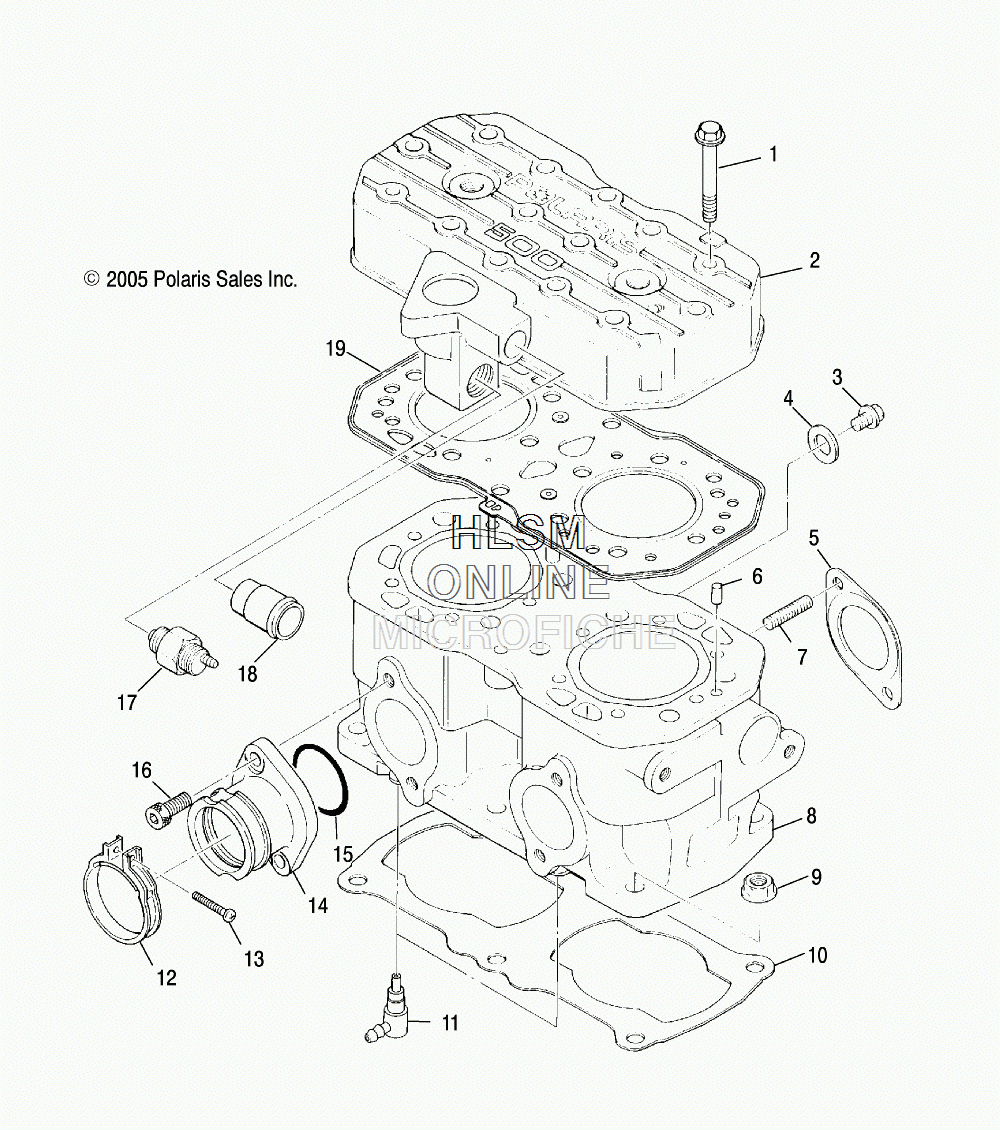

CYLINDER ASSEMBLY для Polaris WIDETRAK LX INTL [S12SU4BEL] - 2012 года выпуска
-
№АртикулНазвание
-
13085582 BOLT, FLANGEBOLT, FLANGE
-
23085584 ASM., HEAD, CYLINDER (INCL. 18)ASM., HEAD, CYLINDER (INCL. 18)
-
33084491 PLUGPLUG
-
43084492 GASKET, ALUMINUMGASKET, ALUMINUM
-
53086995 ASM., GASKET, EXHAUSTASM., GASKET, EXHAUST
-
63086838 PIN, DOWELPIN, DOWEL
-
73085326 STUDSTUD
-
83085583 ASM., CYLINDER (INCL. 7)ASM., CYLINDER (INCL. 7)
-
93082911 NUT, FLANGENUT, FLANGE
-
103084768 GASKET, CYLINDERGASKET, CYLINDER
-
113086785 ASM., VALVE, CHECKASM., VALVE, CHECK
-
123090180 ASM., BAND, ADAPTOR (INCL. 13)ASM., BAND, ADAPTOR (INCL. 13)
-
133081497 SCREW, PAN HEADSCREW, PAN HEAD
-
143085044 ASM., ADAPTOR (INCL. 15)ASM., ADAPTOR (INCL. 15)
-
153085619 O-RINGO-RING
-
163081330 BOLT, SOCKET HEADBOLT, SOCKET HEAD
-
173084284 ASM., SWITCH, THERMO (105 DEGREE C)ASM., SWITCH, THERMO (105 DEGREE C)
-
183083452 ASM., PIPE, WATERASM., PIPE, WATER
-
193085585 ASM., GASKET 2, HEADASM., GASKET 2, HEAD
