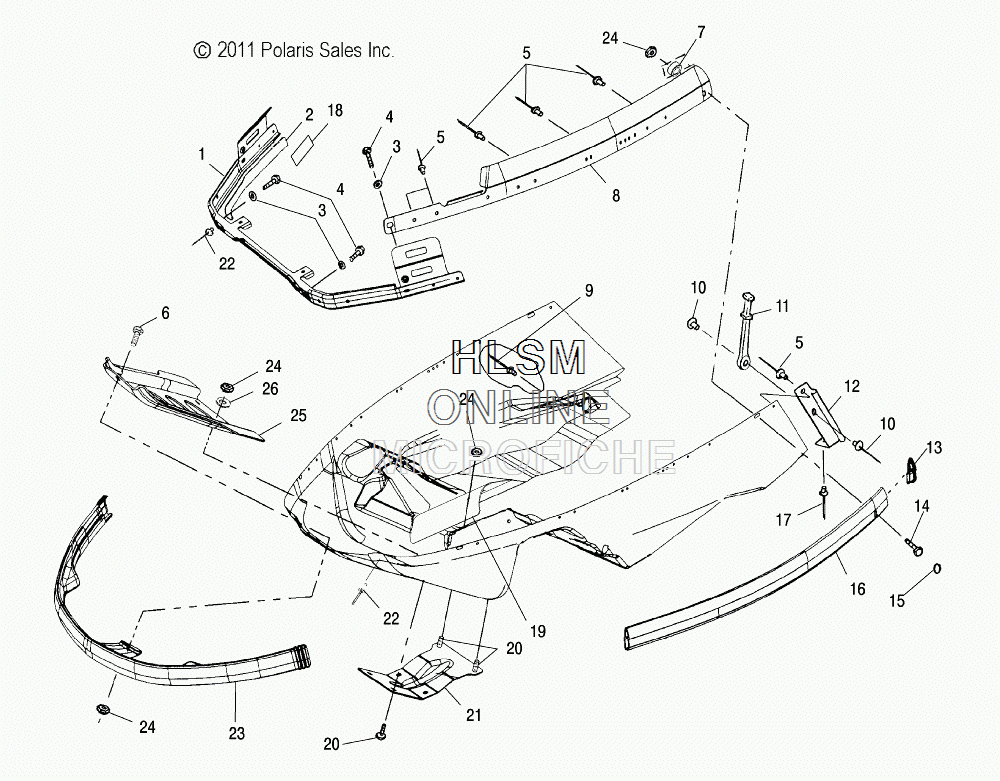

NOSEPAN/BUMPER для Polaris WIDETRAK LX INTL [S12SU4BEL] - 2012 года выпуска
-
№АртикулНазвание
-
11012783-067 BRACE, HINGEBRACE, HINGE
-
25811747 FOIL, TAPEFOIL, TAPE
-
37552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
47512232 SCREWSCREW
-
57621402 RIVETRIVET
-
67515175 SCREWSCREW
-
77555932 WASHERWASHER
-
85250874 GUIDE, HOOD, LEFT HANDGUIDE, HOOD, LEFT HAND
-
85250875 GUIDE, HOOD, RIGHT HANDGUIDE, HOOD, RIGHT HAND
-
97621472 RIVETRIVET
-
101015421 ASM., RIVET/RETAINERASM., RIVET/RETAINER
-
115410370 STRAP, HOOD LATCHSTRAP, HOOD LATCH
-
125220522-458 BRACE, PAN, LEFT HAND, BLACKBRACE, PAN, LEFT HAND, BLACK
-
125220523-458 BRACE, PAN, RIGHT HAND, BLACKBRACE, PAN, RIGHT HAND, BLACK
-
135432887 CAP, BUMPER, LEFT HANDCAP, BUMPER, LEFT HAND
-
135432888 CAP, BUMPER, RIGHT HANDCAP, BUMPER, RIGHT HAND
-
147512290 SCREWSCREW
-
157080416 PLUG, HOLEPLUG, HOLE
-
165243818-458 EXTRUSION, BUMPER, FORMED, LEFT HAND, BLACKEXTRUSION, BUMPER, FORMED, LEFT HAND, BLACK
-
165243461-458 EXTRUSION, BUMPER, FORMED, RIGHT HAND, BLACKEXTRUSION, BUMPER, FORMED, RIGHT HAND, BLACK
-
177661637 RIVETRIVET
-
185810949 FOIL, TAPEFOIL, TAPE
-
195243287 SHIELD, SHOCK TOWERSHIELD, SHOCK TOWER
-
207512193 BOLT, CARRIAGEBOLT, CARRIAGE
-
215242575-067 BRACE, PAN, LOWERBRACE, PAN, LOWER
-
227621463 RIVETRIVET
-
235432891-070 BUMPER, FRONTBUMPER, FRONT
-
247542122 NUT, NYLOKNUT, NYLOK
-
255243073 BRACE, PAN, UPPERBRACE, PAN, UPPER
-
267558301 WASHER, FLATWASHER, FLAT
