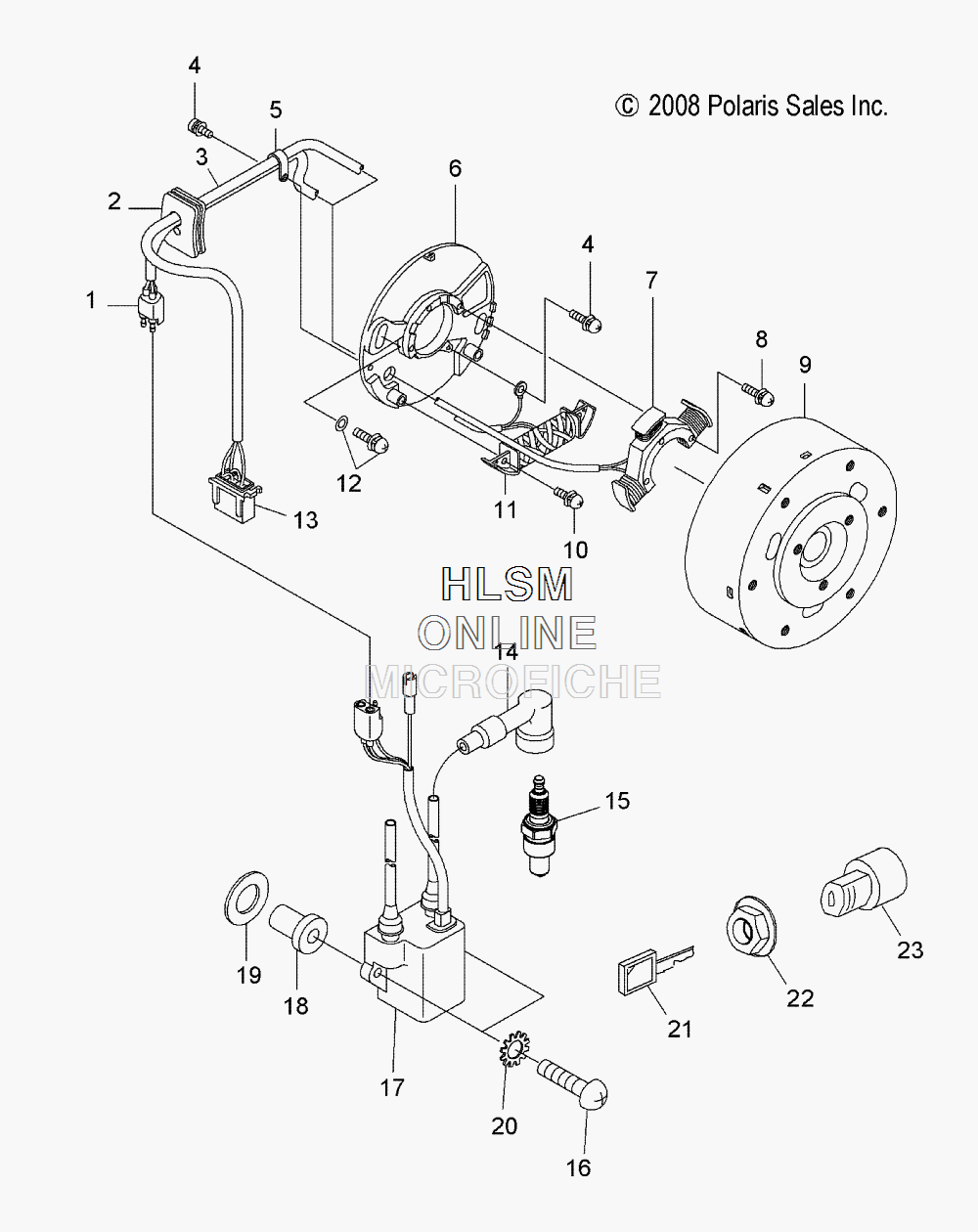

ELECTRICAL - IGNITION SYSTEM для Polaris WIDETRAK LX INTL [S12SU4BEL] - 2012 года выпуска
-
№АртикулНазвание
-
13083909 COUPLER, 3PCOUPLER, 3P
-
23082969 GROMMETGROMMET
-
33087007 HARNESS, WIRE (INCL. 2)HARNESS, WIRE (INCL. 2)
-
43081260 ASM., SCREW AND WASHERASM., SCREW AND WASHER
-
53081296 CLAMPCLAMP
-
63087262 MAGNETOMAGNETO
-
63087004 ASM., PLATE (INCL. 1-8,10,11,13)ASM., PLATE (INCL. 1-8,10,11,13)
-
63083987 PLATEPLATE
-
73083991 STATOR 1STATOR 1
-
83082365 ASM., SCREW AND WASHERASM., SCREW AND WASHER
-
93087005 ASM., FLYWHEELASM., FLYWHEEL
-
103083423 ASM., SCREW AND WASHERASM., SCREW AND WASHER
-
113083984 COIL, EXCITERCOIL, EXCITER
-
123082175 ASM., SCREW AND WASHERASM., SCREW AND WASHER
-
133081513 COUPLER, 6P, MALECOUPLER, 6P, MALE
-
144020129 CAP, SPARK PLUGCAP, SPARK PLUG
-
153070166 PLUG, SPARK, RN3C CHAMPPLUG, SPARK, RN3C CHAMP
-
167512222 SCREWSCREW
-
173087006 ASM., UNIT, COIL, IGNITIONASM., UNIT, COIL, IGNITION
-
187541923 NUT, WELL, NITRILENUT, WELL, NITRILE
-
197555843 WASHER, FLATWASHER, FLAT
-
207552604 WASHER, EXTERNAL TOOTHWASHER, EXTERNAL TOOTH
-
215410611 CAP W/KEYCAP W/KEY
-
227547035 NUT, IGNITIONNUT, IGNITION
-
232200358 KIT, IGNITION SWITCHKIT, IGNITION SWITCH
