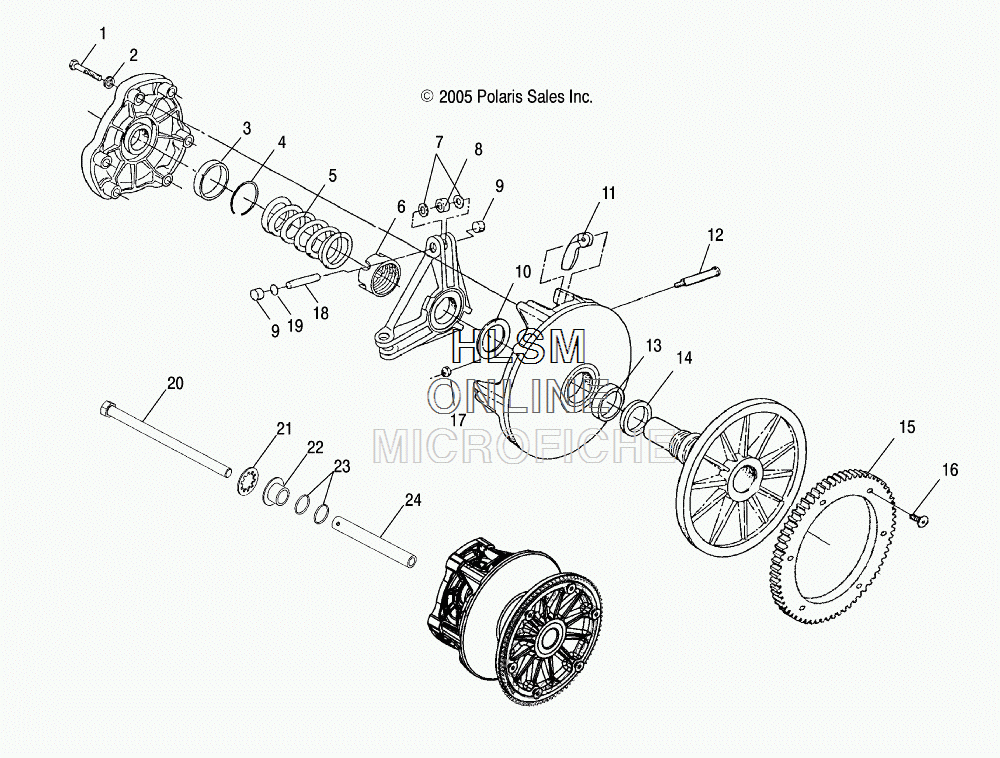

CLUTCH - PRIMARY для Polaris WIDETRAK LX INTL [S12SU4BEL] - 2012 года выпуска
-
№АртикулНазвание
-
42200386 KIT, CLUTCH UPDATE (INCL. 7-9,12,18,19)KIT, CLUTCH UPDATE (INCL. 7-9,12,18,19)
-
161322838 ASM., DRIVE CLUTCH, BASIC ES (INCL. 1,2,4,6-8,12-18)ASM., DRIVE CLUTCH, BASIC ES (INCL. 1,2,4,6-8,12-18)
-
17518349 SCREWSCREW
-
27552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
33576516 BEARING, COVERBEARING, COVER
-
47710417 RING, RETAINING, COVERRING, RETAINING, COVER
-
57043121 SPRING, DRIVE CLUTCH, 100/340SPRING, DRIVE CLUTCH, 100/340
-
65020425 NUT, JAMNUT, JAM
-
75430945 WASHER, MULTILUBEWASHER, MULTILUBE
-
81321622 ASM., ROLLER AND BUSHINGASM., ROLLER AND BUSHING
-
95430445 BUTTON, GUIDEBUTTON, GUIDE
-
105210754 SPACER, .050SPACER, .050
-
105210753 SPACER, .032SPACER, .032
-
105242981 SPACER, .025SPACER, .025
-
105210752 SPACER, .020SPACER, .020
-
111321586 ASM., WEIGHT/BUSHING, 10-62ASM., WEIGHT/BUSHING, 10-62
-
127515105 PIN, WEIGHTPIN, WEIGHT
-
133576502 BEARING, SLEEVEBEARING, SLEEVE
-
145010188 INSERT, MOVEABLEINSERT, MOVEABLE
-
152877485 KIT, RING GEAR, LIGHTWEIGHTKIT, RING GEAR, LIGHTWEIGHT
-
167515351 SCREWSCREW
-
177541906 NUT, FLEXLOCNUT, FLEXLOC
-
185133079 PIN, ROLLERPIN, ROLLER
-
192200387 KIT, DRIVE CLUTCH SHIMKIT, DRIVE CLUTCH SHIM
-
207512565 SCREWSCREW
-
217575202 WASHER, LOCKWASHER, LOCK
-
225010287 WASHER, CLUTCH RETAINERWASHER, CLUTCH RETAINER
-
235410507 O-RING, CLUTCH BOLTO-RING, CLUTCH BOLT
-
245020513 SPACER, CLUTCH BOLTSPACER, CLUTCH BOLT
