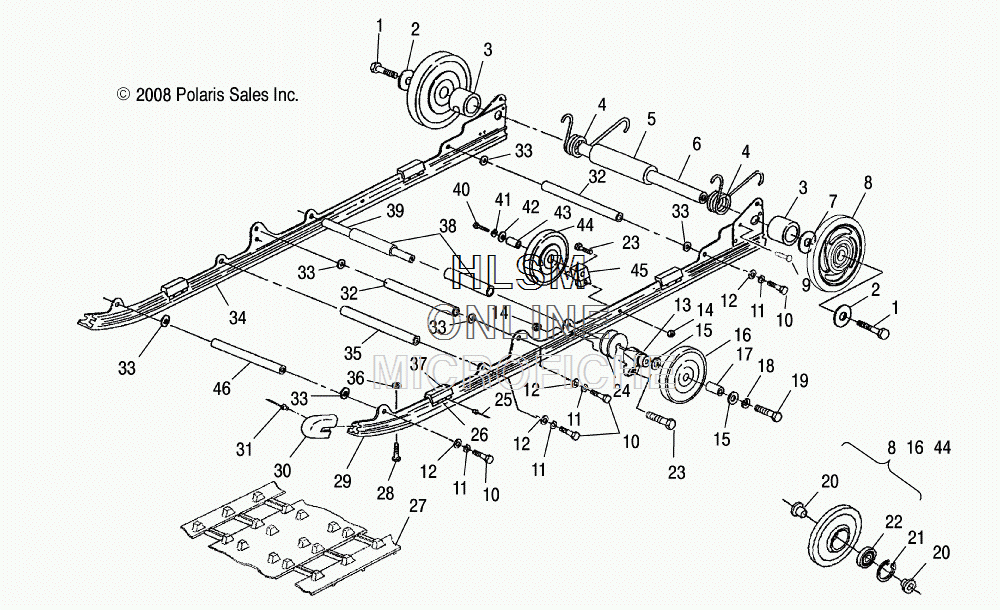

SUSPENSION - REAR для Polaris WIDETRAK LX INTL [S12SU4BEL] - 2012 года выпуска
-
№АртикулНазвание
-
17517731 BOLTBOLT
-
27556130 WASHER, BELLEWASHER, BELLE
-
35330171-067 TUBE, SPACER OUTSIDE CENTERTUBE, SPACER OUTSIDE CENTER
-
47041231-067 SPRING, EXTENSION, REARSPRING, EXTENSION, REAR
-
55333014-067 SPACERSPACER
-
65020726 SHAFT, IDLERSHAFT, IDLER
-
77556301 BUSHINGBUSHING
-
81590276-070 ASM., IDLER WHEEL, SCROLLED, BLACKASM., IDLER WHEEL, SCROLLED, BLACK
-
97621508 RIVETRIVET
-
107518005 SCREWSCREW
-
117552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
127555806 WASHER, FLATWASHER, FLAT
-
135630399 SPACER, BOGIE WHEELSPACER, BOGIE WHEEL
-
147542439 NUT, NYLOKNUT, NYLOK
-
157555852 WASHER, FLATWASHER, FLAT
-
161590356-070 ASM., WHEEL, SCROLL, BLACK (INCL. 20-22)ASM., WHEEL, SCROLL, BLACK (INCL. 20-22)
-
175333116 SPACERSPACER
-
187553101 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
197517918 BOLTBOLT
-
205431531 INSERT, WHEEL (2 PER WHEEL)INSERT, WHEEL (2 PER WHEEL)
-
217718407 RING, RETAINING (1 PER WHEEL)RING, RETAINING (1 PER WHEEL)
-
223514303 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
237512404 BOLTBOLT
-
245431366 ROLLER, SPRINGROLLER, SPRING
-
257621476 RIVETRIVET
-
265222629 ANGLE, BUMPER REINFORCEMENTANGLE, BUMPER REINFORCEMENT
-
275411682 TRACKTRACK
-
275241473 CLIP, SLIDECLIP, SLIDE
-
287512227 SCREWSCREW
-
291540751 ASM., RAIL, LEFT HAND (INCL. 26,30,37)ASM., RAIL, LEFT HAND (INCL. 26,30,37)
-
295521452 HI-FAX, WHITEHI-FAX, WHITE
-
305430627 COVER, RAIL TIPCOVER, RAIL TIP
-
317621435 RIVETRIVET
-
325132239 SHAFT, PIVOTSHAFT, PIVOT
-
337555823 WASHER, FLATWASHER, FLAT
-
341540752 ASM., RAIL, RIGHT HAND (INCL. 26,30,37)ASM., RAIL, RIGHT HAND (INCL. 26,30,37)
-
345521452 HI-FAX, WHITEHI-FAX, WHITE
-
355020720 SHAFT, SPANNERSHAFT, SPANNER
-
367542122 NUT, NYLOKNUT, NYLOK
-
375810554 BUMPER, SUSPENSIONBUMPER, SUSPENSION
-
385333138 SPACERSPACER
-
395020651 SHAFT, REAR SHOCKSHAFT, REAR SHOCK
-
407512659 SCREWSCREW
-
417553201 WASHER, SPLIT LOCKWASHER, SPLIT LOCK
-
427555804 WASHERWASHER
-
435332786 SPACERSPACER
-
441590357 ASM., WHEEL W/INSERT (INCL. 20-22)ASM., WHEEL W/INSERT (INCL. 20-22)
-
455130570 BRACKET, BOGIE WHEELBRACKET, BOGIE WHEEL
-
465132742 SHAFT, PIVOTSHAFT, PIVOT
-
465433977 SLEEVE, PIVOT SHAFTSLEEVE, PIVOT SHAFT
