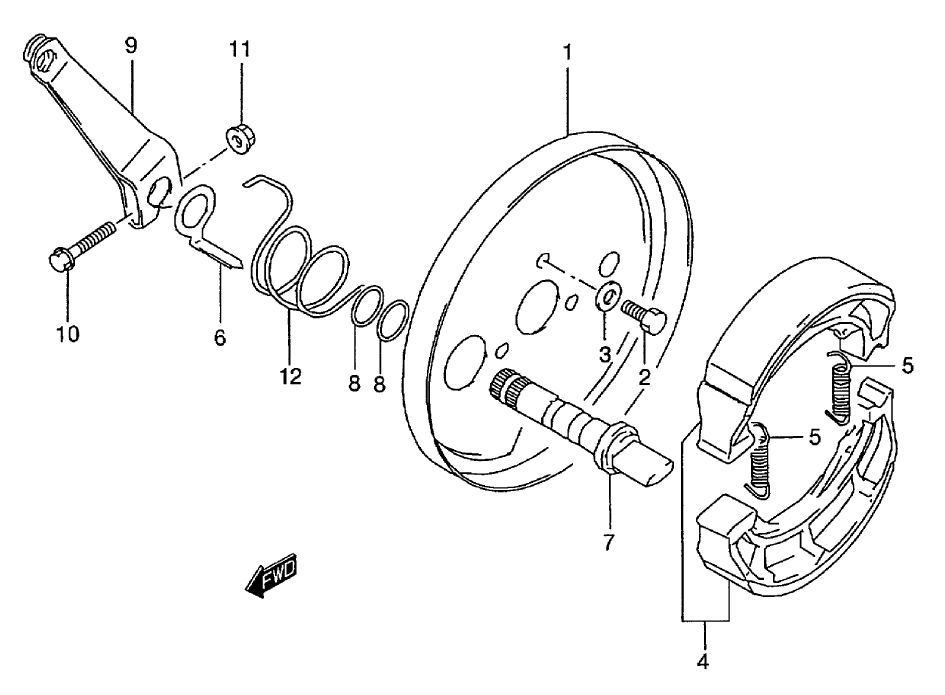

BRAKE - FRONT для Suzuki LT-F160Y QUADRUNNER - 2000 года выпуска
-
№АртикулНазвание
-
154511-02C00 PLATE, FRONT BRAKE RHPLATE, FRONT BRAKE RH
-
154811-02C00 PLATE, FRONT BRAKE LHPLATE, FRONT BRAKE LH
-
209100-06157 BOLT, PLATE (6X8)BOLT, PLATE (6X8)
-
308321-01063 WASHERWASHER
-
454400-02810 SHOE SET, FRONT BRAKESHOE SET, FRONT BRAKE
-
509443-07025 SPRINGSPRING
-
654492-02C00 PLATE, LINING INDICATORPLATE, LINING INDICATOR
-
754441-02C00 CAM, FRONT BRAKECAM, FRONT BRAKE
-
809280-14004 O RING (INTER DIAMETER:13.8, DIAMETER:1.90)O RING (INTER DIAMETER:13.8, DIAMETER:1.90)
-
954451-02C00 LEVER, FRONT BRAKE CAM RHLEVER, FRONT BRAKE CAM RH
-
954461-02C00 LEVER, FRONT BRAKE CAM LHLEVER, FRONT BRAKE CAM LH
-
1009103-06135 BOLT, CAM LEVER (6X32)BOLT, CAM LEVER (6X32)
-
1108316-10063 NUTNUT
-
1254484-02C00 SPRING, CAM LEVER RETURN RHSPRING, CAM LEVER RETURN RH
-
1254494-02C00 SPRING, CAM LEVER RETURN LHSPRING, CAM LEVER RETURN LH
