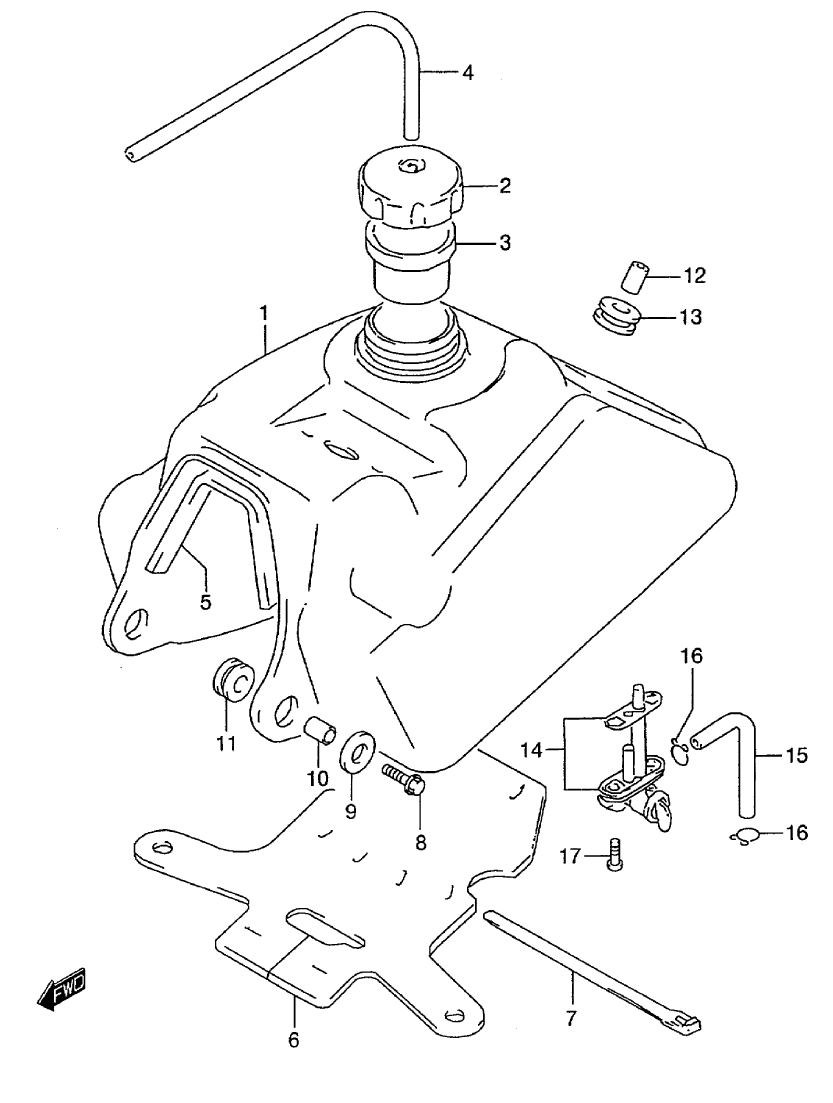

FUEL TANK для Suzuki LT-F160Y QUADRUNNER - 2000 года выпуска
-
№АртикулНазвание
-
144110-02C00 TANK, FUELTANK, FUEL
-
244200-19A01 CAP, FUEL TANKCAP, FUEL TANK
-
344199-19A00 TUBE, INLETTUBE, INLET
-
409352-50823-600 HOSE, BREATHER (LENGTH:600-310)HOSE, BREATHER (LENGTH:600-310)
-
544261-22A00 RUBBER, FRONTRUBBER, FRONT
-
647157-02C00 MUDGUARD, CLEANER INLETMUDGUARD, CLEANER INLET
-
709407-18403 CLAWCLAW
-
809112-08006 BOLT, FRONTBOLT, FRONT
-
909160-08140 WASHERWASHER
-
1009180-080G7 SPACERSPACER
-
1109320-12050 CUSHIONCUSHION
-
1209180-080G7 SPACER, REARSPACER, REAR
-
1309320-12016 CUSHIONCUSHION
-
1444300-22A01 COCK ASSY, FUELCOCK ASSY, FUEL
-
1509352-50823-600 HOSE, FUEL COCK (LENGTH:600->120) (EXCEPT CALIF)HOSE, FUEL COCK (LENGTH:600->120) (EXCEPT CALIF)
-
1509355-50105-600 HOSE, FUEL COCK (LENGTH:600->120) (CALIF ONLY)HOSE, FUEL COCK (LENGTH:600->120) (CALIF ONLY)
-
1609401-08401 CLIP (EXCEPT CALIF)CLIP (EXCEPT CALIF)
-
1609401-09403 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
1702112-36163 SCREWSCREW
